Exploded View

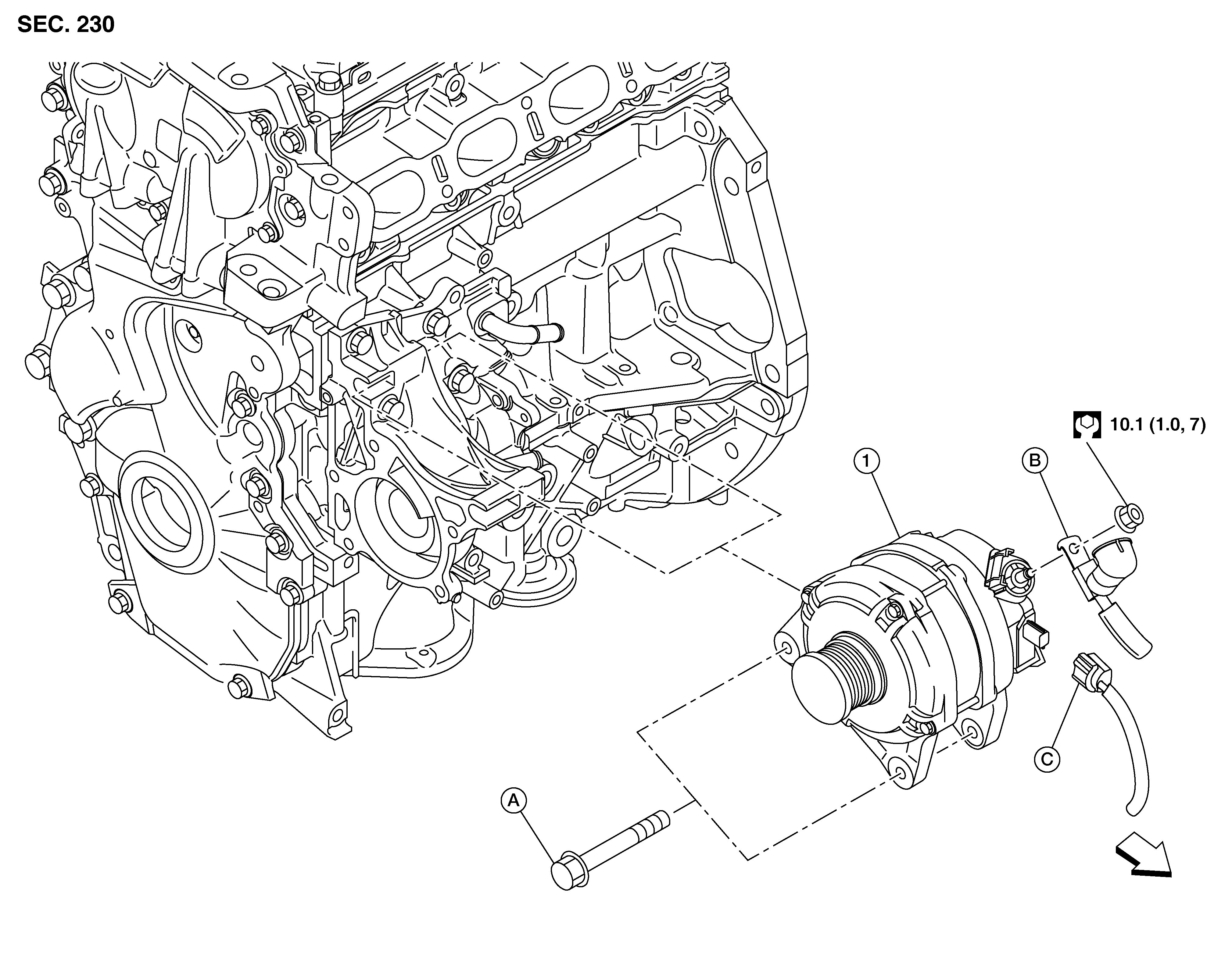

Fig 1: Generator Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Generator	A.	Refer to Removal and Installation. .	B.	"B" terminal harness
C.	Harness connector		Front
