Exploded View

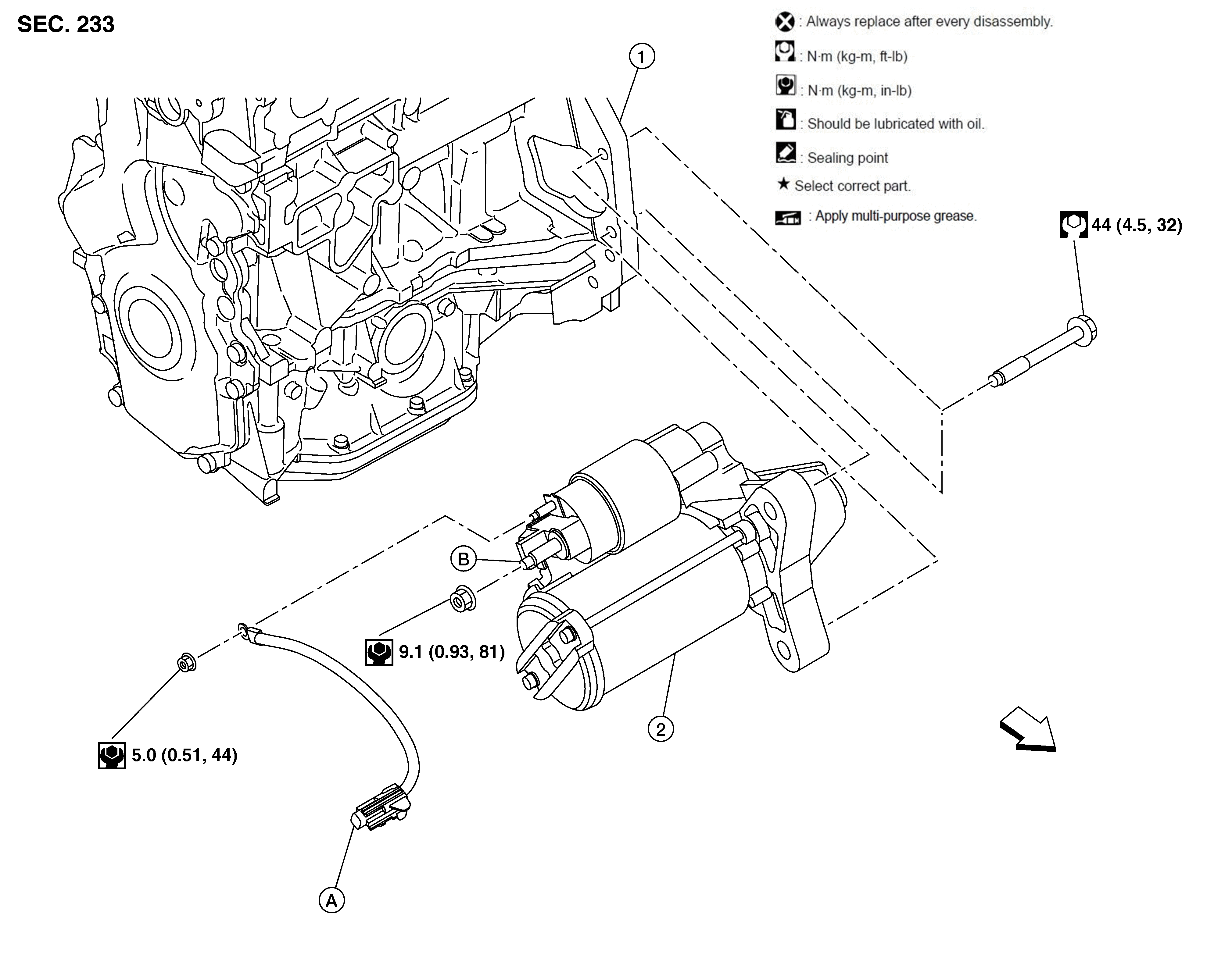

Fig 1: Starter Motor Components With Torque Specifications
GNSAWBIA0409Z-409SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Cylinder block

2.

Starter motor

A.

Terminal "S" harness

B.

Terminal "B"

SYMBOL

Front
