Exploded View

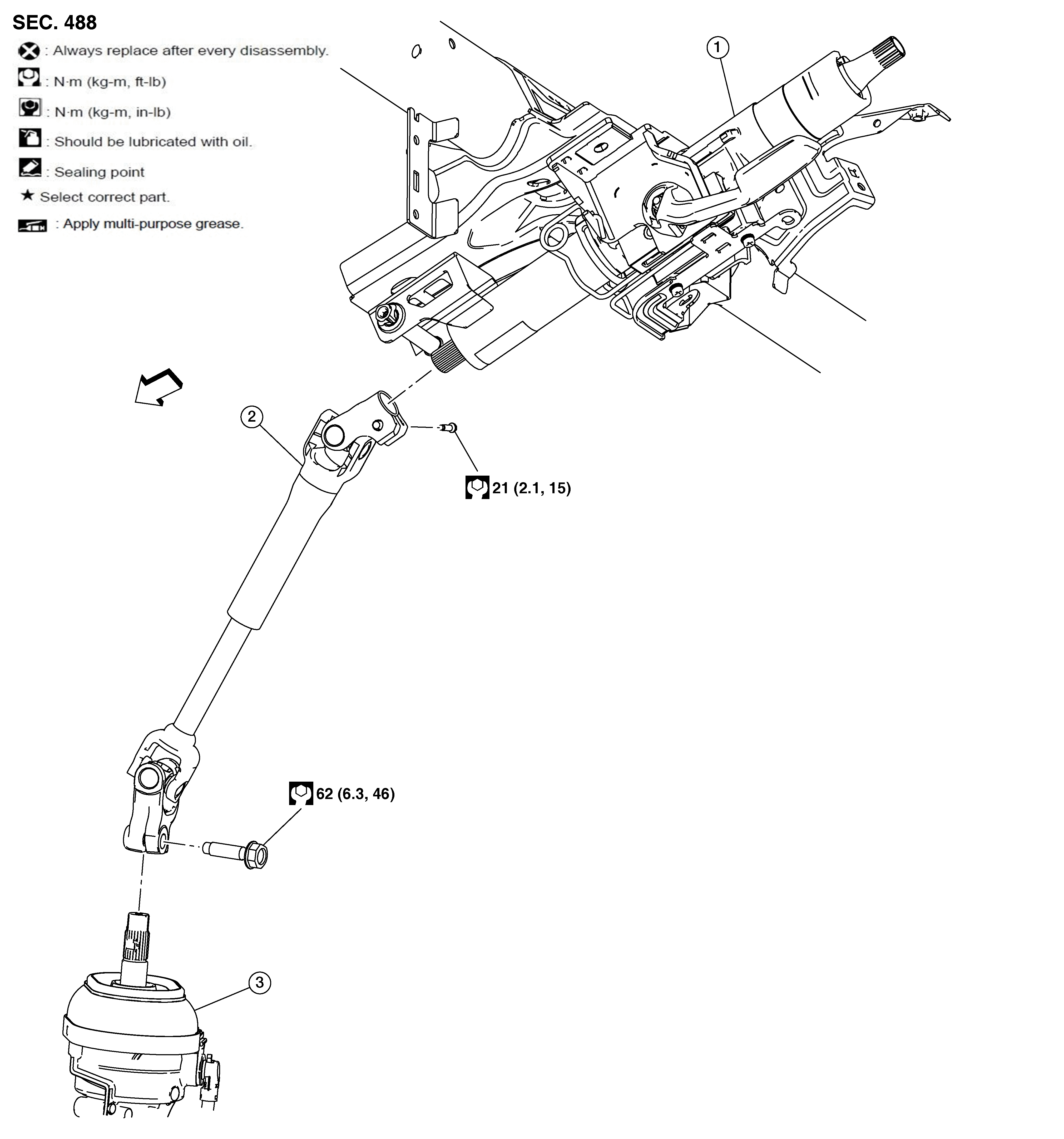

Fig 1: Lower Joint Components With Torque Specification
GNSAWGIA0106Z-106Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

3.

Steering gear

SYMBOL

Front
