Repair and Diagnosis
›
Suspension
›
Front Suspension
›
Removal And Installation
›
Transverse Link
›
Exploded View
›
Exploded View
Exploded View

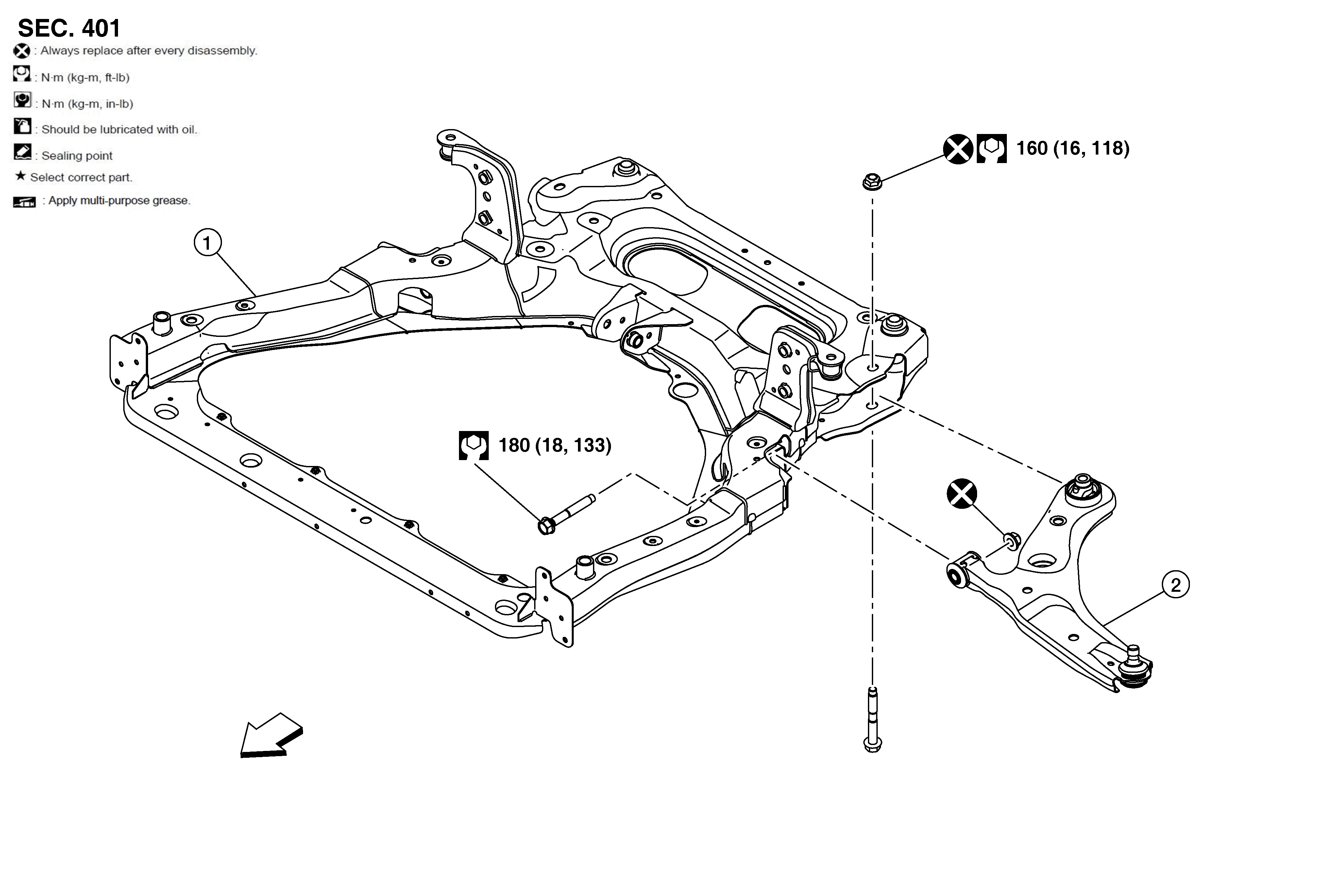

Fig 1: Transverse Link Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front suspension member
2.
Transverse link
Front
Courtesy of NISSAN NORTH AMERICA, INC.
