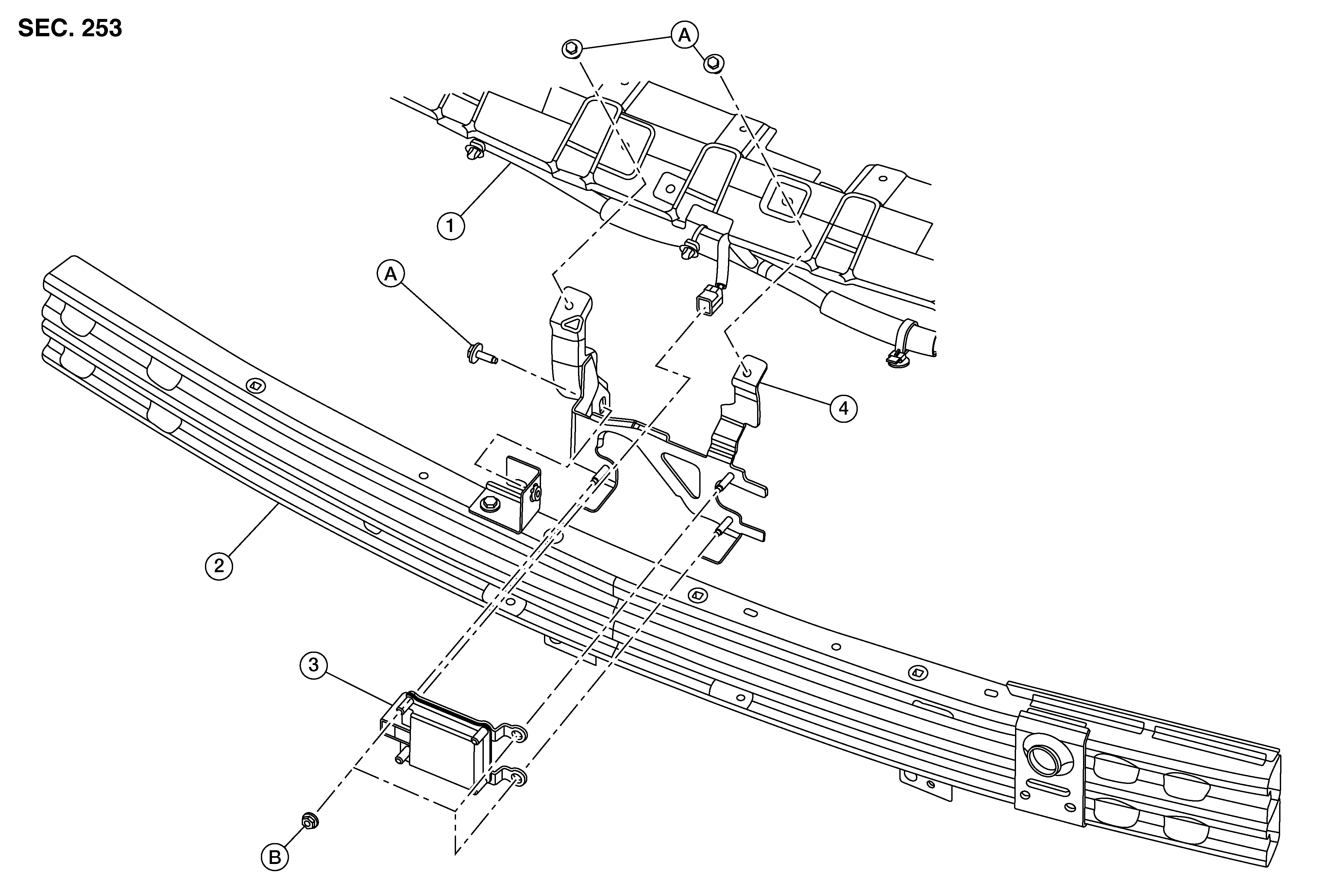

Exploded View

1.

Front bumper fascia retainer

2.

Front bumper reinforcement (upper)

3.

Distance sensor

4.

Distance sensor bracket

A.

Refer to Removal and Installation .

B.

Refer to Removal and Installation .
