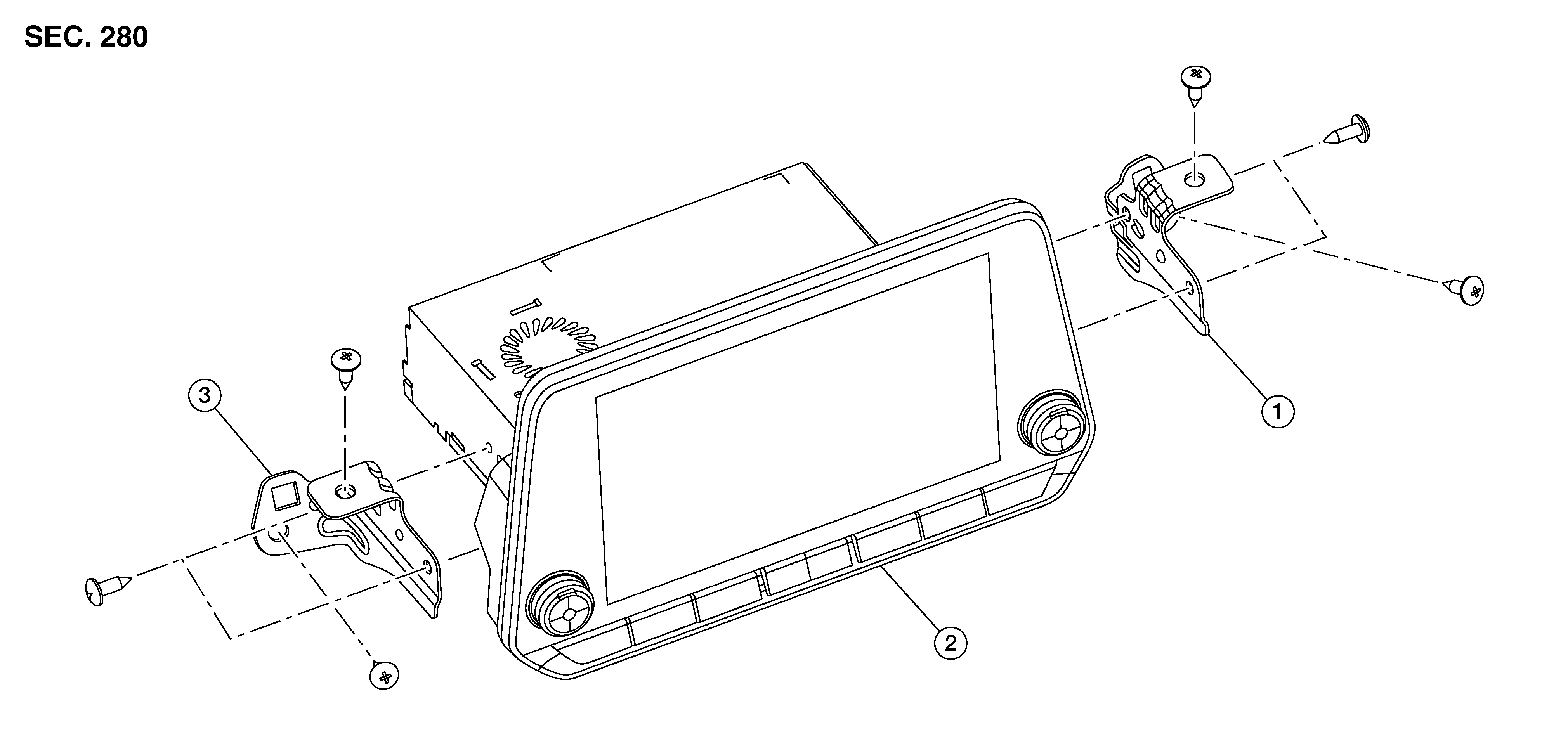

Exploded View

GNSALNIA0485Z-485

Courtesy of NISSAN NORTH AMERICA, INC.

1.

AV control unit bracket (LH)

2.

AV control unit

3.

AV control unit bracket (RH)
