Switch Name And Function

Courtesy of NISSAN NORTH AMERICA, INC.

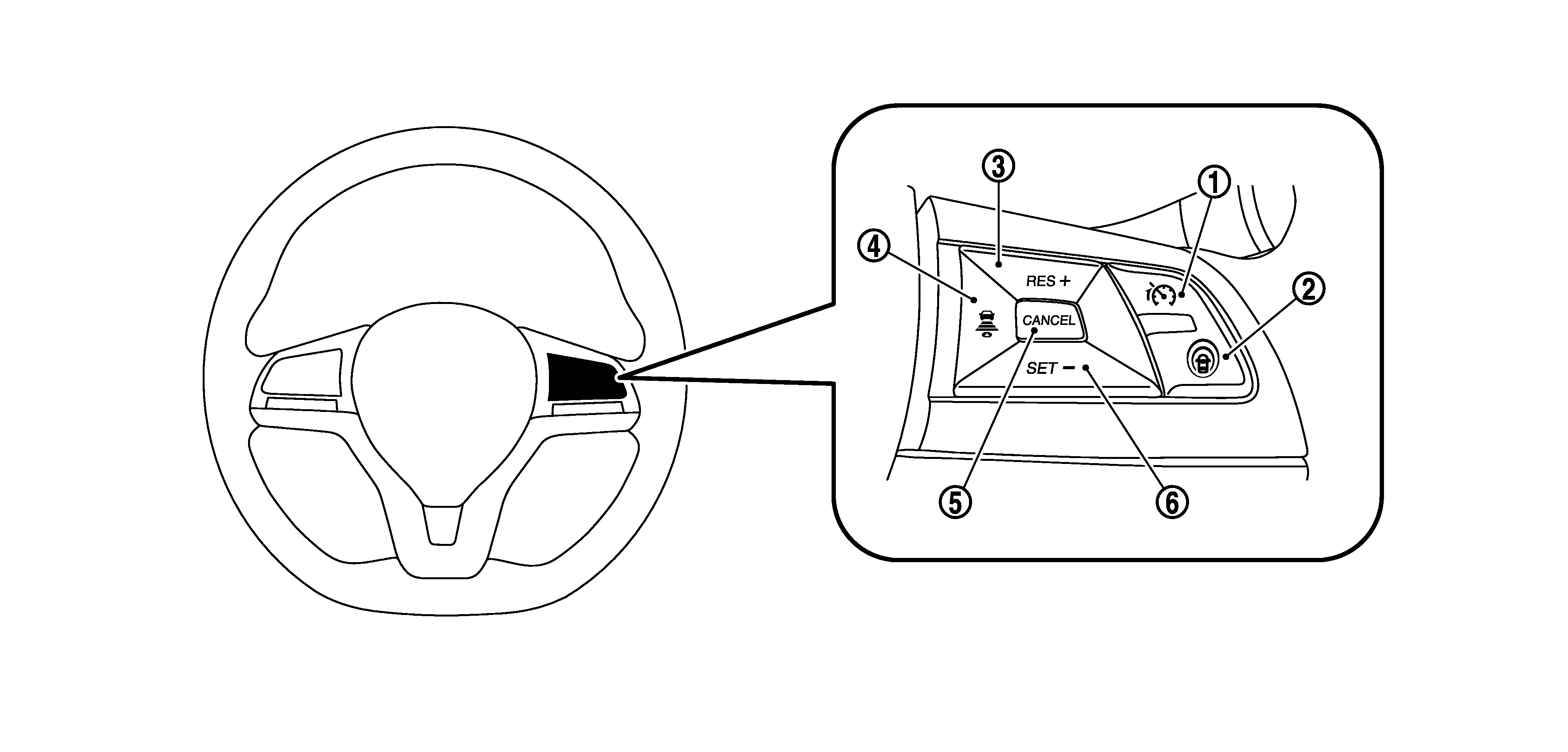

No.	Switch name	Description
	RES+ switch	Resets to the previous set vehicle speed. Pressing this switch raises the set vehicle speed. When push and hold this switch, the set vehicle speed will increase by 5 km/h (5 MPH) increments.
	CANCEL switch	Pressing the switch cancels ICC control
	SET- switch	Can be used to set ICC. Pressing this switch lowers the set vehicle speed. When push and hold this switch, the set vehicle speed will increase by 5 km/h (5 MPH) increments. NOTE: The minimum set speed is 30 km/h (20 MPH)
	ICC MAIN switch	ICC MAIN switch to setting ON/OFF the speed limit control
	DISTANCE switch	Changes the following distance from: Long, Middle, Short
