Exploded View

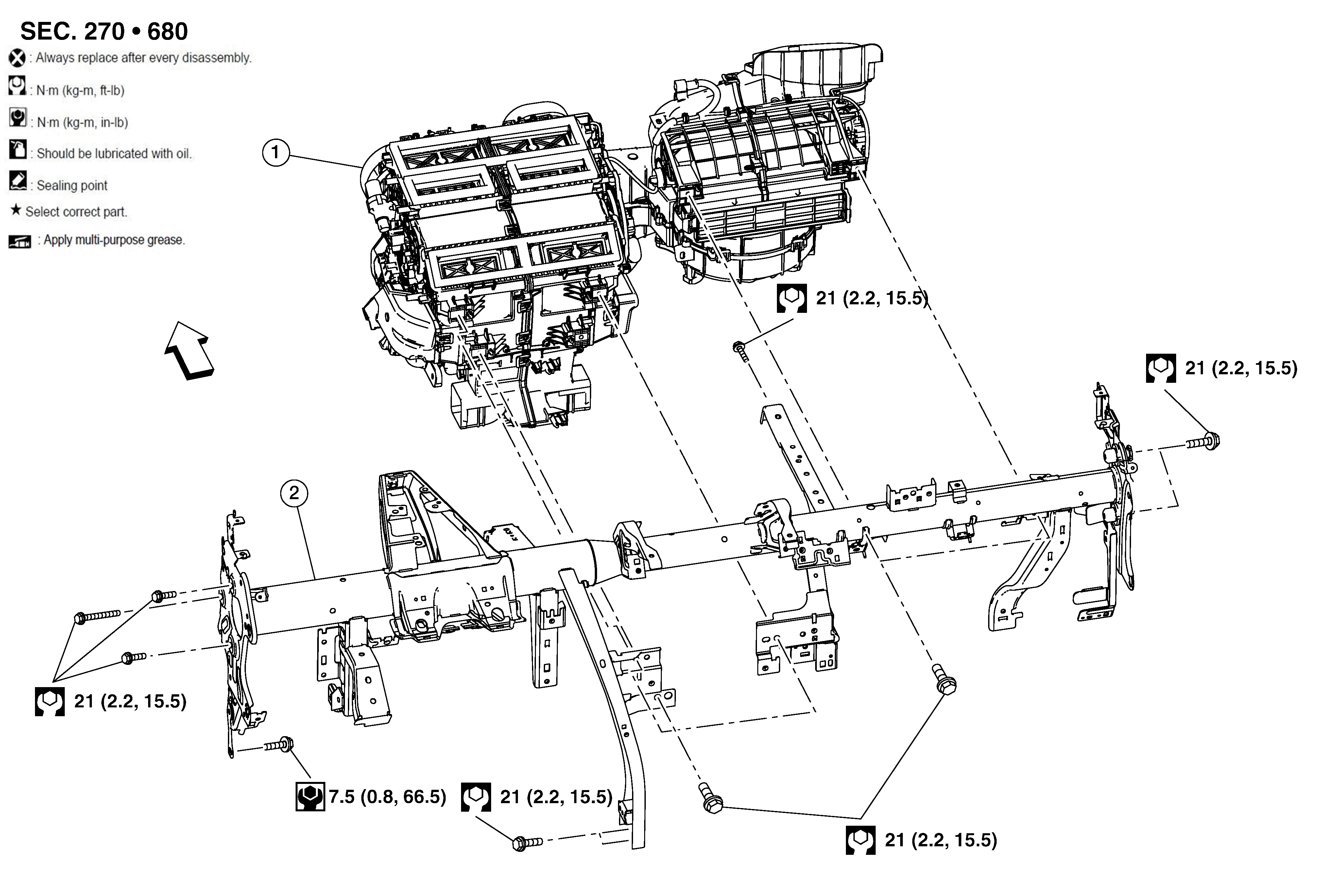

Fig 1: Steering Member Assembly Components With Torque Specifications
GNSALIIA0310Z-310Courtesy of NISSAN NORTH AMERICA, INC.

1.

Heating and cooling unit assembly

2.

Steering member

SYMBOL

Front
