ELECTRIC INTAKE VALVE TIMING CONTROL MODULE : Exploded View

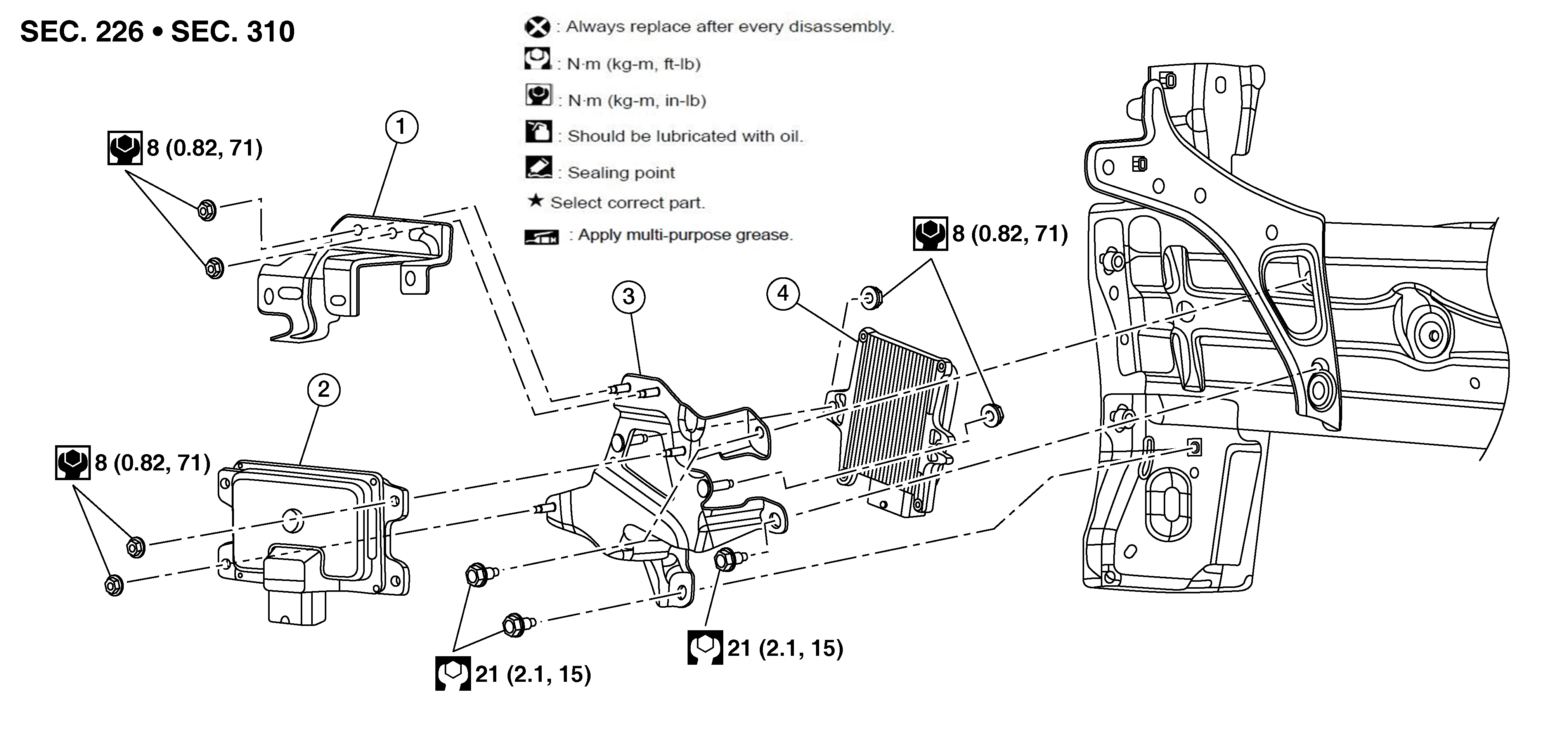

Fig 1: Electric Intake Valve Timing Control Module Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	TCM upper bracket (if equipped)	2.	TCM (if equipped)	3.	TCM bracket
4.	Electric intake valve timing control module
