Removal And Installation
›
Steering Column
›
Exploded View
Exploded View

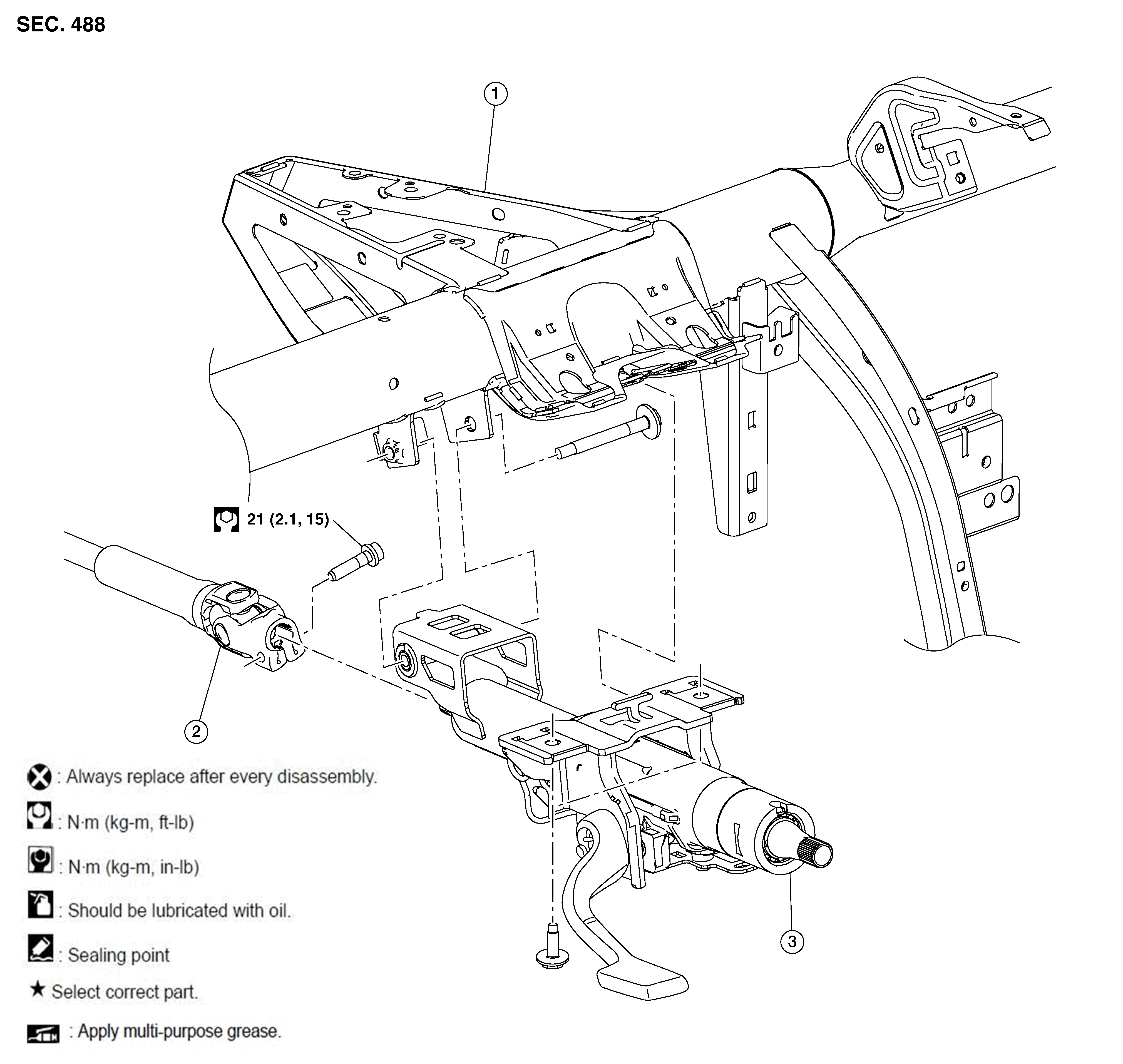

Fig 1: Steering Column Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering member
2.
Lower joint
3.
Steering column
Front
Courtesy of NISSAN NORTH AMERICA, INC.
