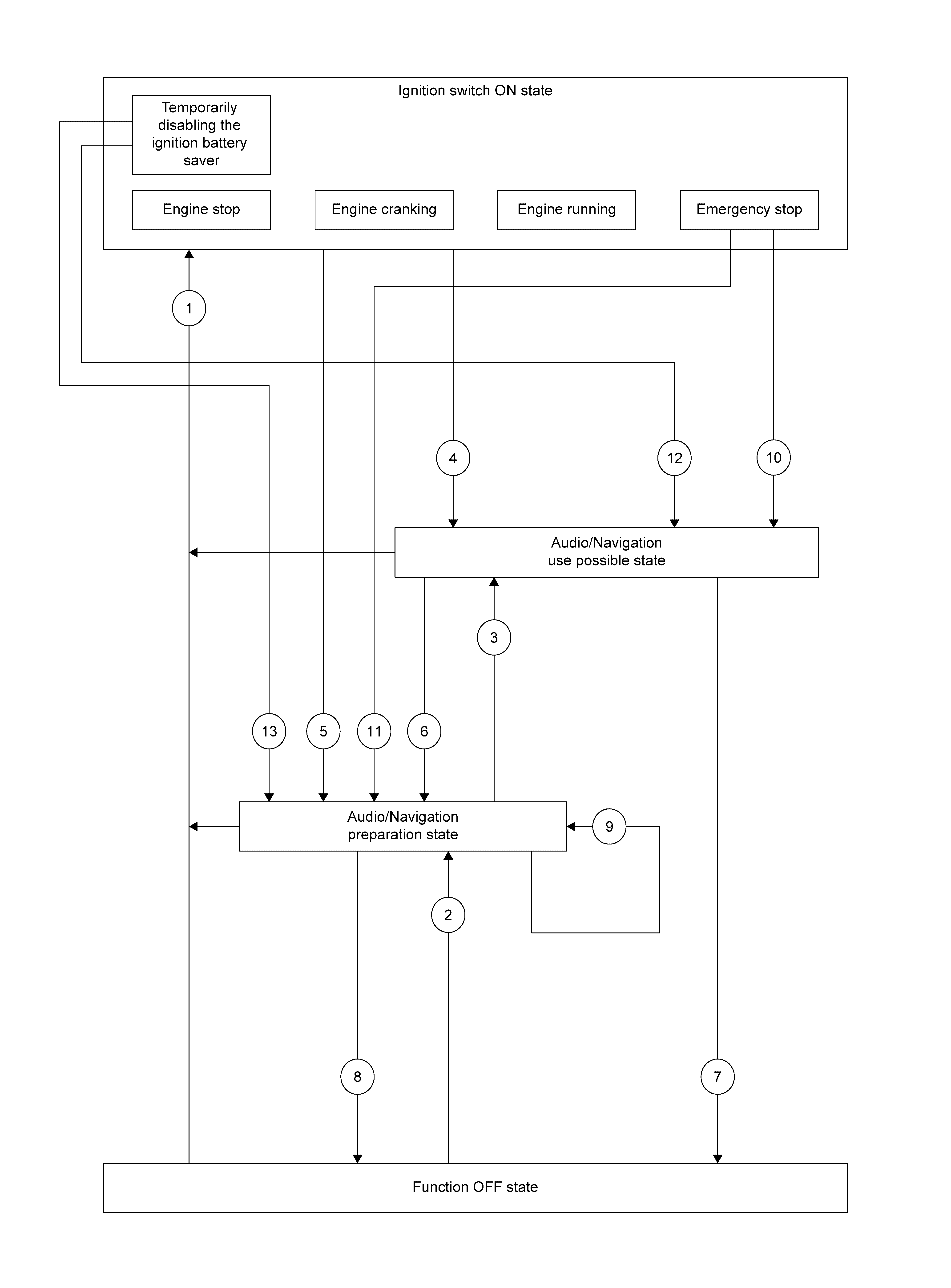

Operation Flow

Courtesy of NISSAN NORTH AMERICA, INC.

Ignition switch ON state

In this status the push-button ignition switch is operated and pressed to ON.

Audio/Navigation use possible state

In this status the audio/navigation, and each switch and unit that is activated by the accessory power supply can be operated.
When 10 minutes pass after conditions are satisfied while audio/navigation are not operated, audio/navigation turns OFF.

Audio/Navigation preparation state

In this status audio/navigation are stopped, but the switches and units other than those for audio/navigation that can operate by using the accessory power supply are available until the accessory power supply turns OFF.
When audio/navigation is operated within 1 minutes after conditions are satisfied, operation time is extended for 10 minutes. Audio/navigation can be operated for a maximum of 30 minutes after the status is satisfied.

Function OFF state

In this status the AUTO ACC function stops and power to the accessories is not supplied.

No.	Function status	Shifting condition	Accessory power supply
	Shifting from "Function OFF state" to "Ignition switch ON state"	Any of the following conditions is satisfied: Ignition switch ON from OFF. Operate push-button ignition switch and start the engine. Operate REMOTE ENGINE START button of Intelligent Key and start the engine.	OFF -> ON
	Shifting from "Audio/Navigation preparation state" to "Ignition switch ON state"		ON
	Shifting from "Audio/Navigation use possible state" to "Ignition switch ON state"		ON
	Shifting from "Function OFF state" to "Audio/Navigation preparation state"	Any of the following conditions is satisfied: Each door is opened or closed. Close all doors and trunk lid, and lock all doors with the Intelligent Key or door request switch. Operate either the door request switch or the unlock button of the Intelligent Key to unlock the door. Operate lighting switch and turn ON the tail lamp.	OFF -> ON
	Shifting from "Audio/Navigation preparation state" to "Audio/Navigation use possible state"	Operate audio/navigation.	ON
	Shifting from "Ignition switch ON state" to "Audio/Navigation use possible state"	Ignition switch OFF from ON while driver door is close with vehicle speed is less than 2 MPH (3 km/h).	ON
	Shifting from "Ignition switch ON state" to "Audio/Navigation preparation state"	Ignition switch OFF from ON while driver door is open with vehicle speed is less than 2 MPH (3 km/h).	ON
	Shifting from "Audio/Navigation use possible state" to "Audio/Navigation preparation state"	Any of the following conditions is satisfied: Driver door is opened. Close all doors and trunk lid, and lock all doors with the Intelligent Key or door request switch. 10 minutes pass from "Audio/Navigation use possible state".	ON
	Shifting from "Audio/Navigation use possible state" to "Function OFF state"	30 minutes pass from "Audio/Navigation use possible state".	ON -> OFF
	Shifting from "Audio/Navigation preparation state" to "Function OFF state"	1 minutes or 3 minutes pass from "Audio/Navigation preparation state".	ON -> OFF
	Shifting from "Audio/Navigation use possible state" time extension (1 minute)	Any of the following conditions is satisfied: Each door is opened or closed. Close all doors and trunk lid, and lock all doors with the Intelligent Key or door request switch. Operate either the door request switch or the unlock button of the Intelligent Key to unlock the door. Operate lighting switch and turn ON the tail lamp. Operate power window switch and open/close the power window.	ON
	Shifting from "Ignition switch ON state" (in status of emergency stop) to "Audio/Navigation use possible state"	Vehicle speed is less than 2 MPH (3 km/h) and except driver door is opened.	ON
	Shifting from "Ignition switch ON state" (in status of emergency stop) to "Audio/Navigation preparation state"	Vehicle speed is less than 2 MPH (3 km/h) and driver door is opened.	ON
	Shifting from "Ignition switch ON state" (in status of temporarily disabling the ignition battery saver) to "Audio/Navigation use possible state"	Press and hold the push-button ignition switch continuously for 3 seconds or more when all of the following conditions are satisfied: Selector lever: Except P or N position (CVT models) Shift lever: Except neutral position (M/T models) Brake pedal: Not depressed Driver door: Close	ON
	Shifting from "Ignition switch ON state" (in status of temporarily disabling the ignition battery save) to "Audio/Navigation preparation state"	Press and hold the push-button ignition switch continuously for 3 seconds or more when all of the following conditions are satisfied: Selector lever: Except P or N position (CVT models) Shift lever: Except neutral position (M/T models) Brake pedal: Not depressed Driver door: Open	ON
