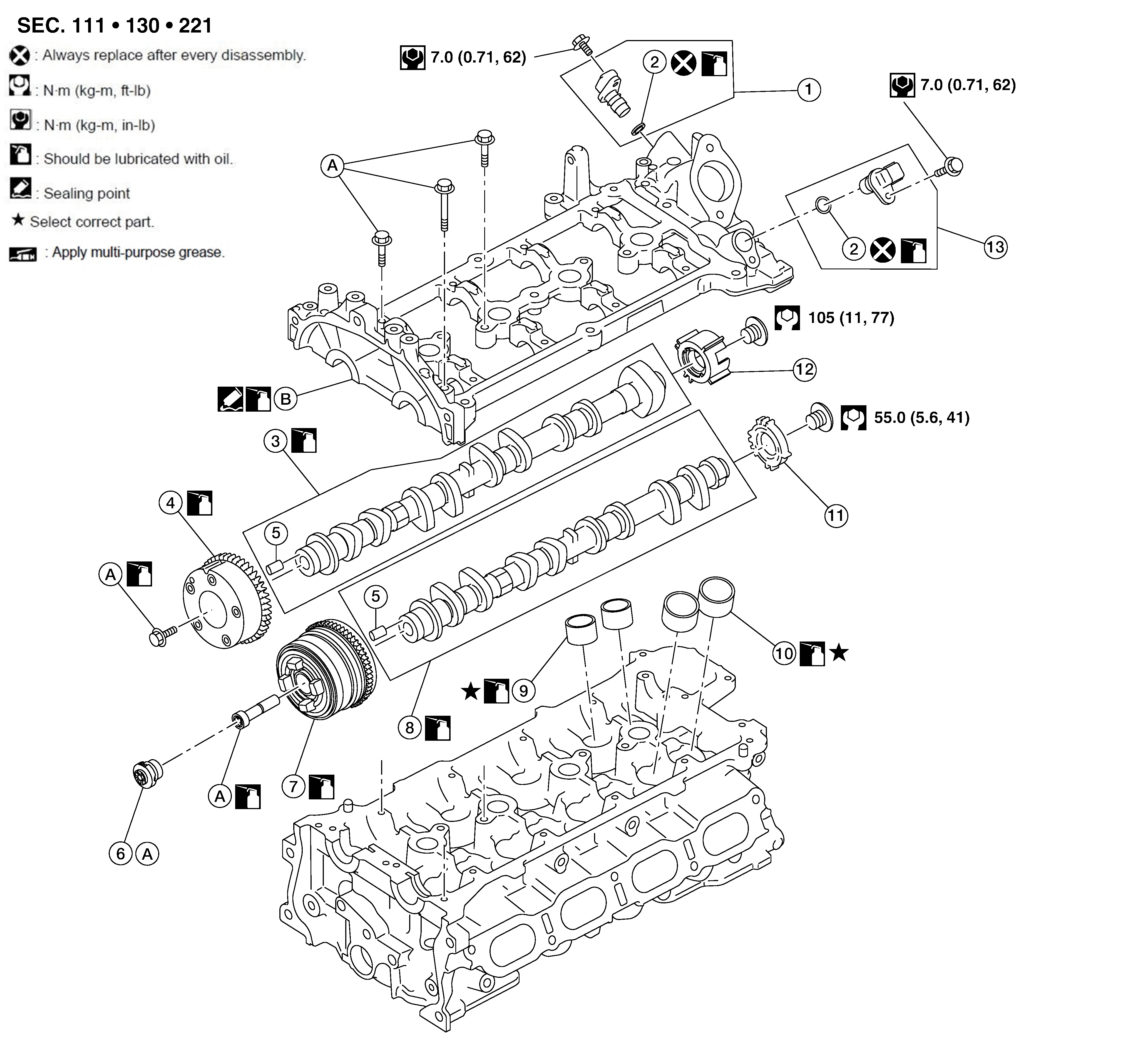

Exploded View
|
1. |
Exhaust camshaft position sensor (PHASE) |
2. |
O-ring |
3. |
Camshaft (EXH) |
|
4. |
Camshaft sprocket (EXH) |
5. |
Dowel |
6. |
Electric valve timing control actuator target |
|
7. |
Camshaft sprocket (INT) |
8. |
Camshaft (INT) |
9. |
Valve lifter (EXH) |
|
10. |
Valve lifter (INT) |
11. |
Signal plate (INT) |
12. |
Signal plate (EXH) |
|
13. |
Intake camshaft position sensor (PHASE) |
A. |
Refer to Removal and Installation . |
B. |
Camshaft bracket |
CAUTION:
Camshaft bracket cannot be replaced as a single part because it is machined together with the cylinder head.
: Identify the installation position when removing and store them without mixing them up.
