Horn
›
Exploded View
Exploded View

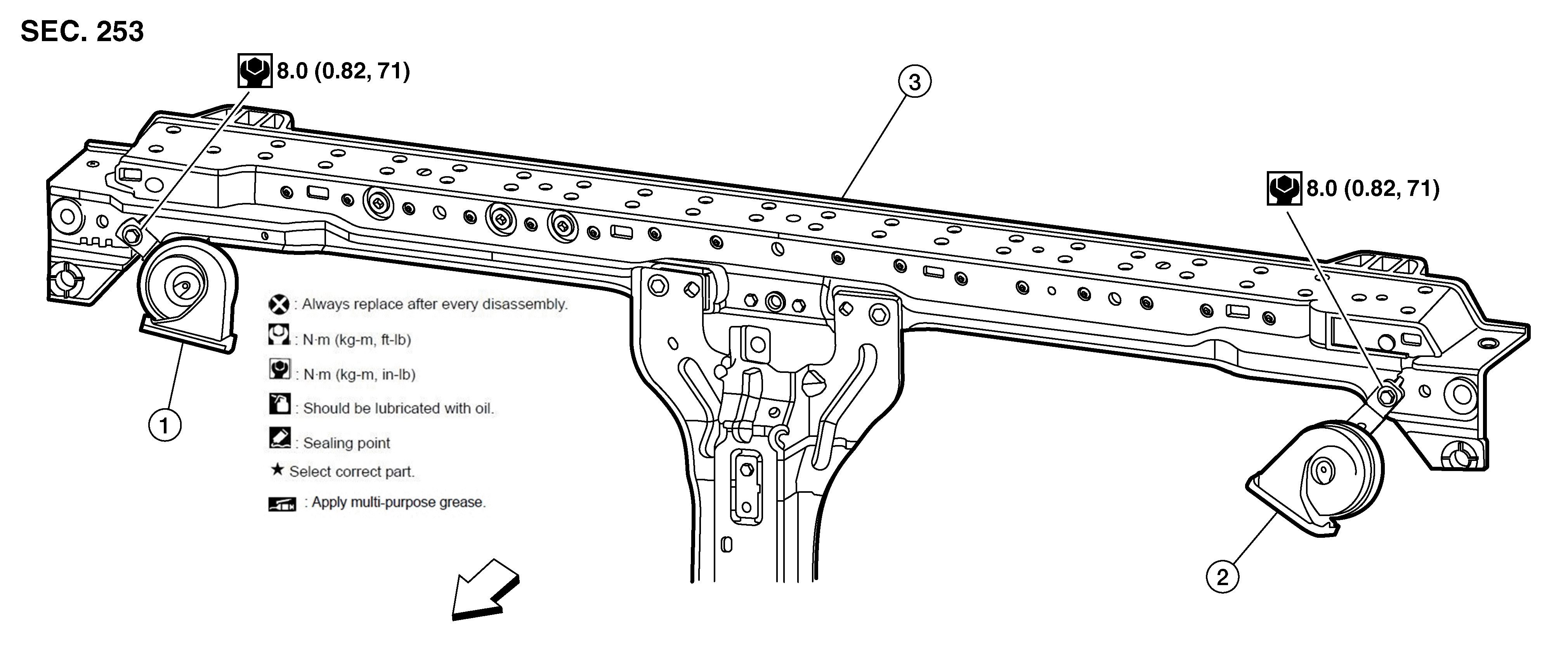

Fig 1: Horn Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Horn (LOW)
2.
Horn (HIGH)
3.
Radiator core support
Front
NOTE:
XD Models shown, Non-XD Models similar.
Courtesy of NISSAN NORTH AMERICA, INC.
