Nissan-Datsun
›
2021
›
Titan SL, RWD
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Steering System
›
Removal And Installation
›
Power Steering Oil Pump
›
Exploded View
Exploded View

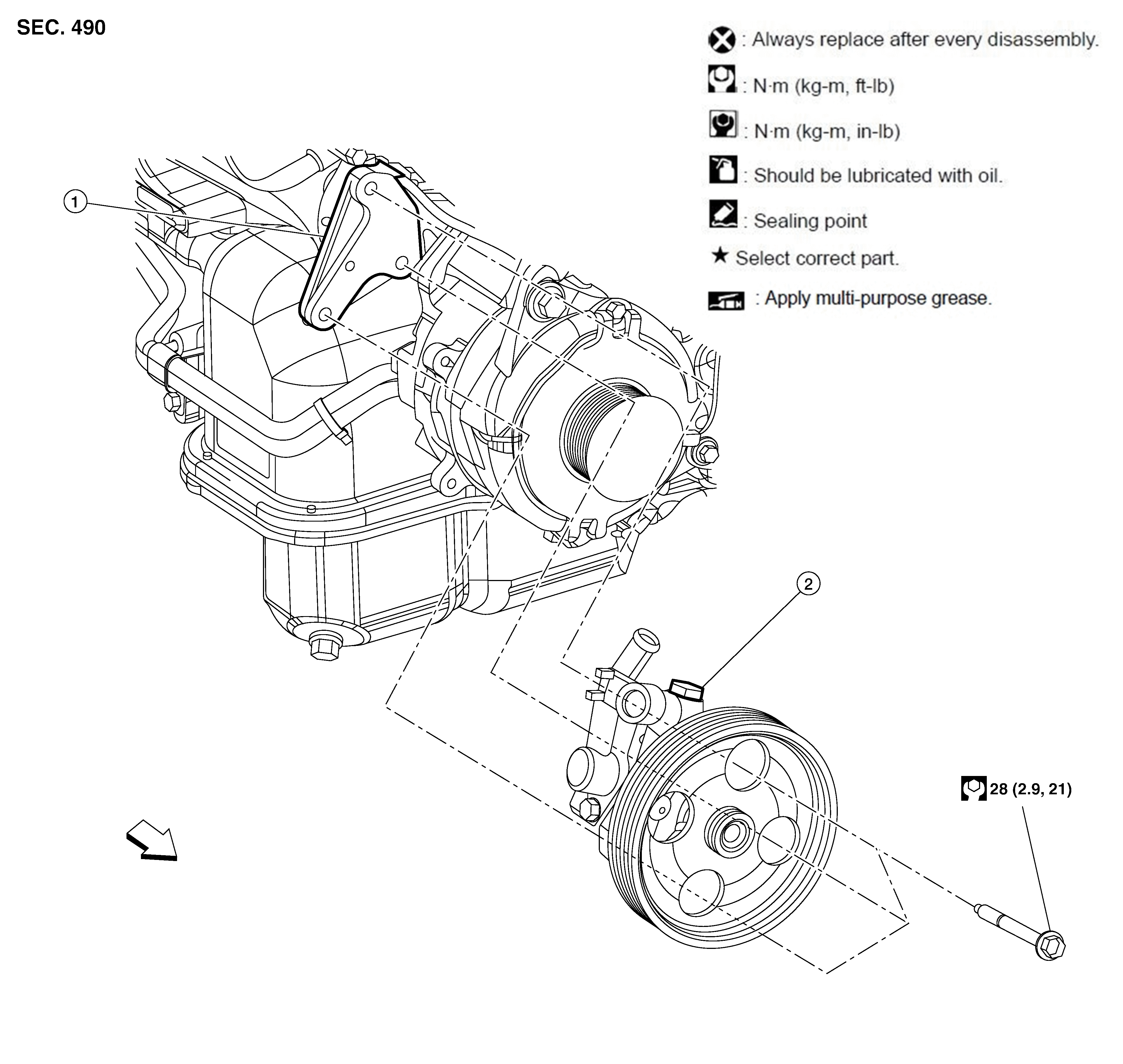

Fig 1: Power Steering Oil Pump Replacement Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Bracket
2.
Power steering oil pump
Front
Courtesy of NISSAN NORTH AMERICA, INC.
