Exploded View

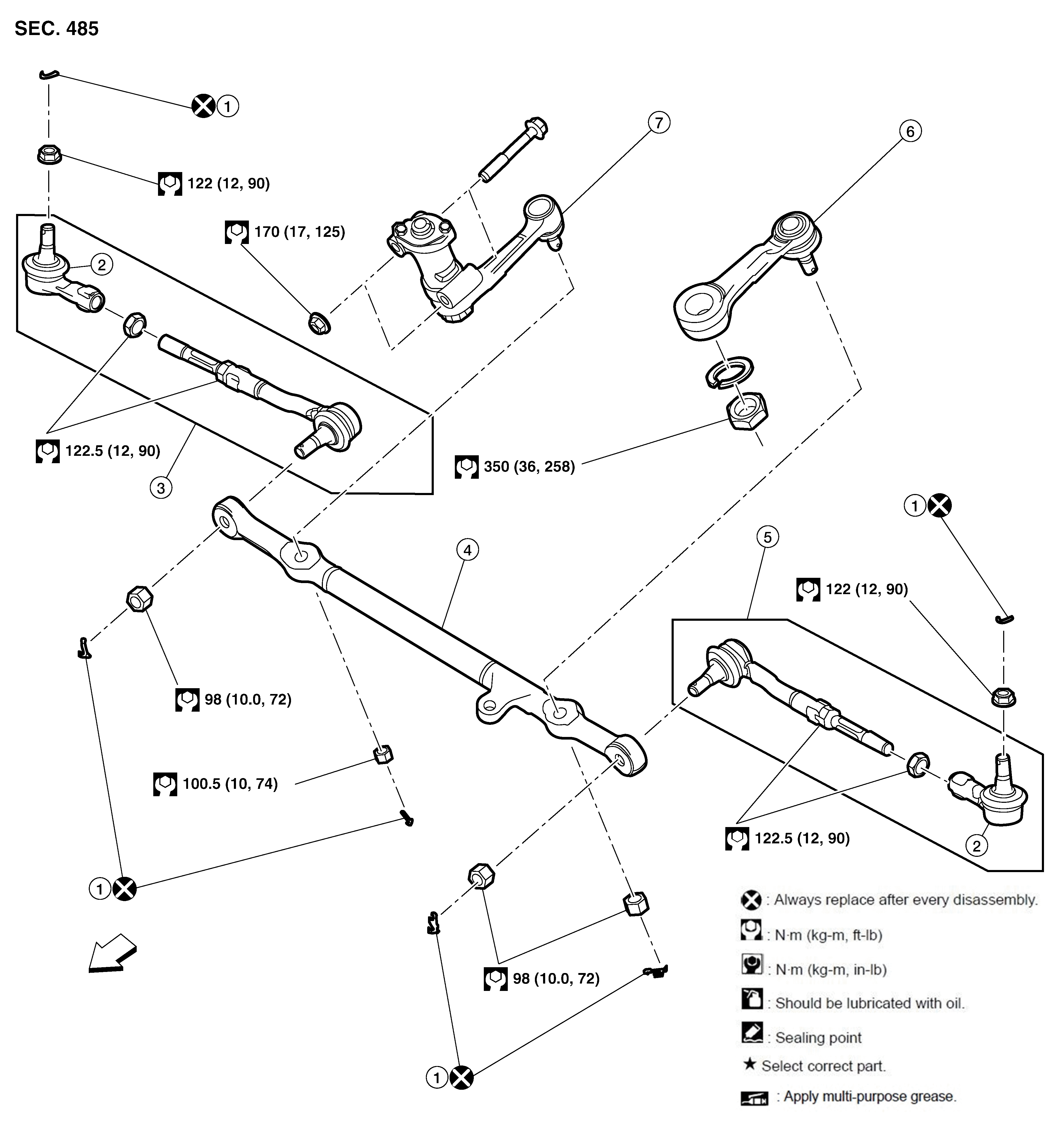

Fig 1: Inner And Outer Sockets Components With Torque Specifications - 2WD

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter pin	2.	Outer socket	3.	Inner/outer socket assembly (RH)
4.	Relay rod	5.	Inner/outer socket assembly (LH)	6.	Pitman arm
7.	Idler arm		Front

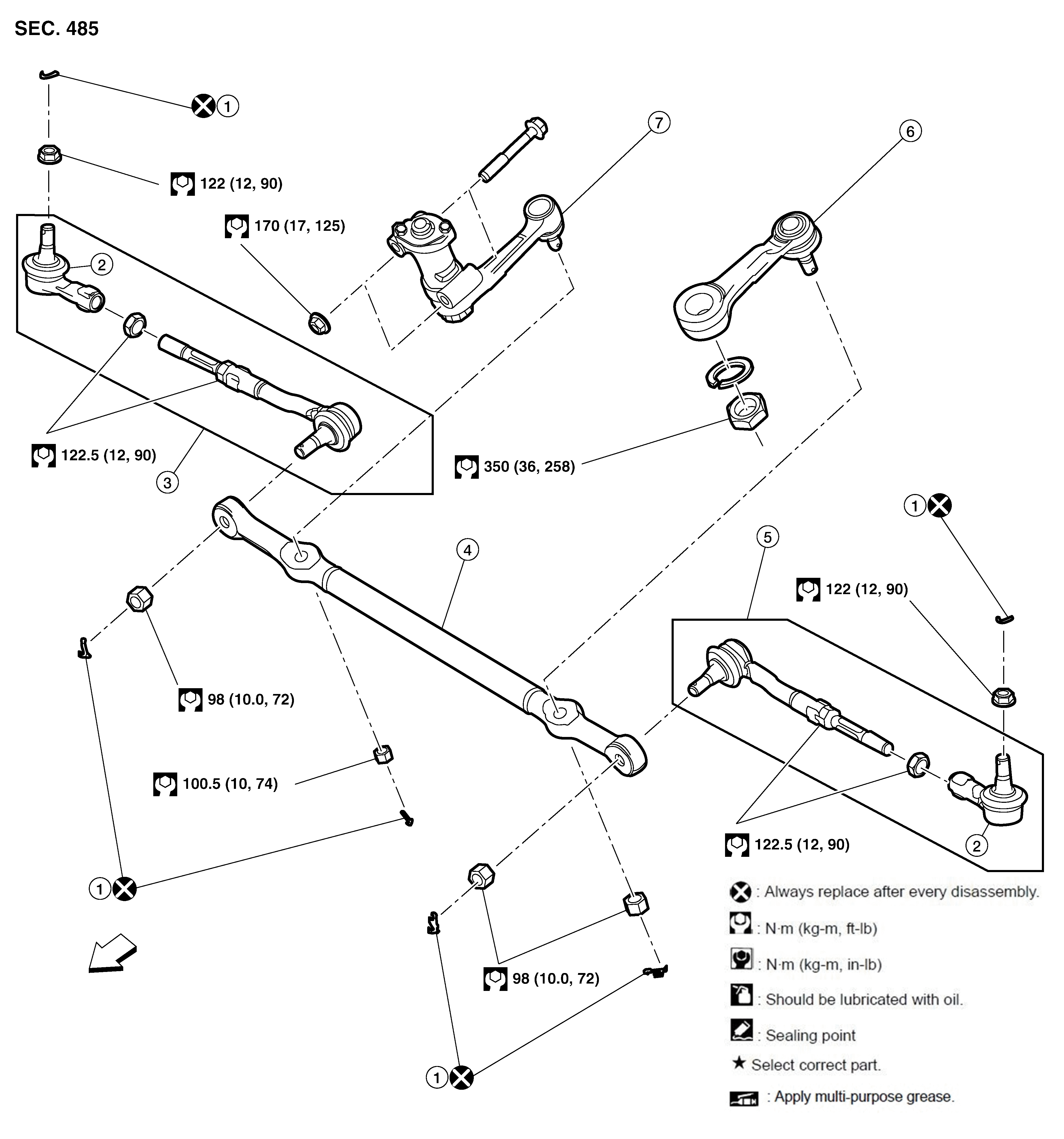

Fig 2: Inner And Outer Sockets Components With Torque Specifications - 4WD

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter pin	2.	Outer socket	3.	Inner/outer socket assembly (RH)
4.	Relay rod	5.	Inner/outer socket assembly (LH)	6.	Pitman arm
7.	Idler arm		Front
