Exploded View

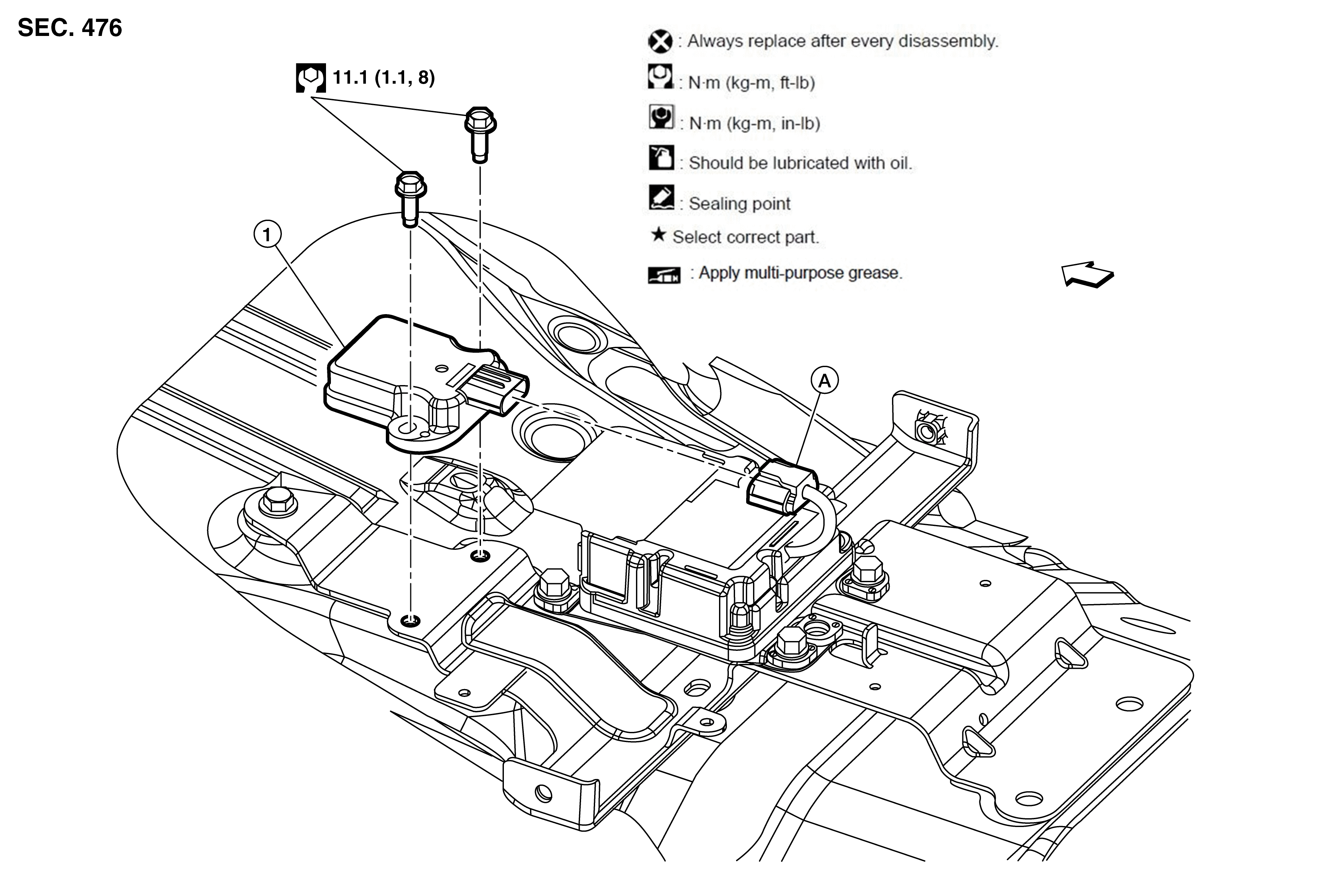

Fig 1: Yaw Rate/Side/Decel G Sensor Components With Torque Specifications
GNSALFIA0648Z-648SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Yaw rate/side/decel G sensor

A.

Harness connector

SYMBOL

Front
