Exploded View
Exploded View

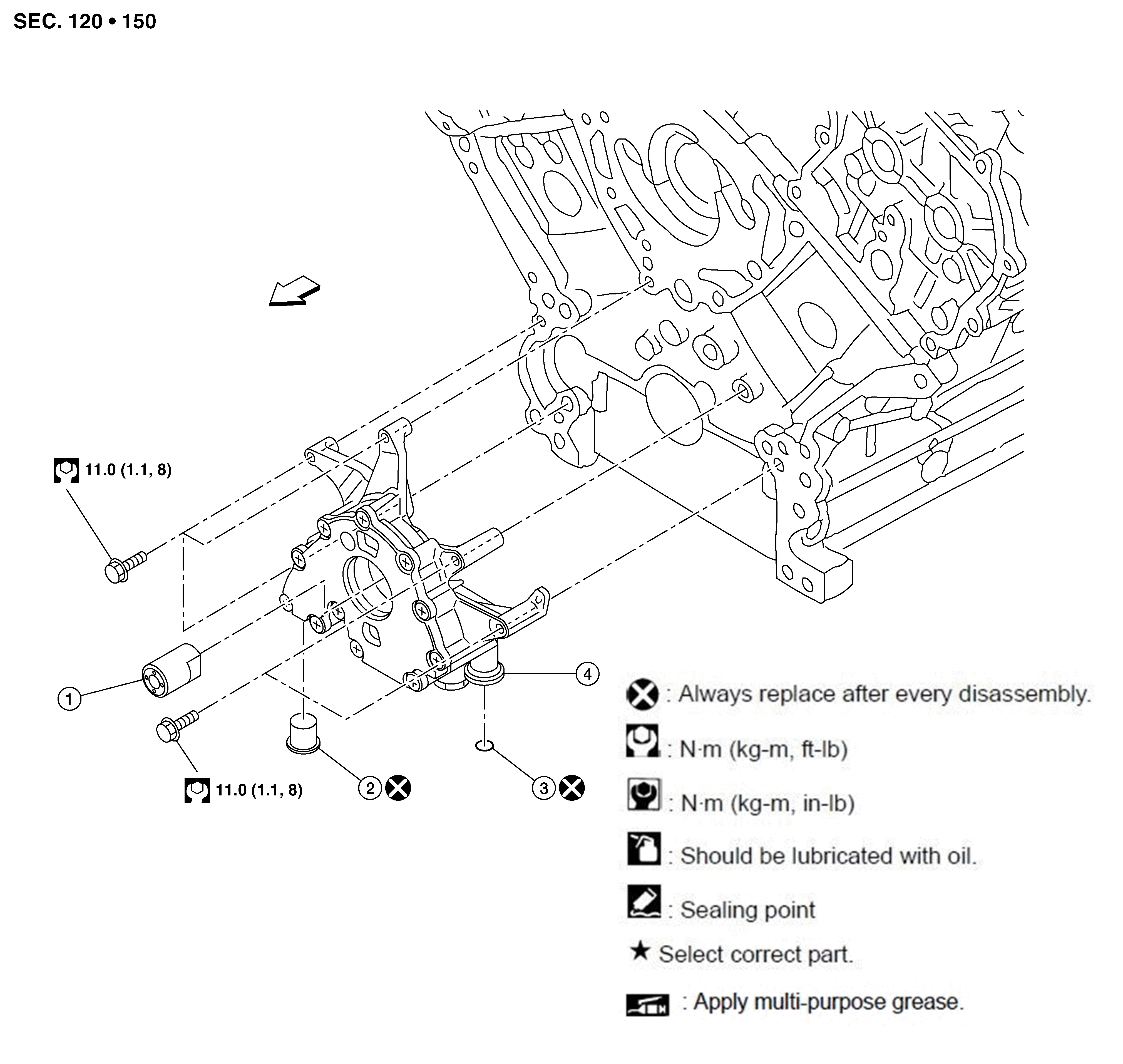

Fig 1: Oil Pump Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Oil pump drive spacer
2.
O-ring
3.
O-ring
4.
Oil pump assembly
Front
Courtesy of NISSAN NORTH AMERICA, INC.
