System Description
›
Lubrication System
›

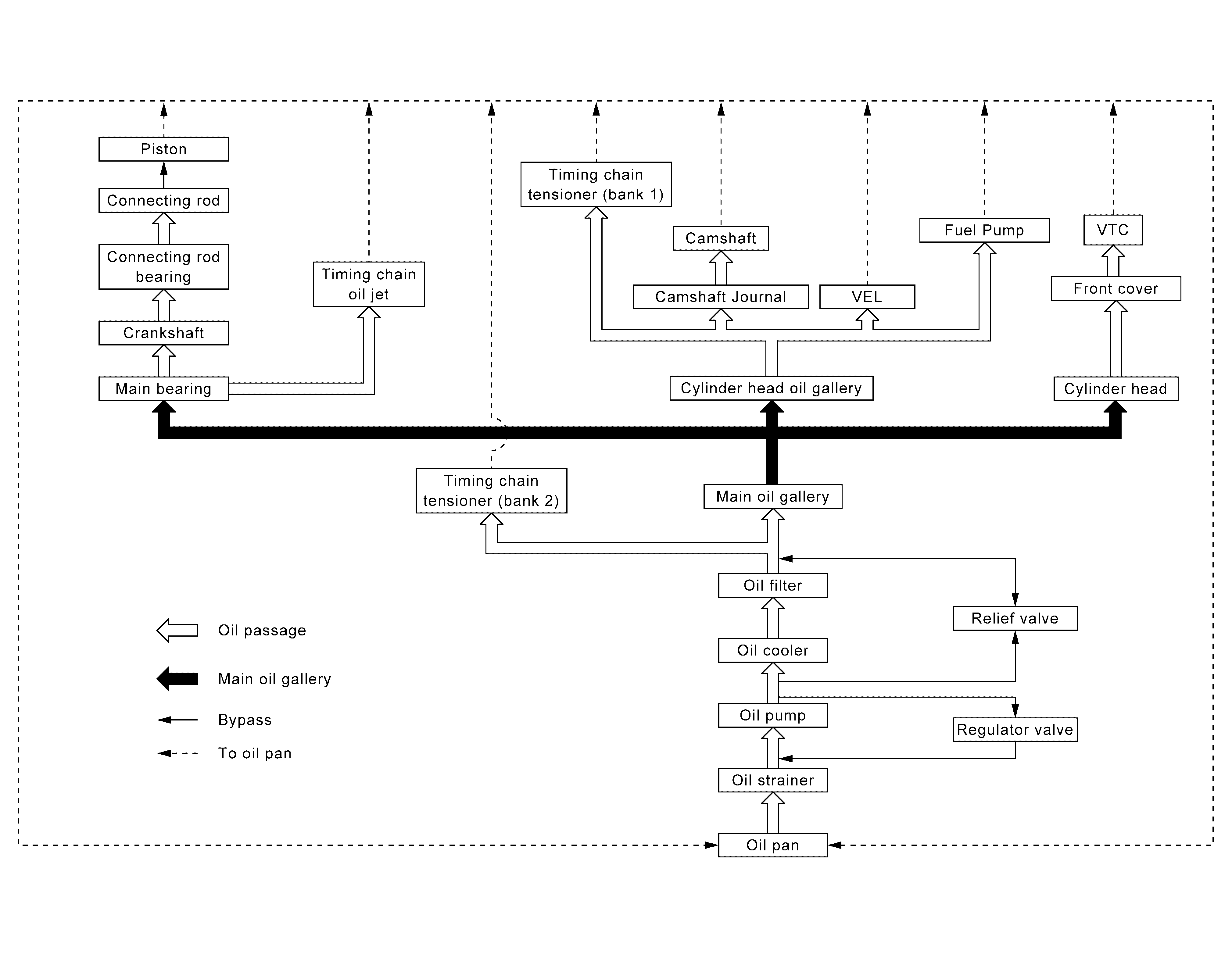

Engine Lubrication System Schematic
Engine Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
