Exploded View

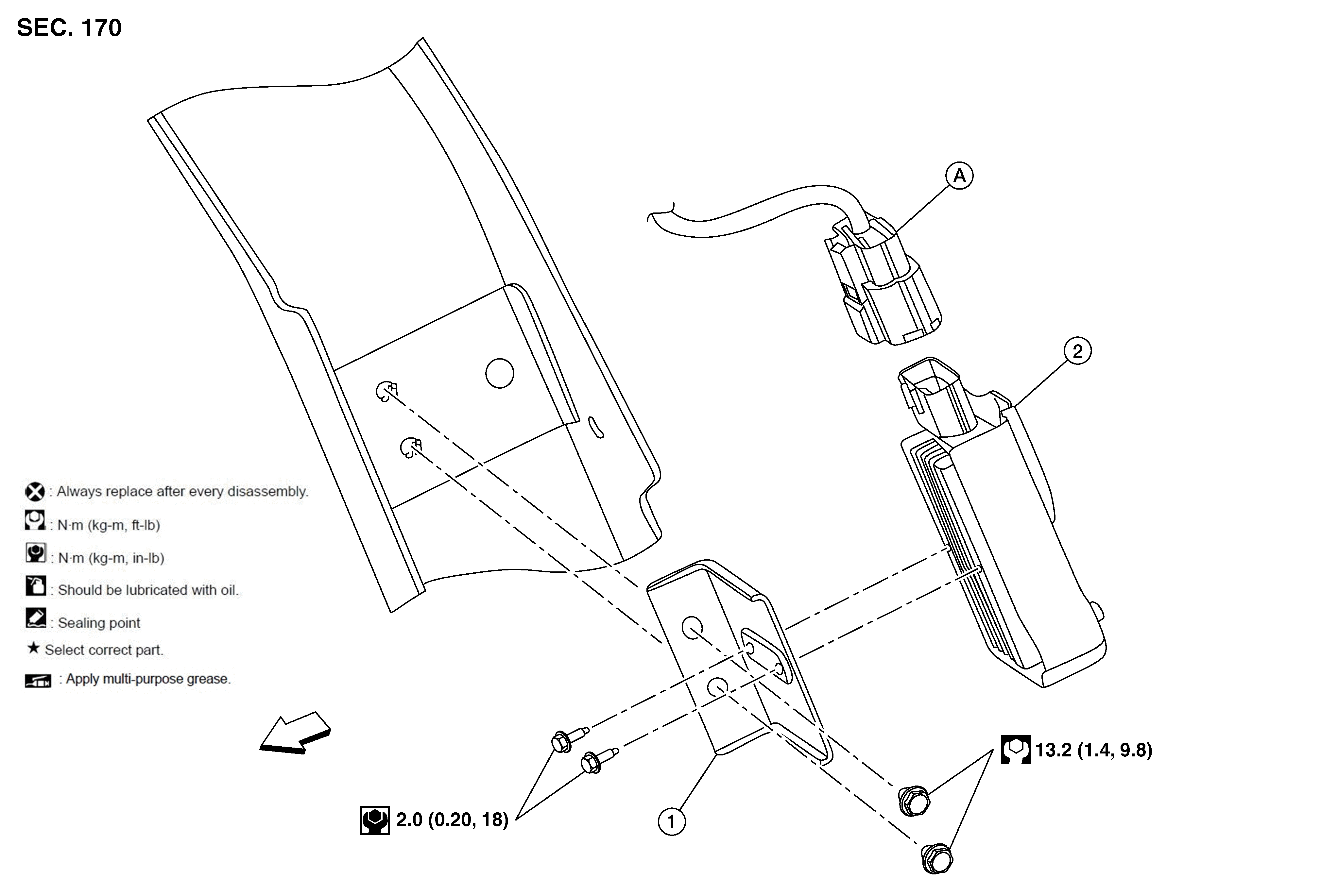

Fig 1: Fuel Pump Control Module (FPCM) Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel pump control module bracket	2.	Fuel pump control module	A.	Harness connector
	Front
