Exploded View

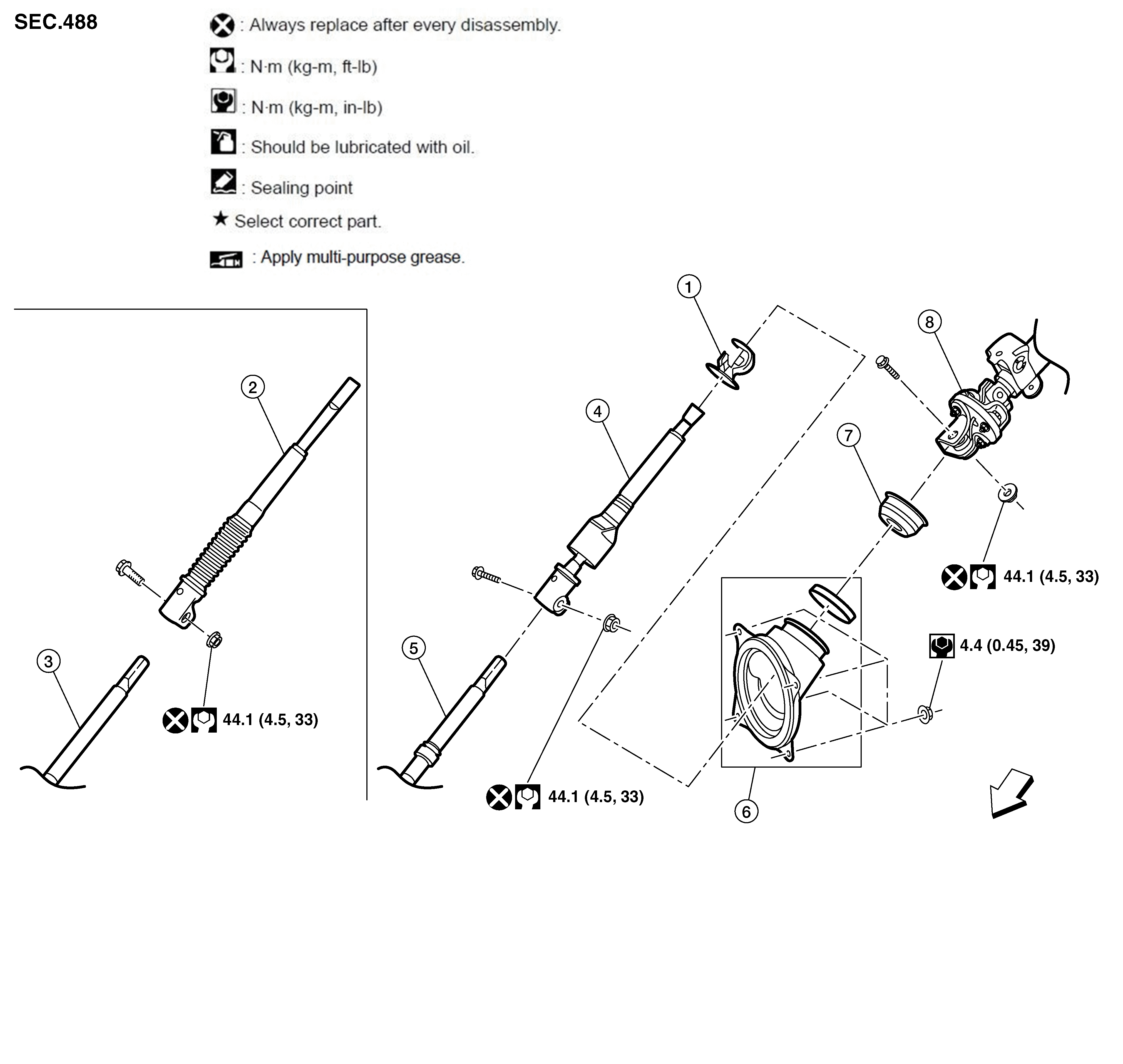

Fig 1: Intermediate Shaft Components With Torque Specifications
GNSAWGIA0476Z-476Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column collar

2.

Intermediate shaft (Non-XD Models)

3.

Lower joint (Non-XD Models)

4.

Intermediate shaft (XD Models)

5.

Lower joint (XD Models)

6.

Hole cover and clamp

7.

Hole cover seal

8.

Steering column

SYMBOL

Front
