Exploded View

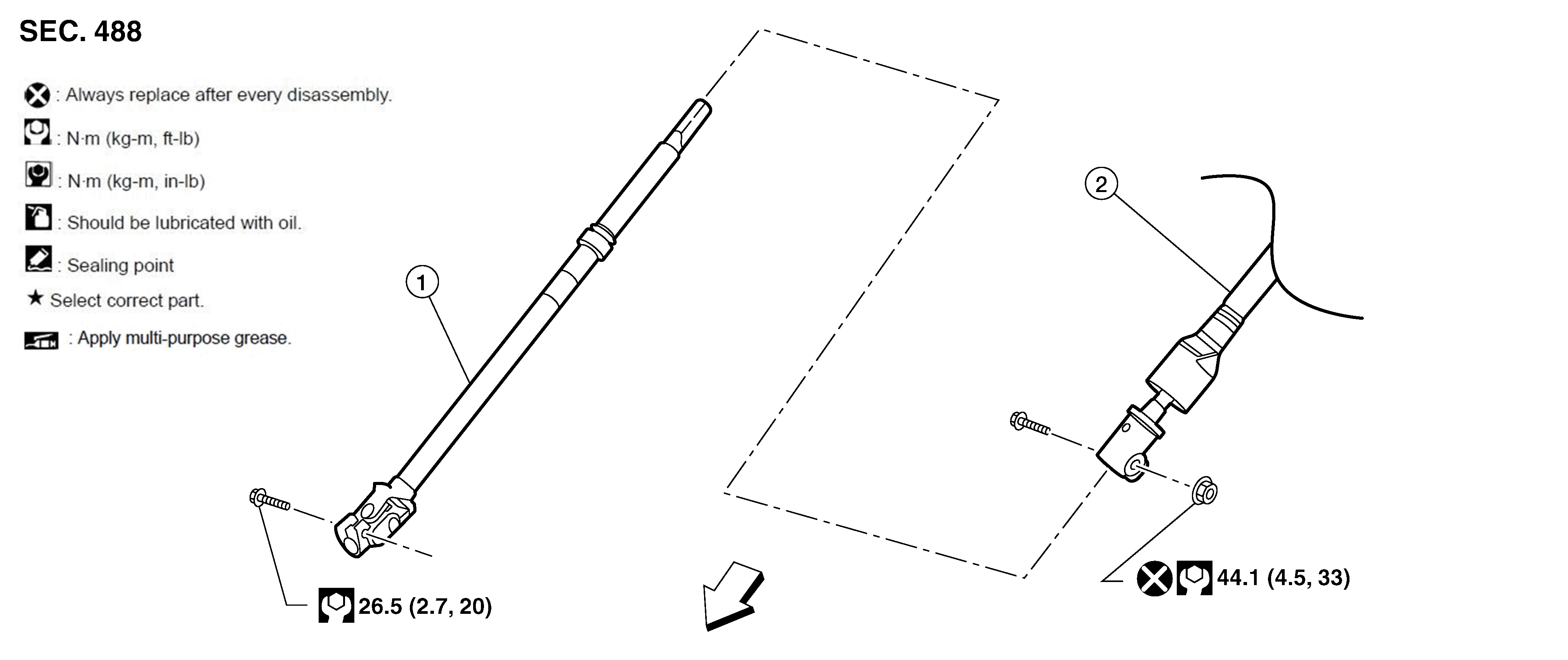

Fig 1: Lower Joint Components With Torque Specifications - XD Models

GNSAWGIA0408Z-408

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lower joint

2.

Intermediate shaft

Front

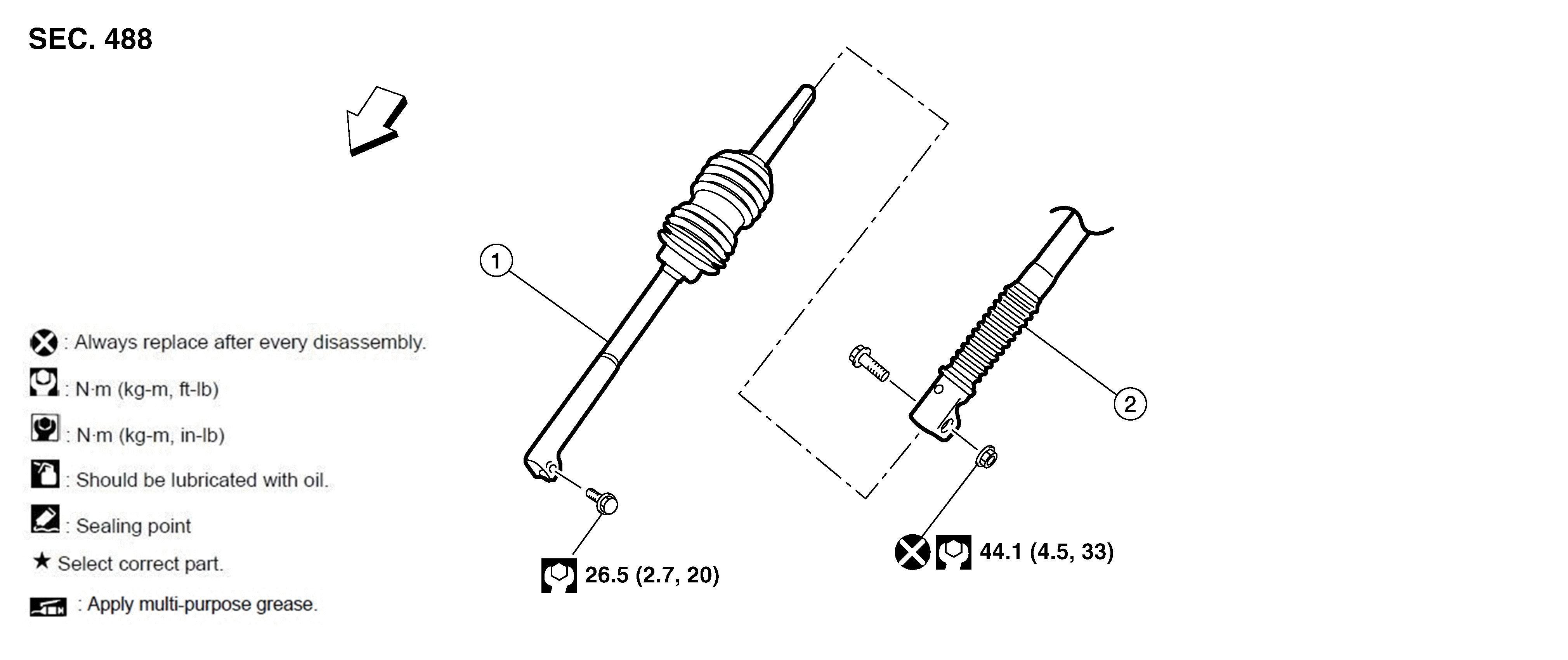

Fig 2: Lower Joint Components With Torque Specifications - Non-XD Models

GNSAWGIA0466Z-466

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lower joint

2.

Intermediate shaft

Front
