Exploded View

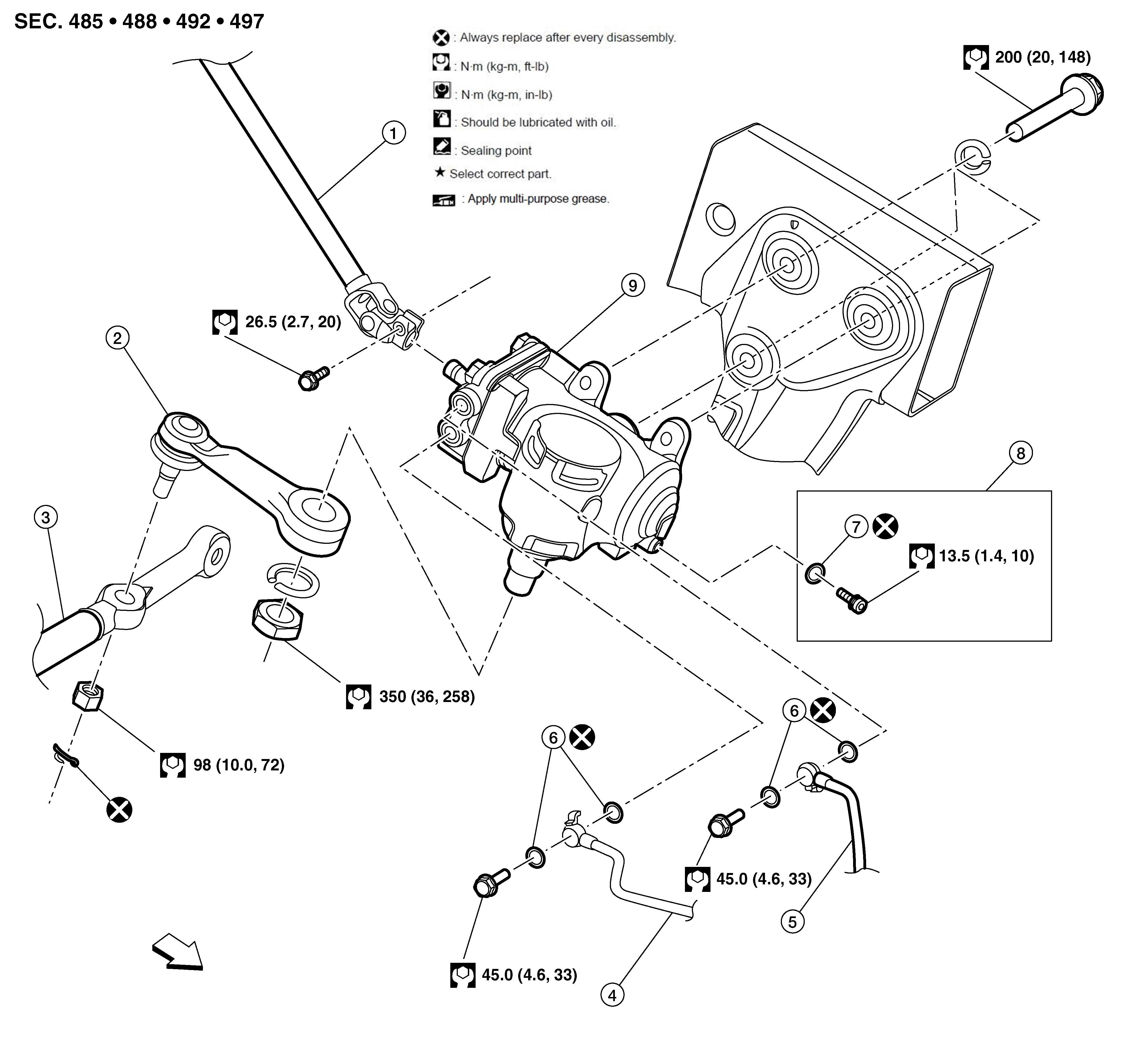

Fig 1: Steering Box Components With Torque Specifications - XD Models
GNSAWGIA0522Z-522Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering lower joint

2.

Pitman arm

3.

Relay rod

4.

Power steering return line

5.

Power steering pressure line

6.

Copper sealing washer

7.

Drain plug o-ring

8.

Drain plug

9.

Steering box

SYMBOL

Front
