Steering Gear And Linkage
›
Exploded View
Exploded View

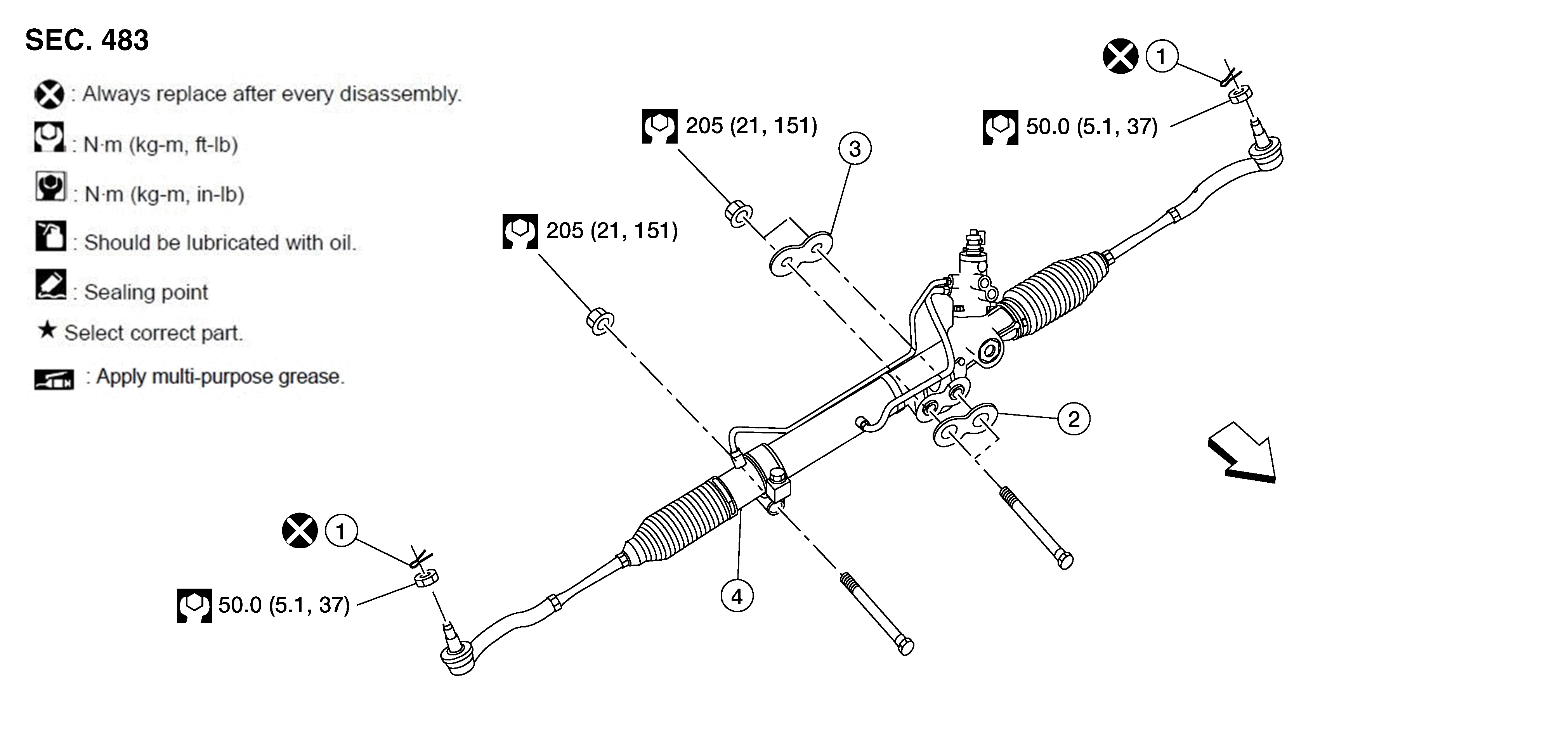

Fig 1: Steering Gear And Linkage Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Cotter pin
2.
Insulator
3.
Washer
4.
Steering gear
Vehicle front
Courtesy of NISSAN NORTH AMERICA, INC.
