System Diagram

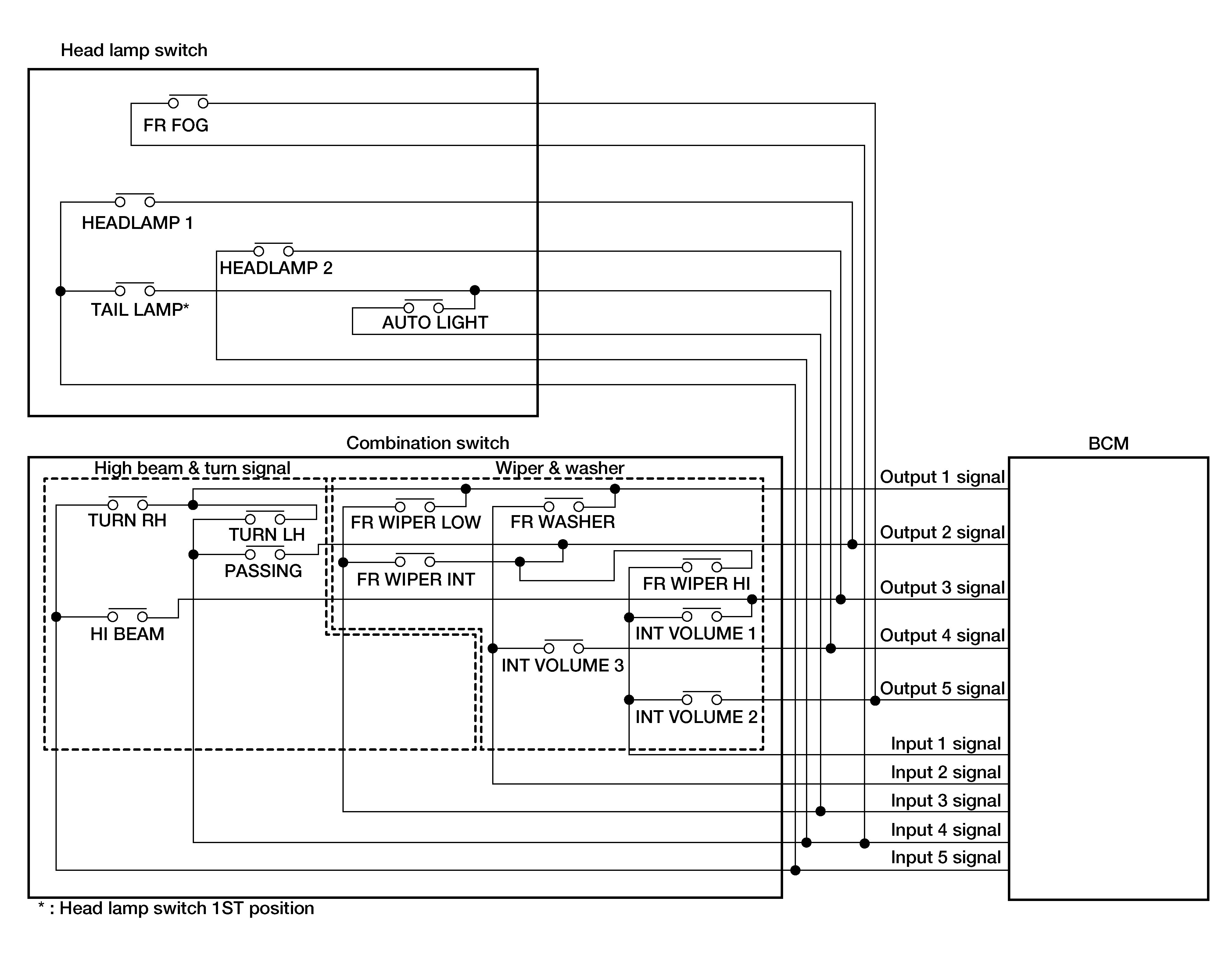

Fig 1: Combination Switch Circuit (With Variable Intermittent Wipers)
GNSAWMIA0192GB-192Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Combination Switch Circuit (With Rain Sensing Wipers)
G05743138Courtesy of NISSAN NORTH AMERICA, INC.
