Removal and Installation: Removal

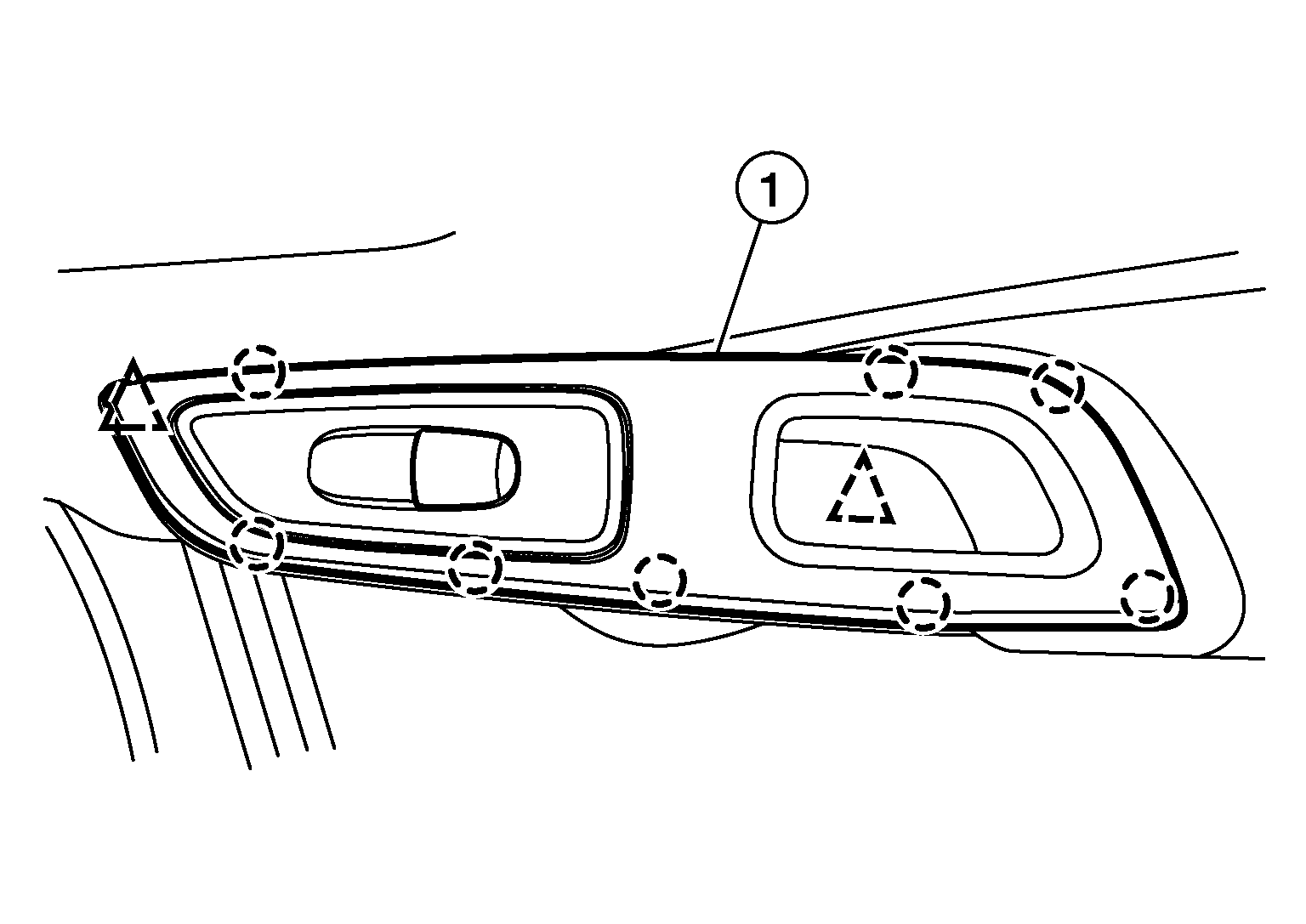

Using a suitable tool, release pawls and clips then remove the rear power window switch finisher (1).

GNSALKIA0832Z-832

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: LH shown; RH similar

	: Pawl
	: Clip

Disconnect harness connector from rear power window switch.

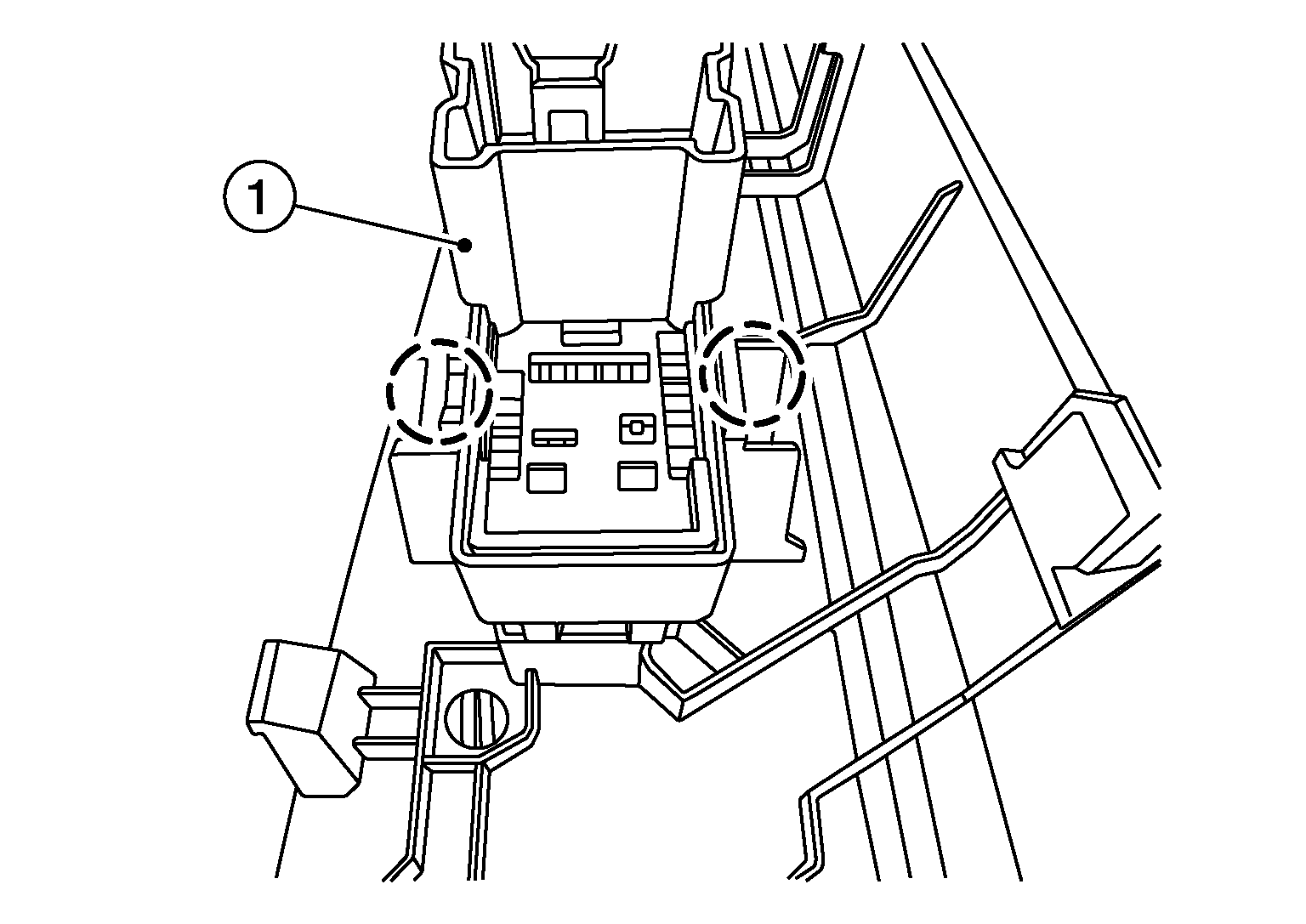

Release pawls using suitable tool, then remove rear power window switch (1) from rear power window switch finisher.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: LH shown; RH similar

: Pawl
