Exploded View

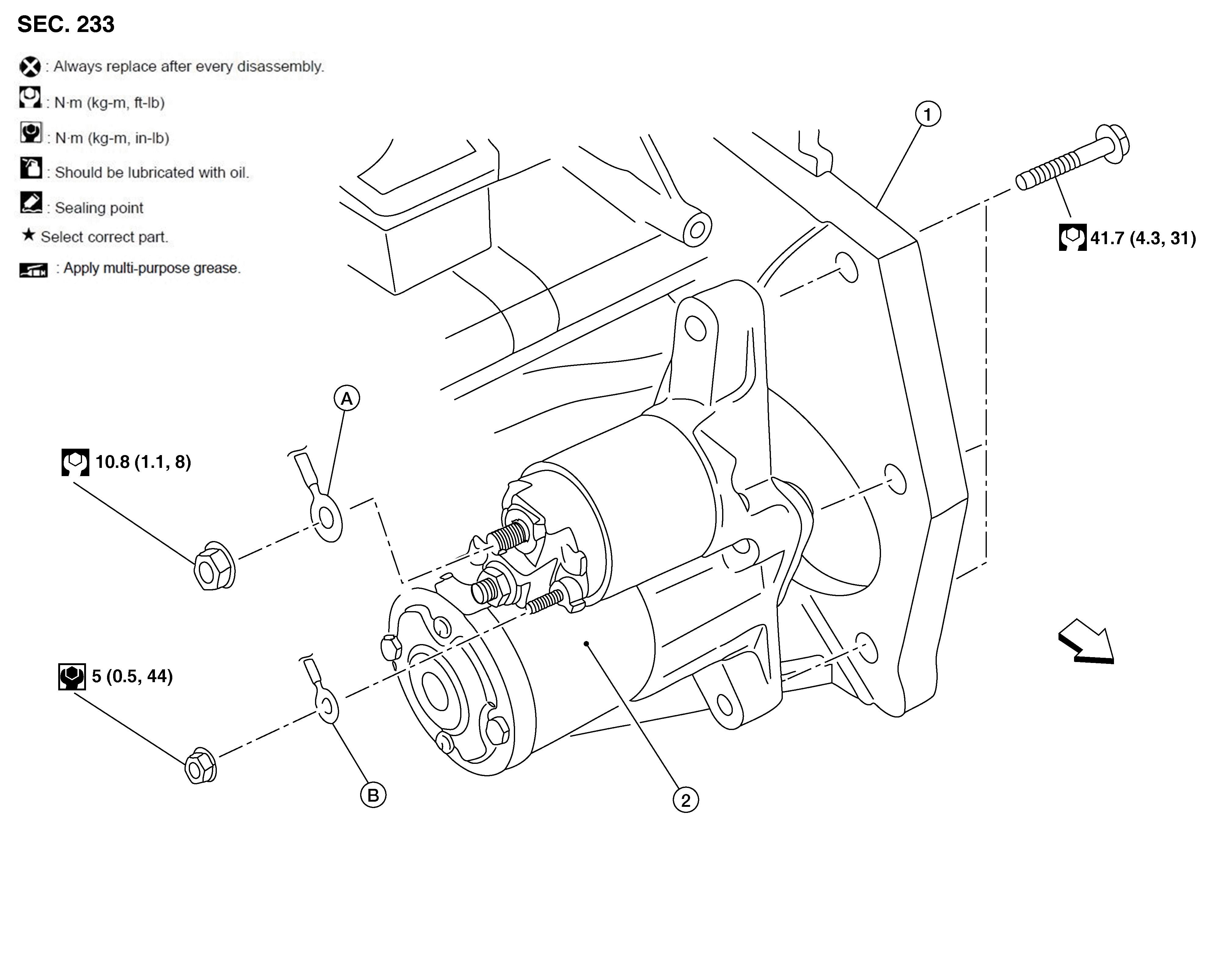

Fig 1: Starter Motor With Torque Specifications
GNSAWBIA0381Z-381SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Cylinder block

2.

Starter motor

A.

"B" terminal harness

B.

"S" terminal harness

SYMBOL

Front
