Ignition Timing: Inspection

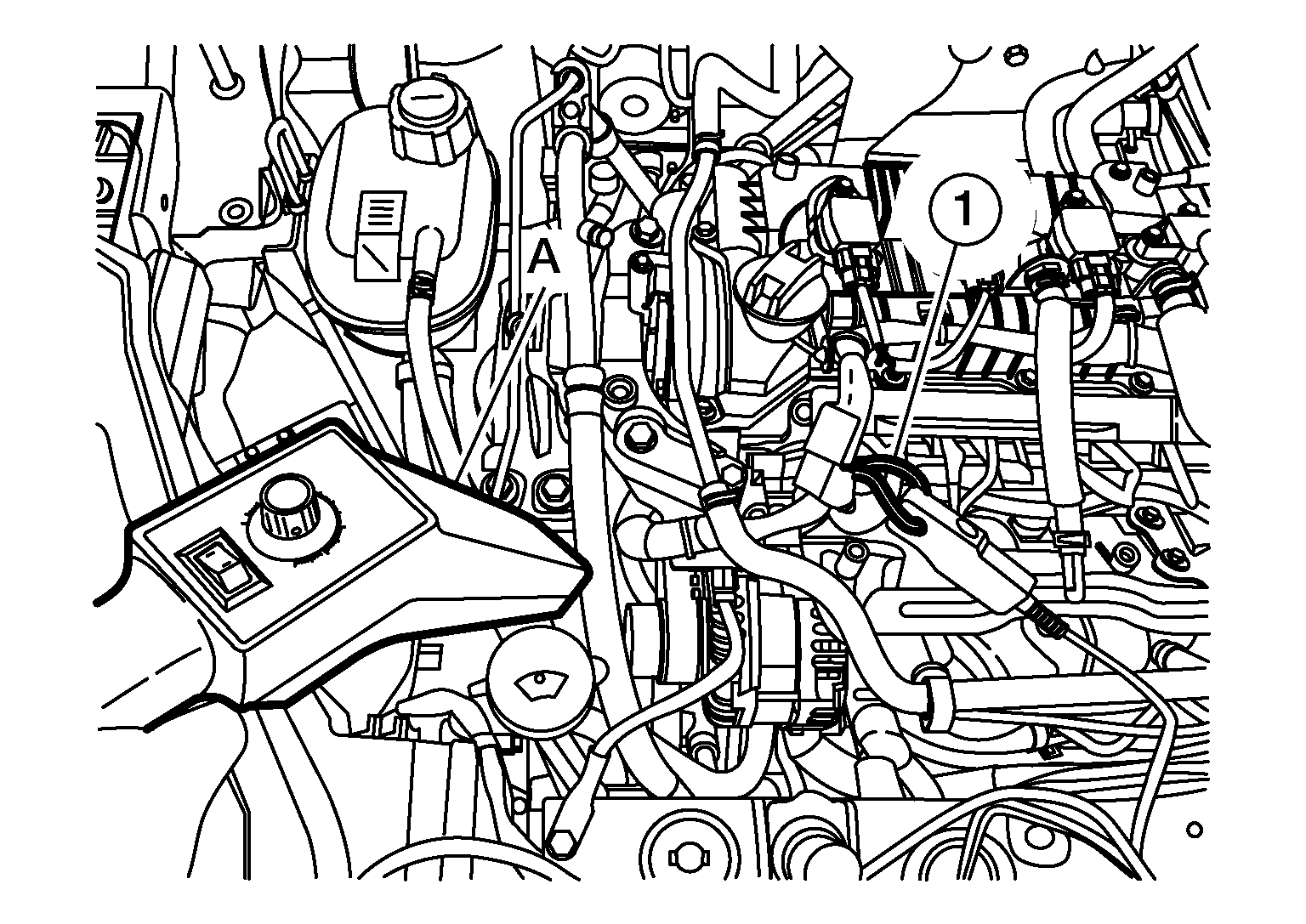

1. Attach timing light (A) to loop wire as shown.

   Courtesy of NISSAN NORTH AMERICA, INC.

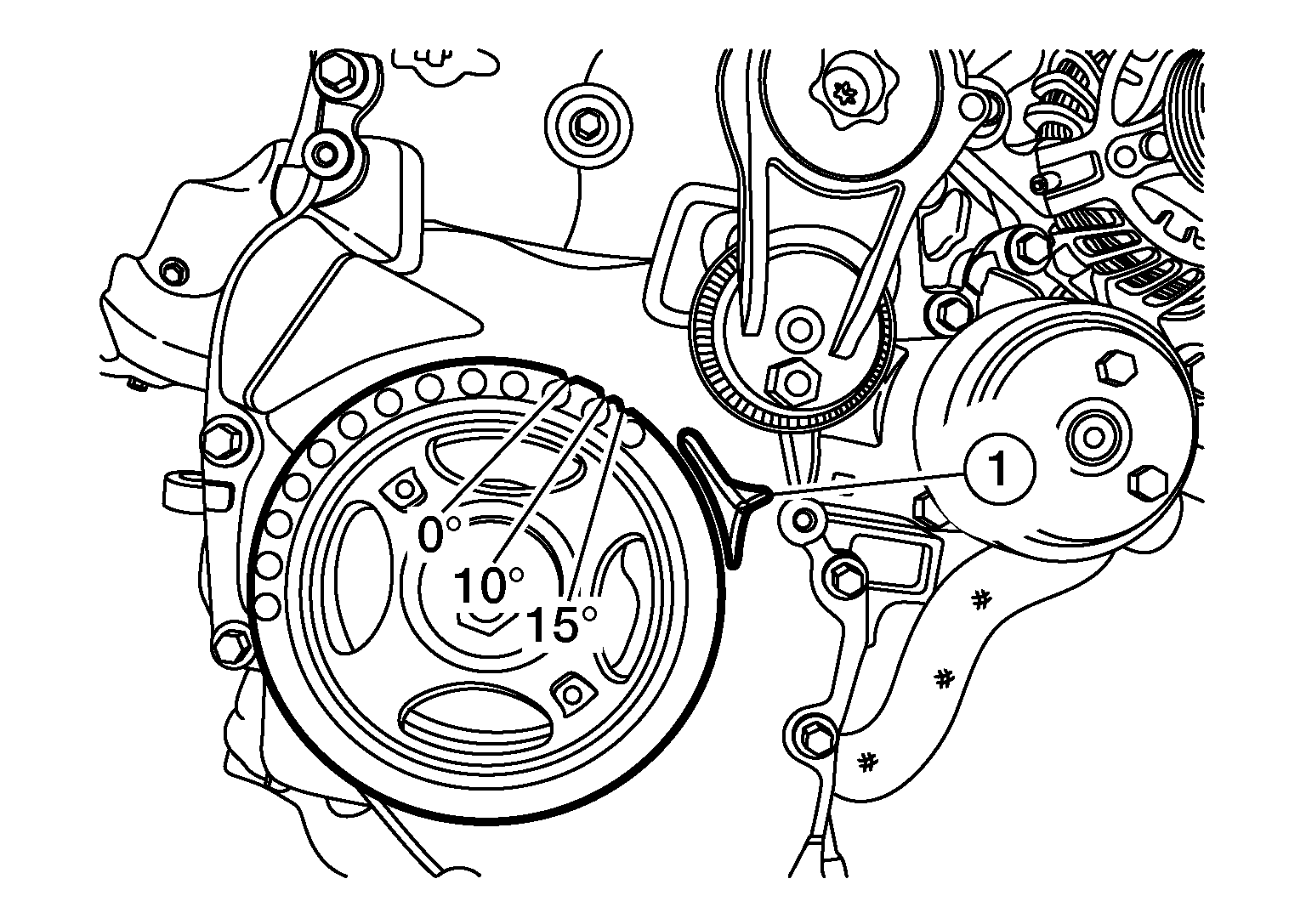

2. Check ignition timing.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Timing indicator

INSPECTION END
