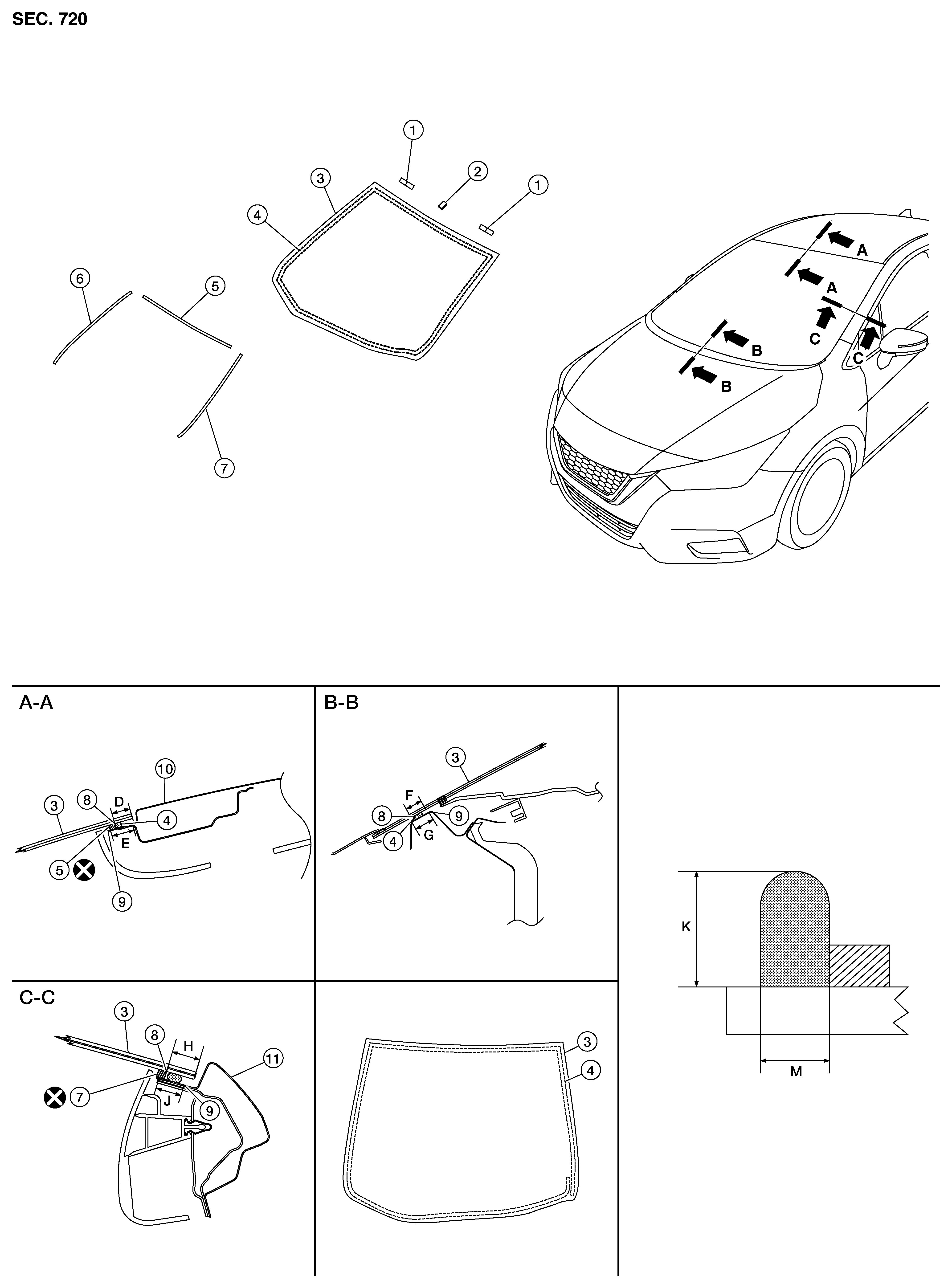

Exploded View
Unit: mm (in)
|
1. |
Spacer |
2. |
Inside mirror base |
3. |
Windshield glass |
|
4. |
Adhesive |
5. |
Dam sealant rubber (upper) |
6. |
Dam sealant rubber (RH) |
|
7. |
Dam sealant rubber (LH) |
8. |
Glass primer |
9. |
Body primer |
|
10. |
Roof panel |
11. |
Body side outer panel |
D. |
17.0 mm (0.6 in) |
|
E. |
25.5 mm (1.0 in) |
F. |
20.0 mm (0.7 mm) |
G. |
24.4 mm (0.9 in) |
|
H. |
17.0 mm (0.6 in) |
J. |
17.0 mm (0.6 in) |
K. |
12 + 2, 0 mm (0.4 + 0.07, 0 in) |
|
M. |
7 + 2, 0 mm (0.2 + 0.07, 0 in) |
