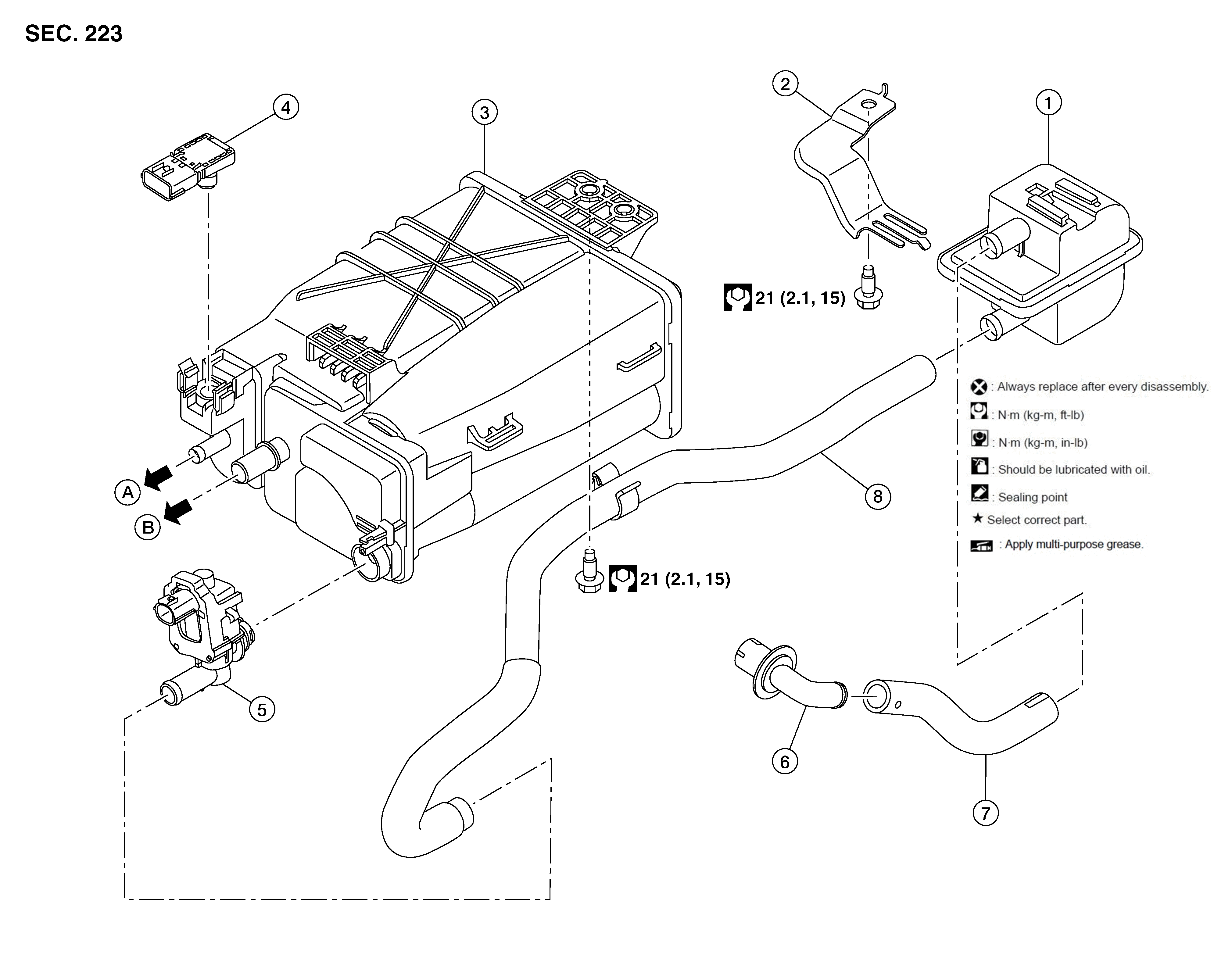

Exploded View

1.

EVAP canister filter

2.

EVAP canister filter bracket

3.

EVAP canister

4.

EVAP control system pressure sensor

5.

EVAP canister vent control valve

6.

EVAP canister filter hose frame connector

7.

EVAP canister filter hose

8.

EVAP canister vent control valve hose

A.

To centralized under-floor piping

B.

To fuel tank. Refer to Exploded View .
