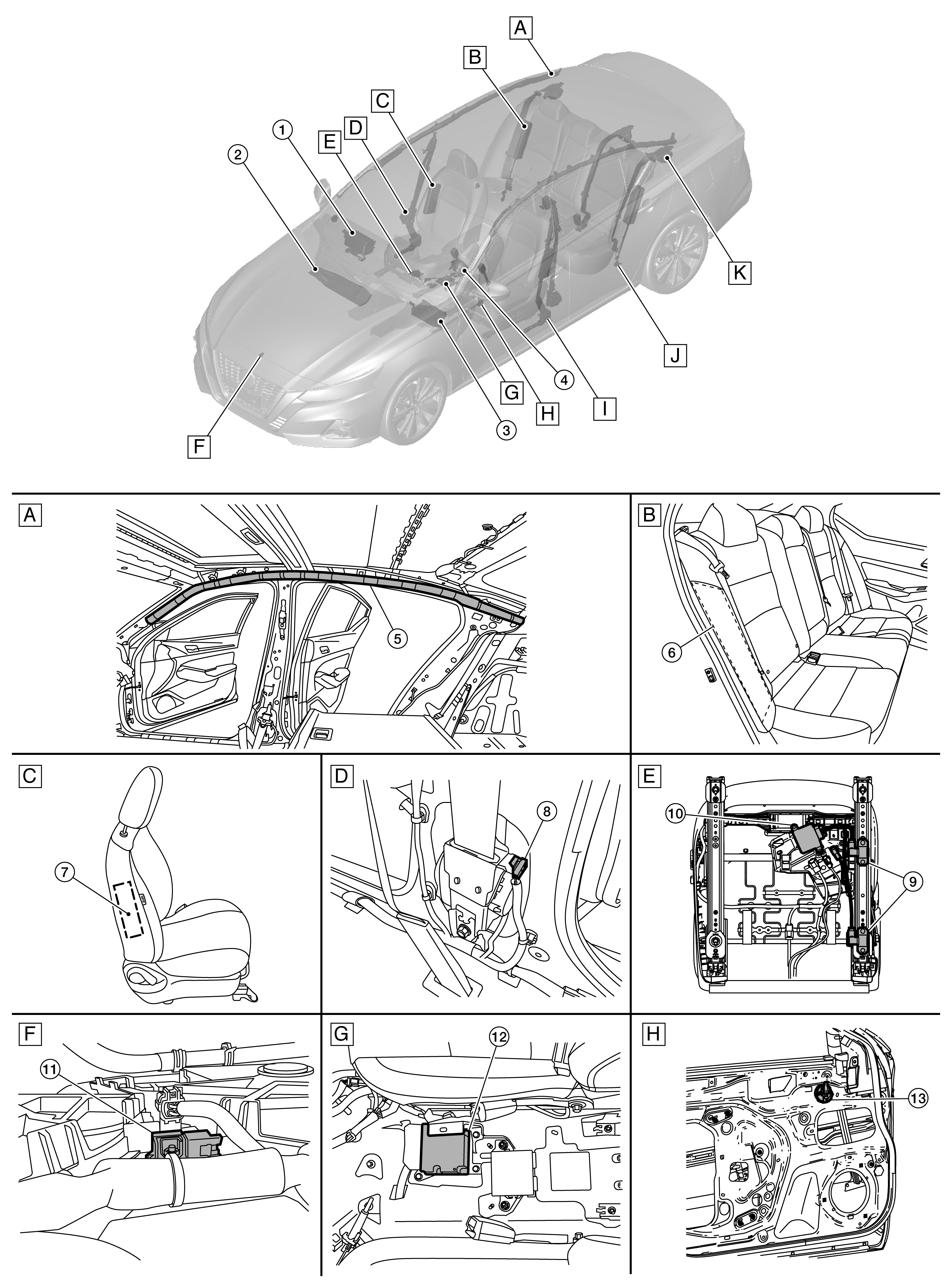

Component Location

A.

Right side of roof line

(view with headliner removed)

B.

RH rear passenger seat

C.

RH front passenger seat

D.

Right of front passenger seat

(view with lower B-pillar finisher removed)

E.

Bottom of front passenger seat

(view with front passenger seat removed)

F.

Radiator core support assembly

G.

Between driver and front passenger seat

(view with center console removed)

H.

Driver door area

(view with driver's door finisher removed)

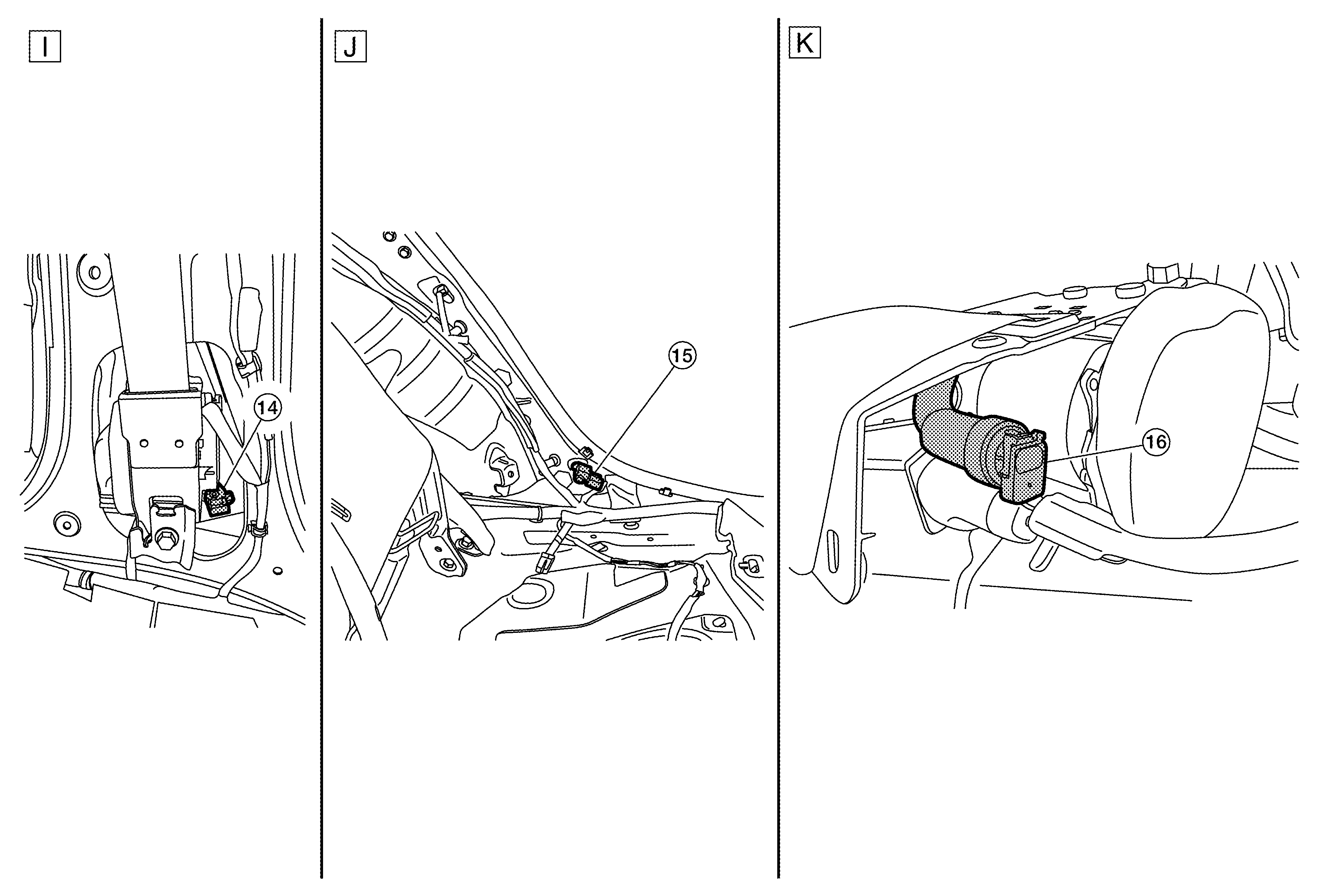

I.

Left of driver seat

(view with lower B-pillar finisher removed)

J.

Left of rear passenger seat

(view with lower C-pillar finisher removed)

K.

Left of luggage room

(view with LH luggage side lower finisher removed)

No.

Component

Function

1.

Front passenger air bag module

Refer to Component Description .

2.

Right knee air bag module

Refer to Component Description .

3.

Left knee air bag module

Refer to Component Description .

4.

Driver air bag module

Refer to Component Description .

5.

RH side curtain air bag module (LH similar)

Refer to Component Description .

6.

Rear RH side air bag module (LH similar)

Refer to Component Description .

7.

Front RH side air bag module (LH similar)

Refer to Component Description .

8.

Front RH seat belt pre-tensioner (LH similar)

Refer to Component Description .

9.

Occupant classification system sensors

Refer to System Description .

10.

Occupant classification system control unit

Refer to System Description .

11.

Crash zone sensor

Refer to Component Description .

12.

Air bag diagnosis sensor unit

Refer to Component Description .

13.

Front door satellite sensor LH (RH similar)

Refer to Component Description .

14.

Front side air bag satellite sensor LH (RH similar)

Refer to Component Description .

15.

Rear side air bag satellite sensor LH (RH similar)

Refer to Component Description .

16.

Rear LH seat belt pre-tensioner (RH similar)

Refer to Component Description .
