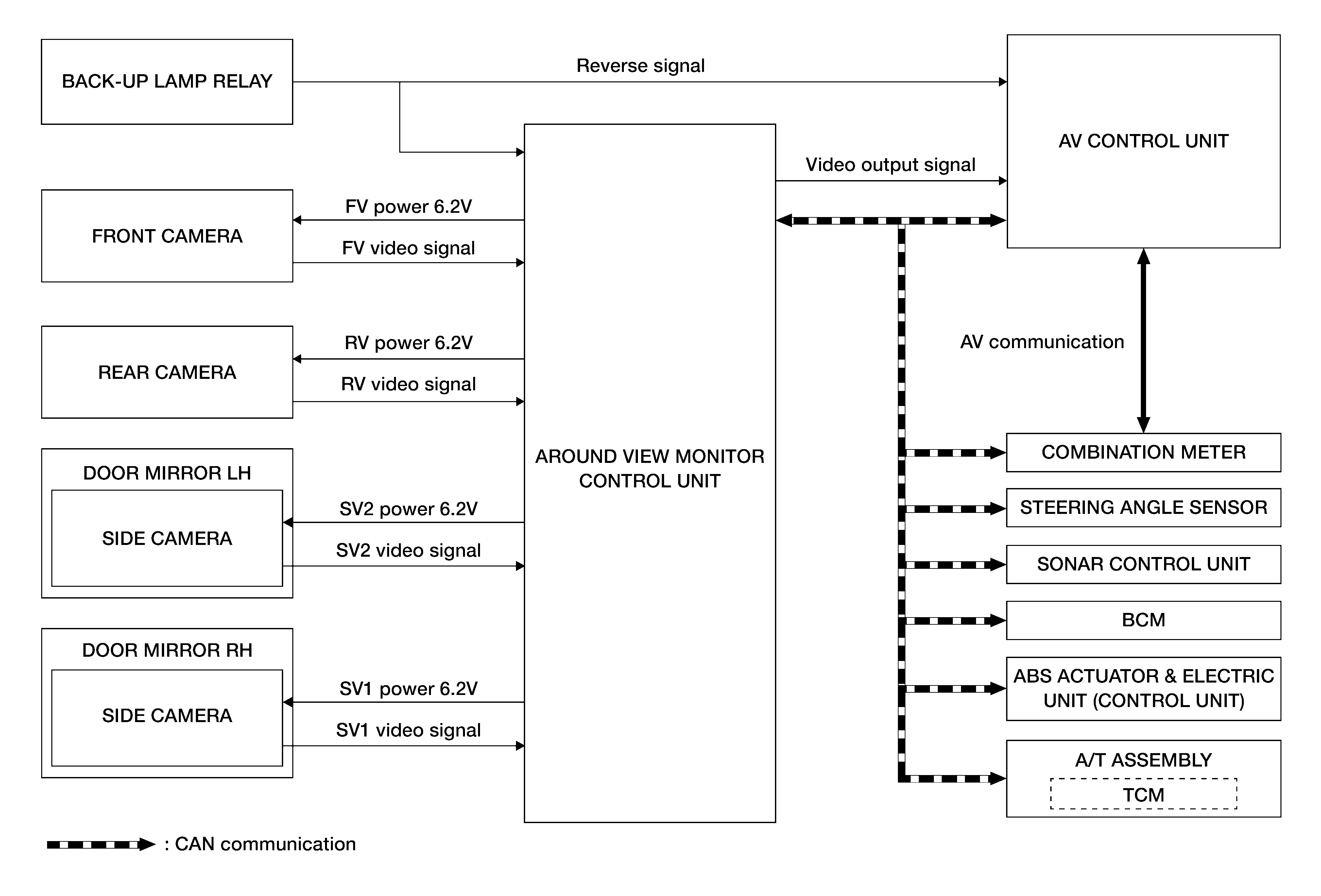

System Diagram

WARNING: This page is about a different car, the 2022 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Around View Monitor Control Unit Input Signal (CAN Communication)

Transmit unit	Signal name
ABS actuator and electric unit (Control unit)	Wheel speed signals
A/T assembly (TCM)	Transmission range indication signal Tow mode indicator request signal
AV control unit	Camera switch press signal Camera OFF request signal MOD switch press signal
BCM	Door switches state signal Trailer presence signal
Combination meter	Setting change request signal Hand brake switch signal
Sonar control unit	Sonar system mode status signal Sonar display request status signal
Steering angle sensor	Steering angle signal
