Crash Zone Sensor
›
Exploded View
Exploded View

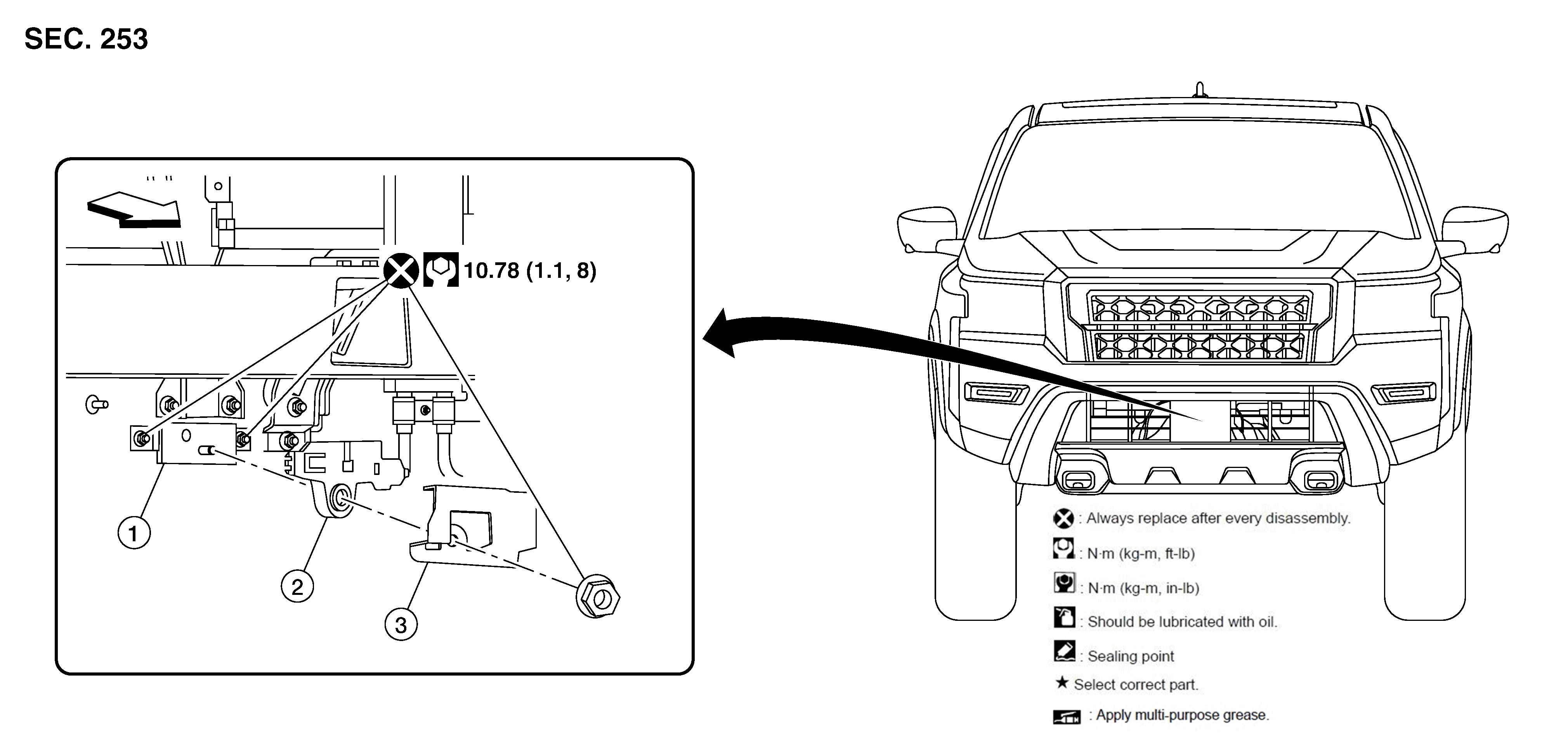

Fig 1: Crash Zone Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Crash zone sensor mounting bracket
2.
Crash zone sensor
3.
Crash zone sensor shield
Front
