Exploded View

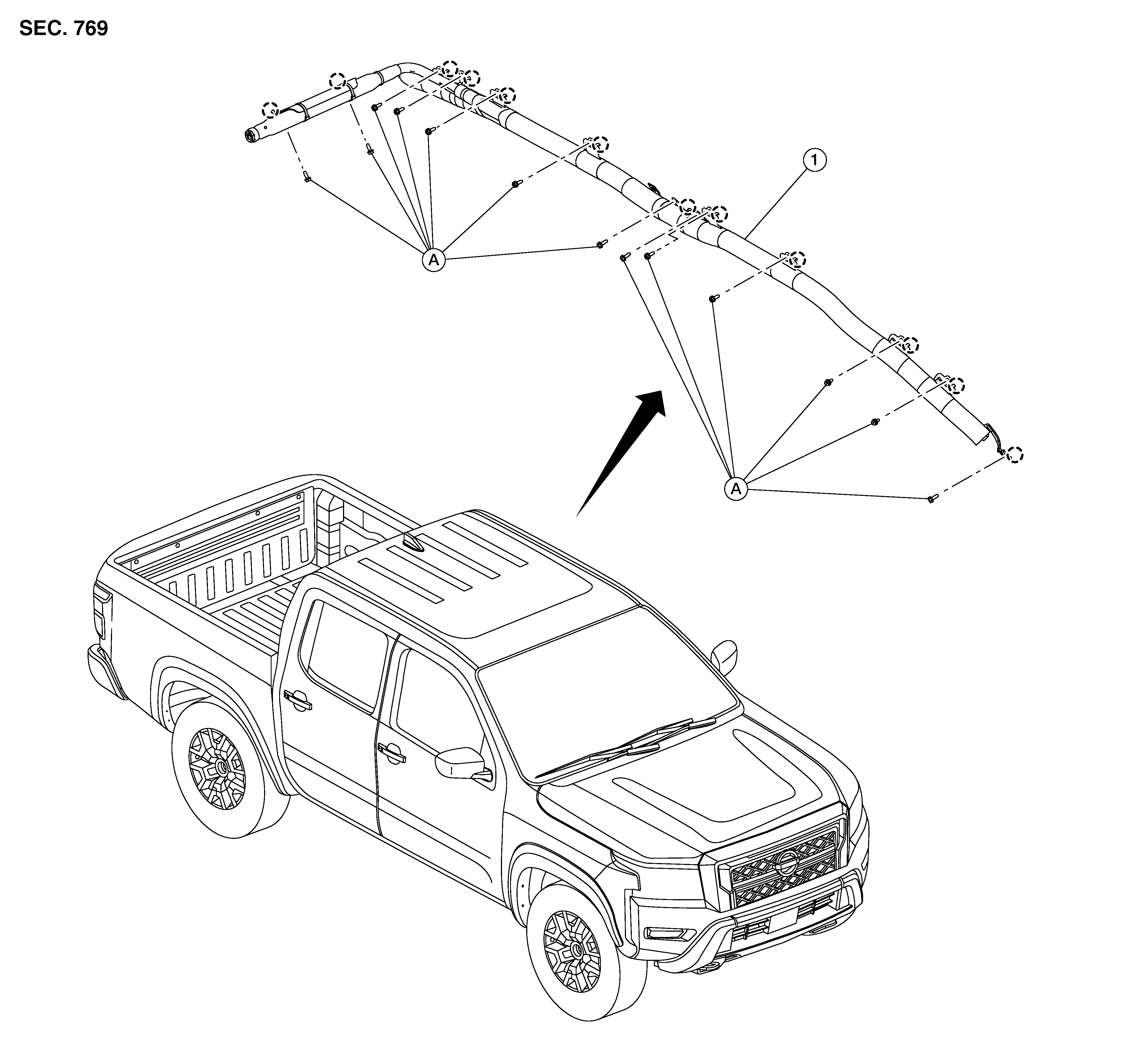

Fig 1: CREW CAB MODELS
GNSALHIA0885Z-885Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: LH shown, RH similar

1.

Side curtain air bag module

A.

Refer to Removal and Installation .

SYMBOL

Pawl

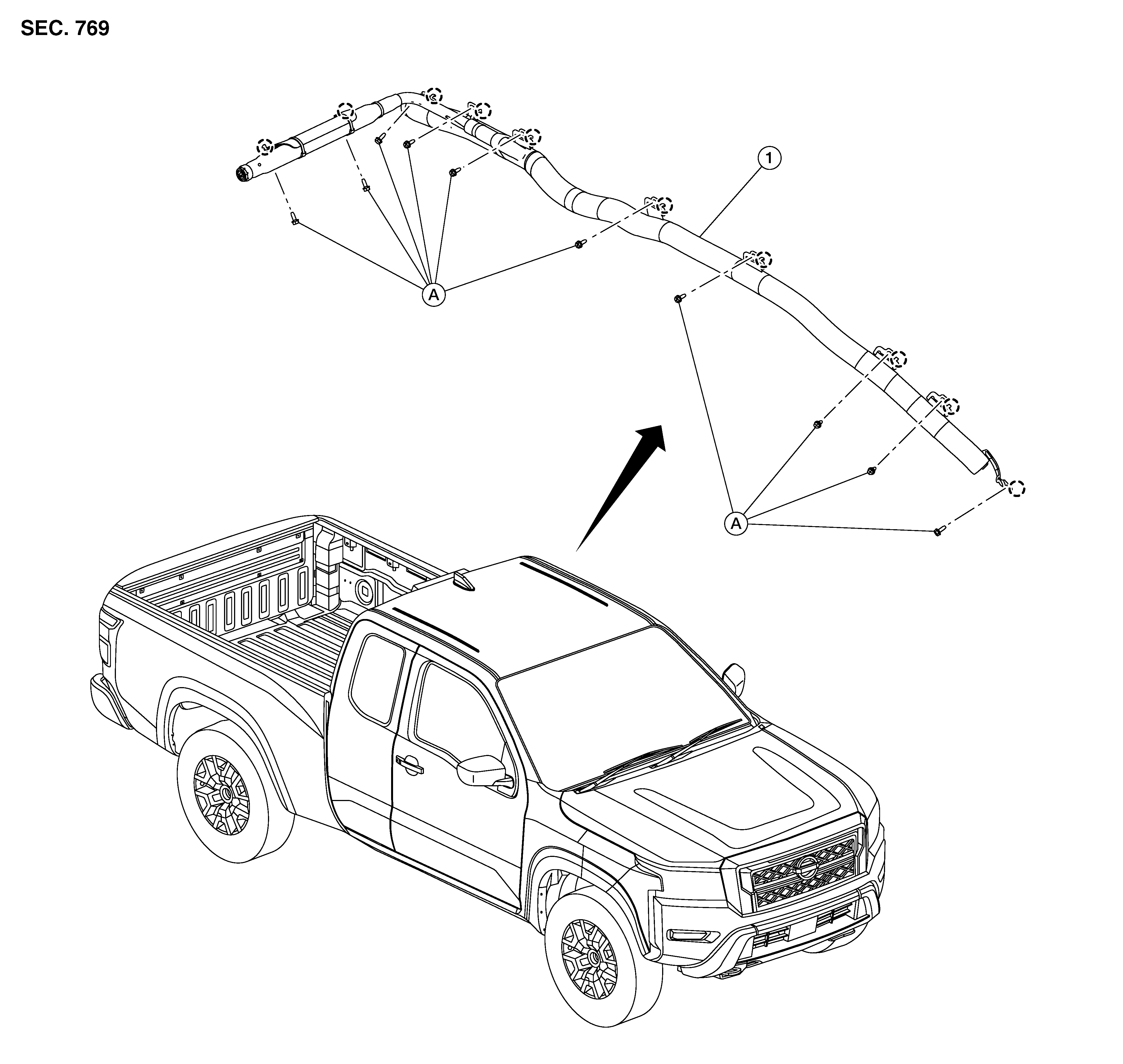

Fig 2: KING CAB ®MODELS
GNSALHIA0804Z-804Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: LH shown, RH similar

1.

Side curtain air bag module

A.

Refer to Removal and Installation .

SYMBOL

Pawl
