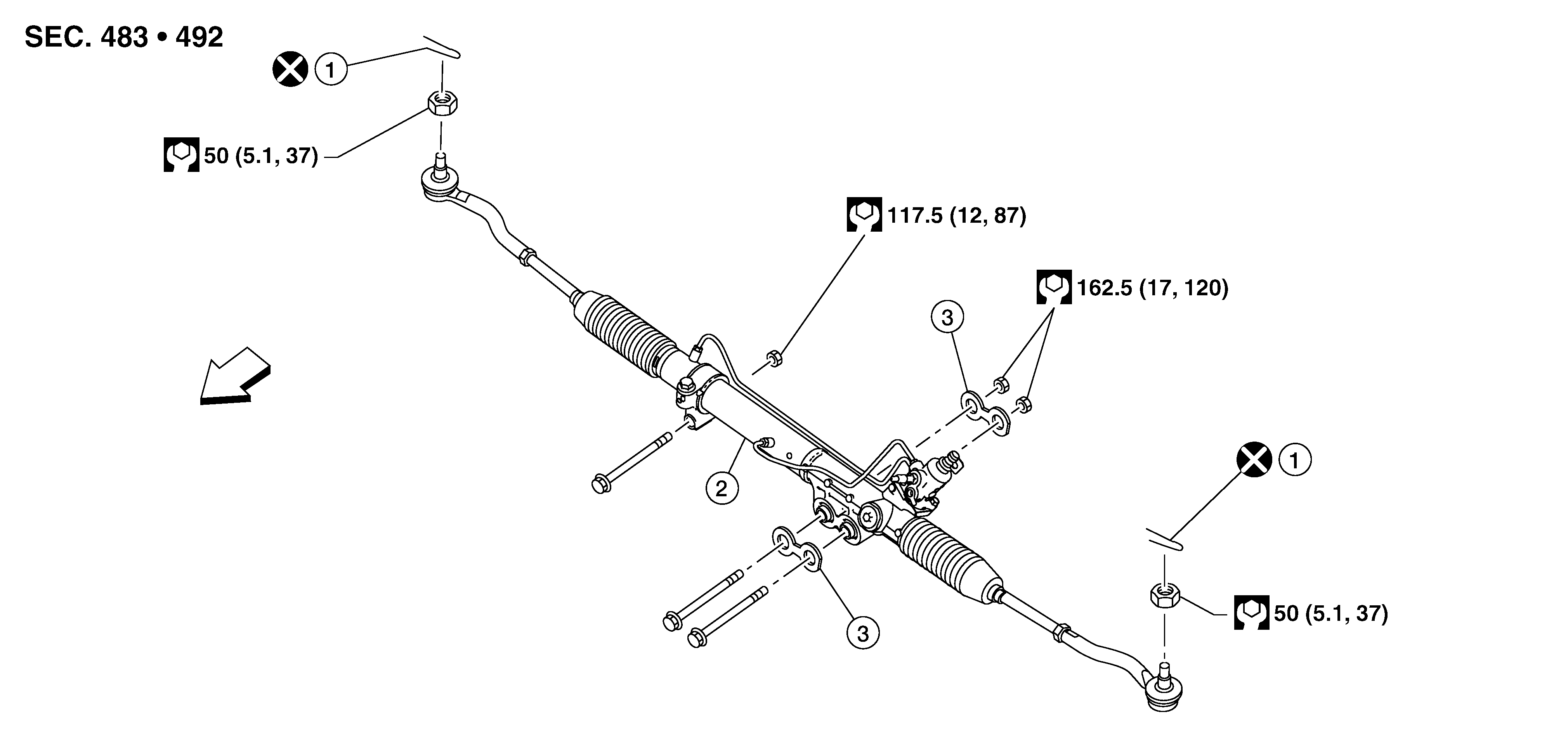

Exploded View

GNSDB123302

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter pin	2.	Power steering gear and linkage assembly	3.	Insulator
	Front
