Exploded View

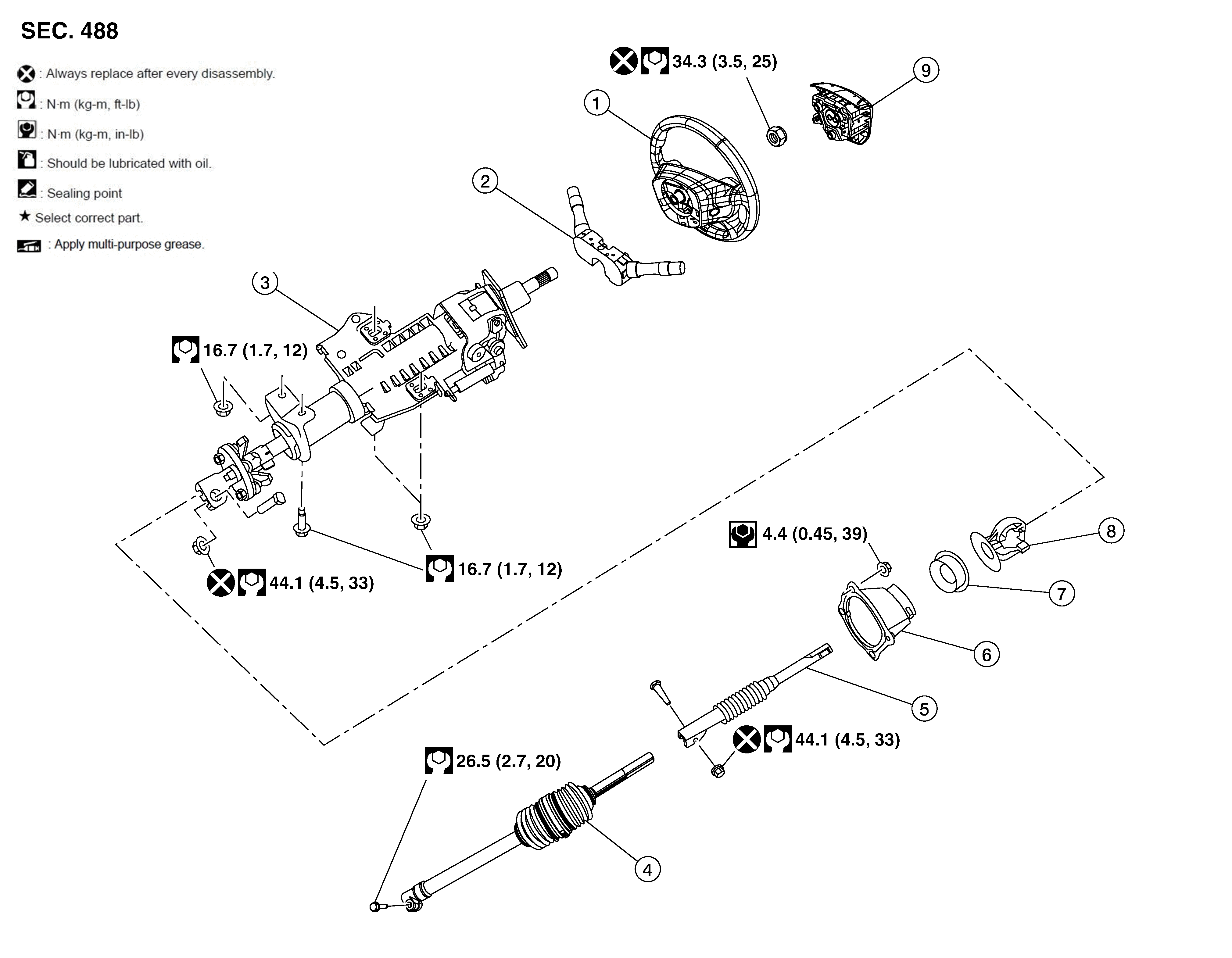

Fig 1: Steering Column With Torque Specifications
GNSAWGIA0159Z-159Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering wheel

2.

Combination switch

3.

Steering column

4.

Lower joint

5.

Upper shaft

6.

Hole cover

7.

Hole cover seal

8.

Collar

9.

Driver air bag module
