Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

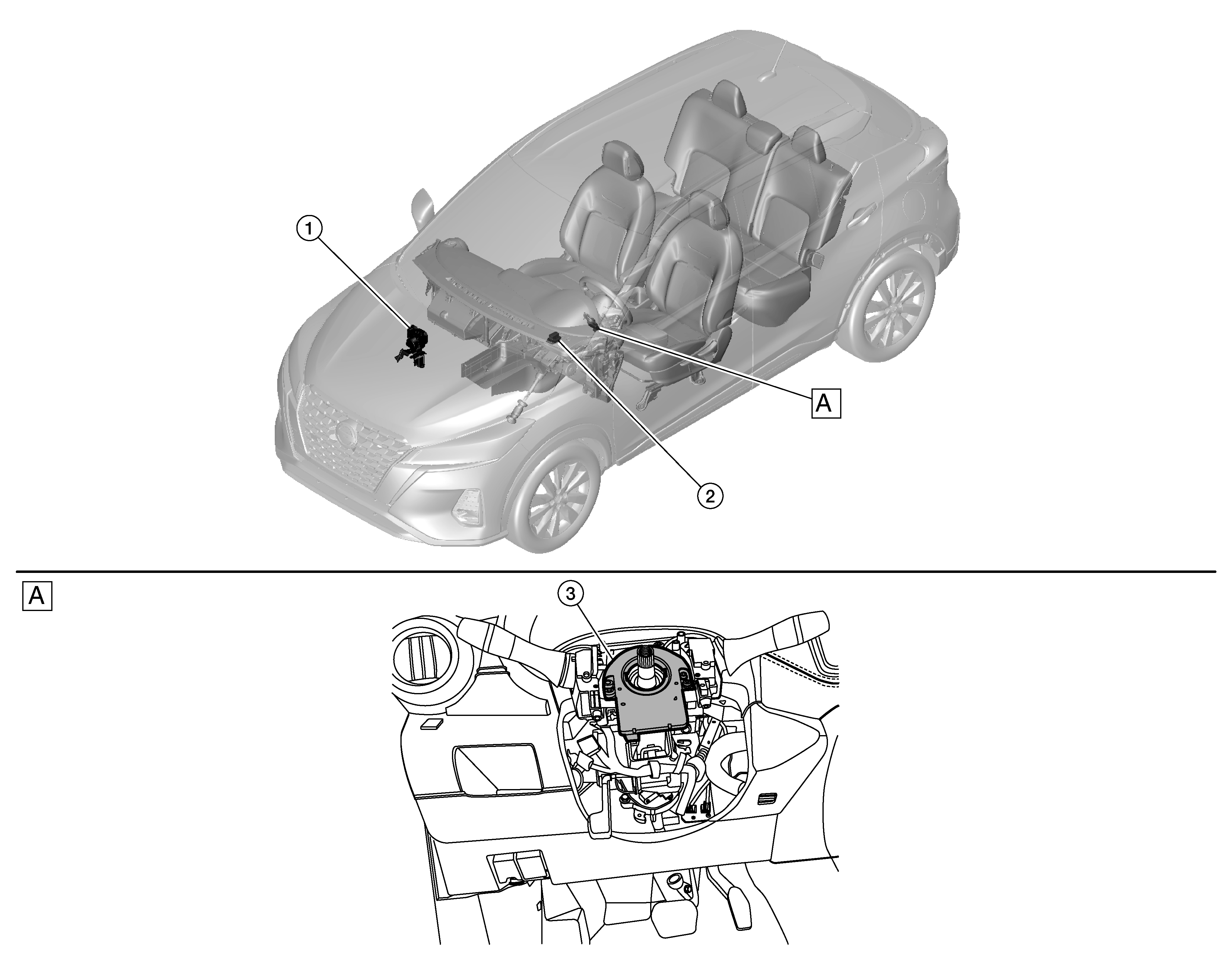

A.	View with steering wheel removed

No.	Component	Function
1.	ABS (Anti-lock Braking System) actuator and electric unit (control unit)	Refer to System Description . Refer to Component Location for detailed component location.
2.	Electric parking brake switch (with automatic brake hold)	Refer to System Description . Refer to Component Location for detailed component location.
3.	Chassis control module (with built in steering angle sensor)	Refer to Chassis Control Module (with built in steering angle sensor) .
