Exploded View

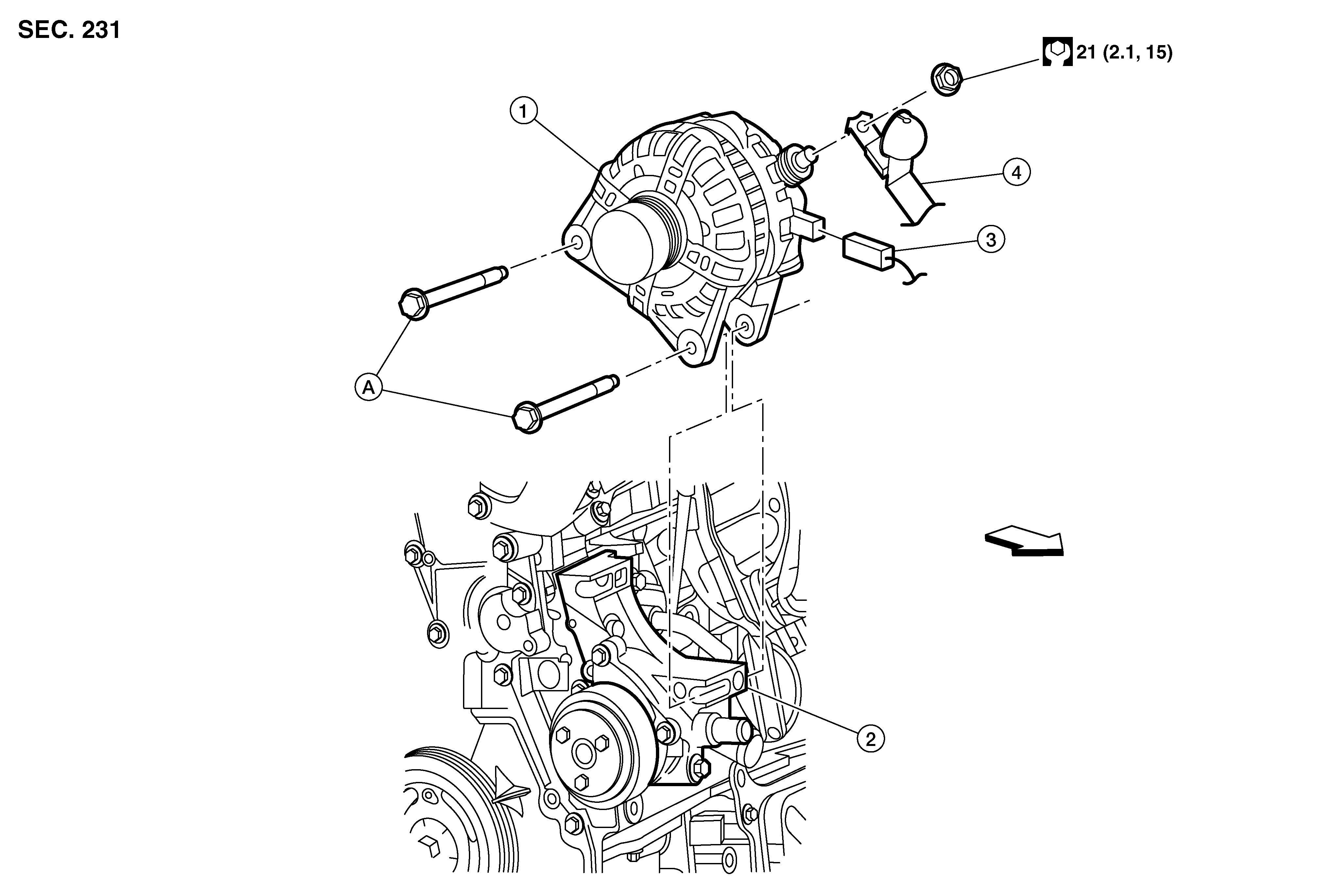

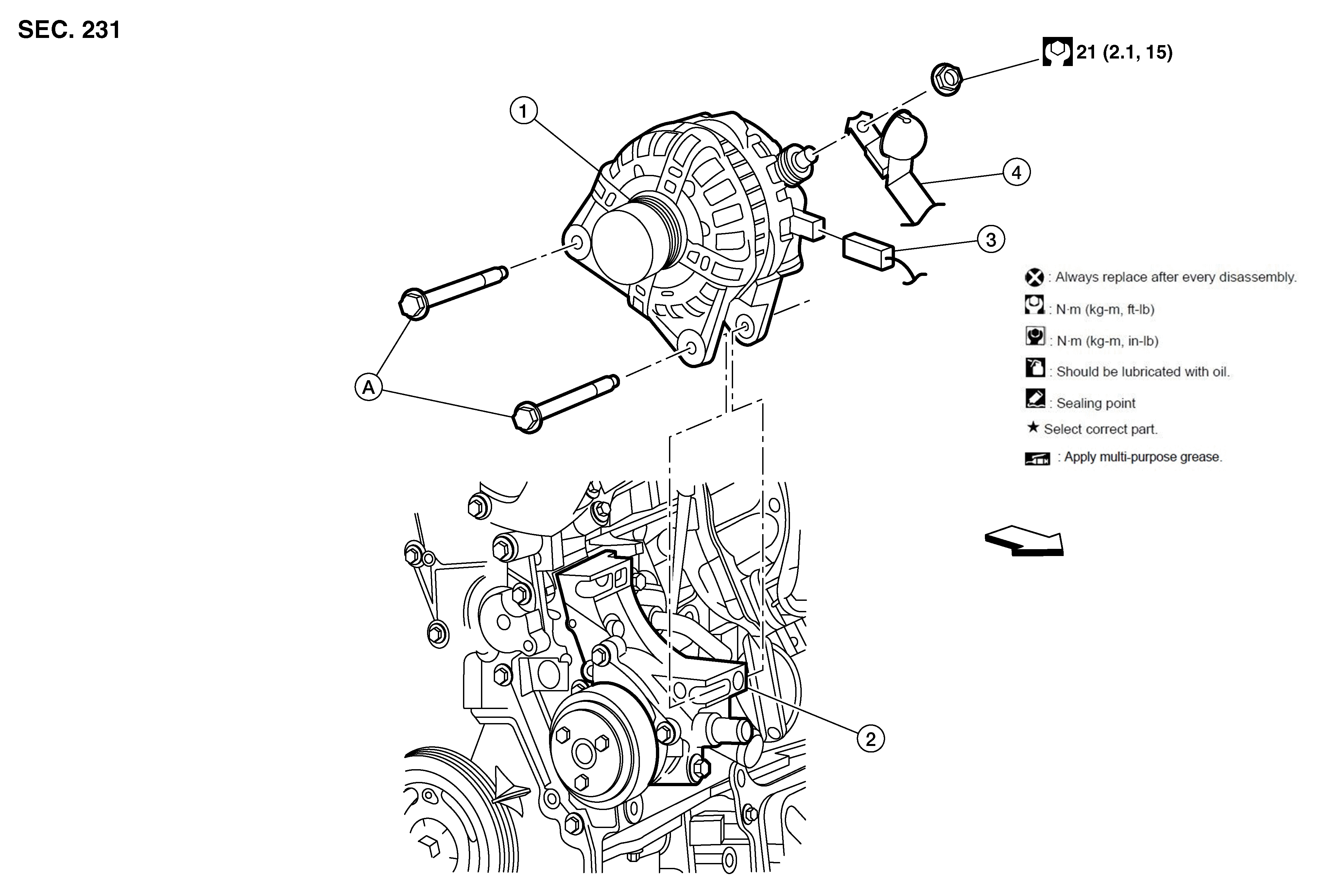

Fig 1: Generator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Generator	2.	Water pump housing	3.	Harness connector
4.	"B" terminal harness	A.	Refer to Removal and Installation .		Front
