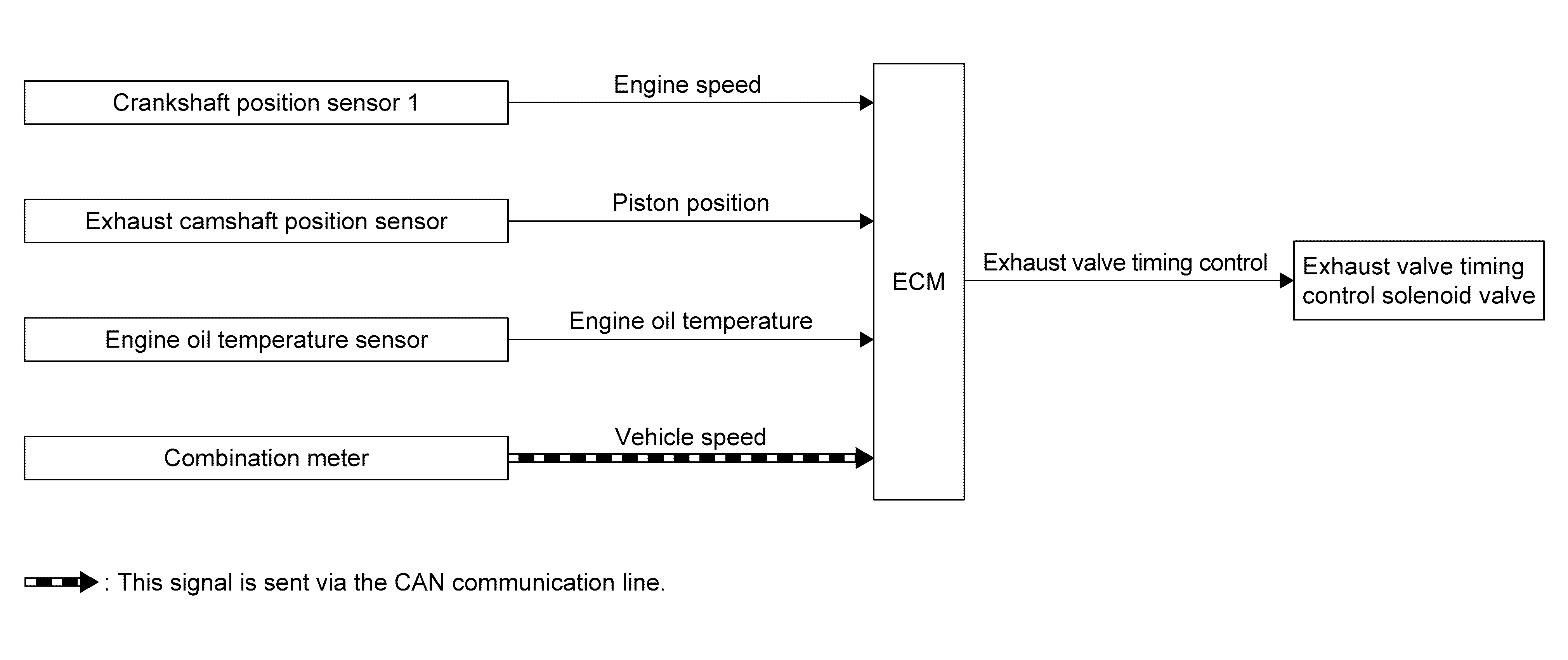

Component parts
|
Function
|
|
Crankshaft position sensor 1
|
Crankshaft Position Sensor 1
|
|
Exhaust camshaft position sensor
|
Exhaust Camshaft Position Sensor
|
|
Engine oil temperature sensor
|
Engine Oil Temperature Sensor
|
|
Combination meter
|
ECM receives the vehicle speed signal via CAN communication.
|
|
ECM
|
ECM (With Barometric Pressure Sensor)
|
|
Exhaust valve timing control solenoid valve
|
Exhaust Valve Timing Control Solenoid Valve
|
