Removal and Installation: Removal

Remove cluster lid C. Refer to Removal and Installation .
Disconnect harness connector from push-button ignition switch.

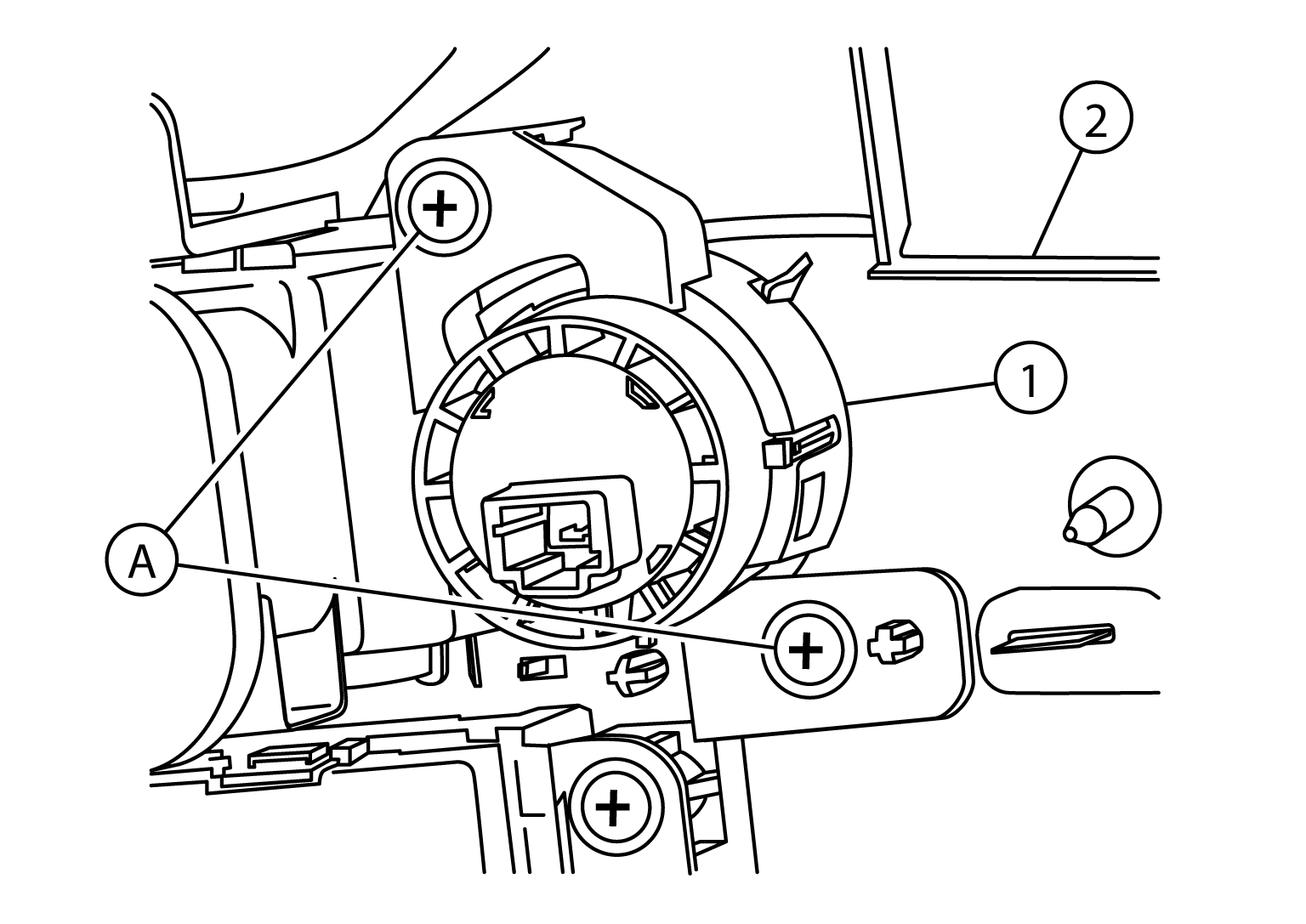

Remove push-button ignition switch bracket (1) screws (A) from instrument finisher B (2).

Courtesy of NISSAN NORTH AMERICA, INC.

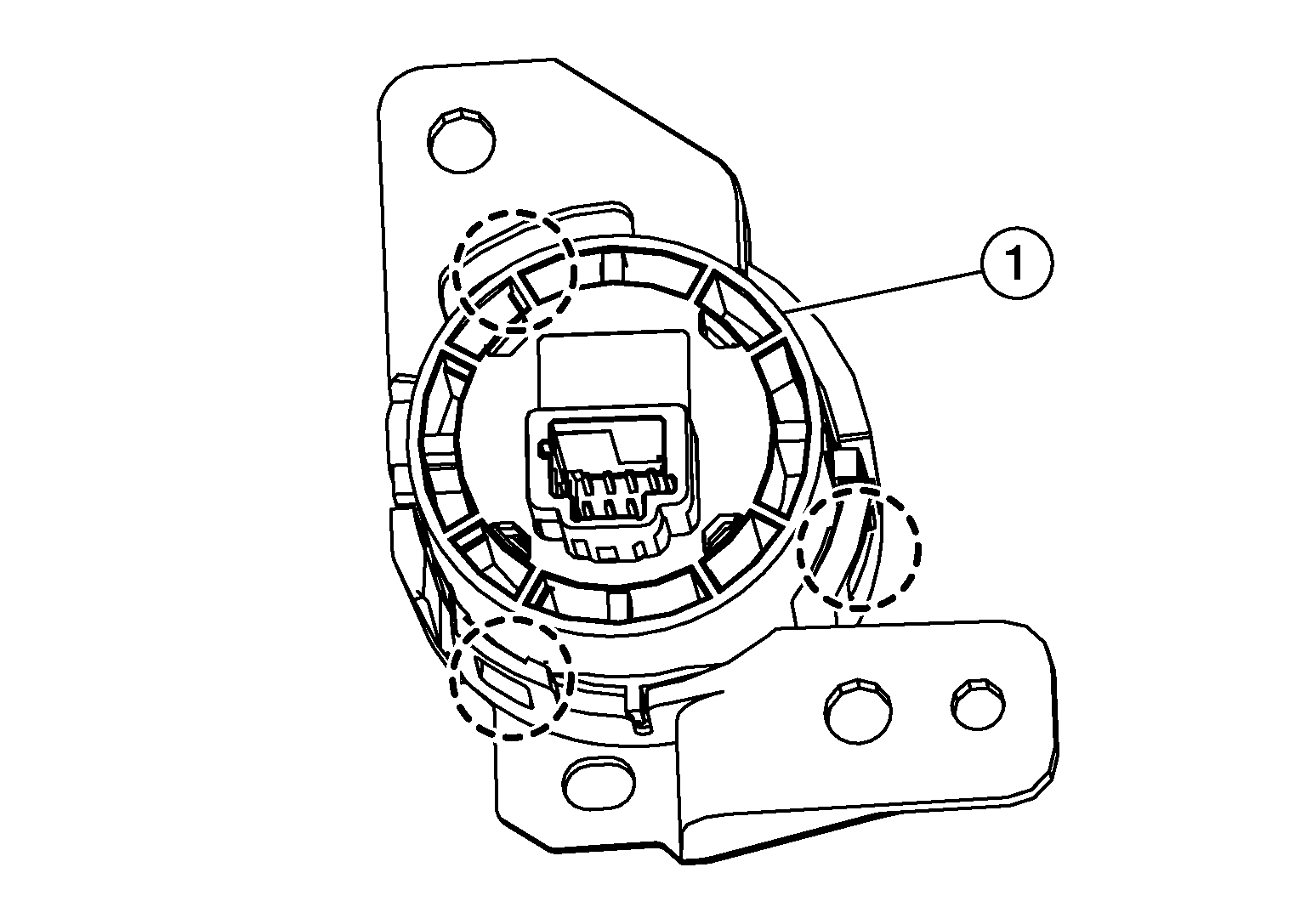

Using a suitable tool, release pawls then remove push-button ignition switch (1) from push-button ignition switch bracket.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
