Exploded View

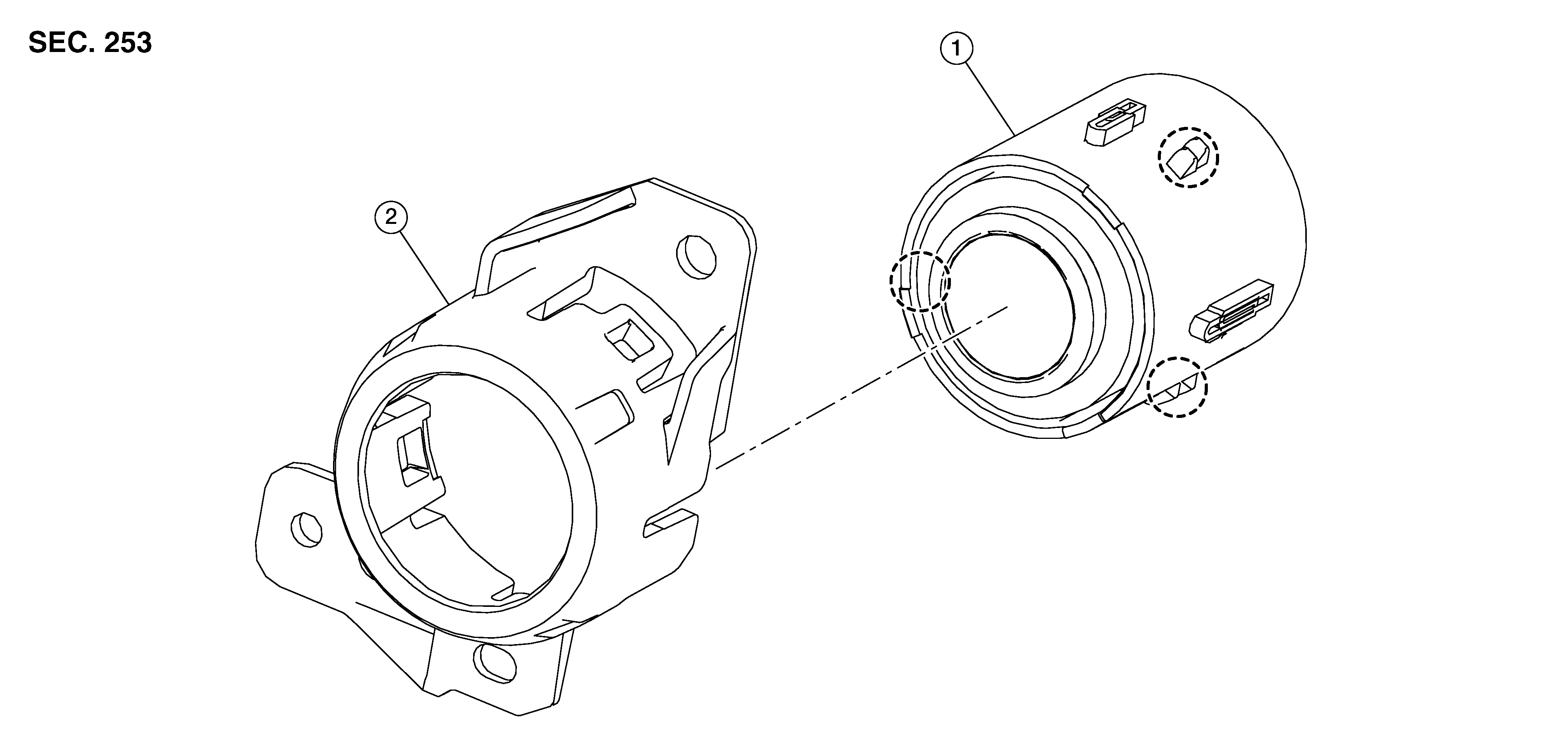

GNSALMIA0506Z-506Courtesy of NISSAN NORTH AMERICA, INC.

1.

Push-button ignition switch

2.

Push-button ignition switch bracket

SYMBOL

: Pawl
