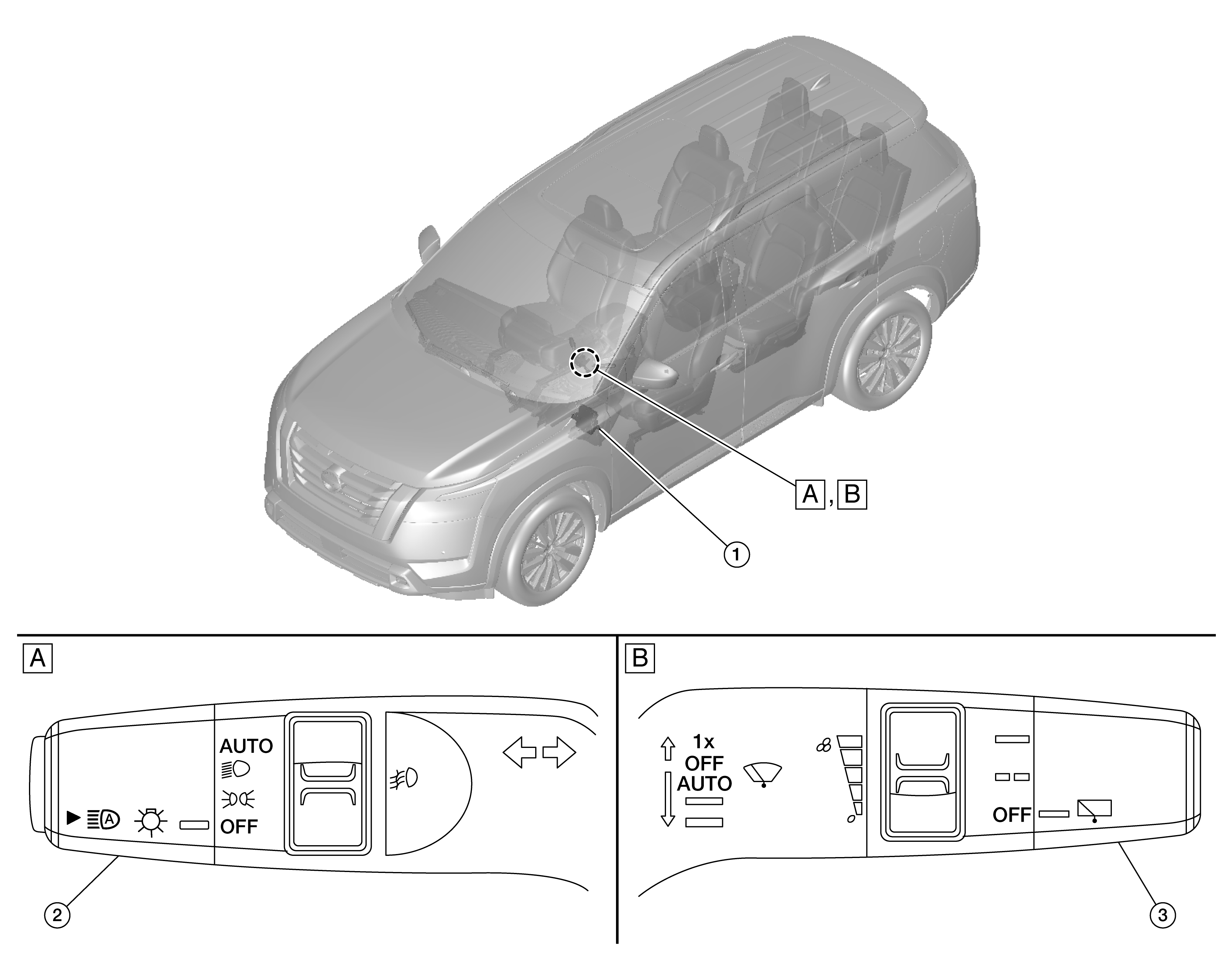

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

Combination switch (lighting and turn signal)

(with HBA and fog lamps shown, without HBA and fog lamps similar)

Combination switch (wiper and washer switch)

(with rain sensing front wipers shown, without rain sensing front wipers similar)

No.	Component	Function
1.	BCM (Body Control Module)	Refer to System Description .
2.	Combination switch (lighting and turn signal)	Refer to System Description .
3.	Combination switch (wiper and washer switch)	Refer to System Description .
