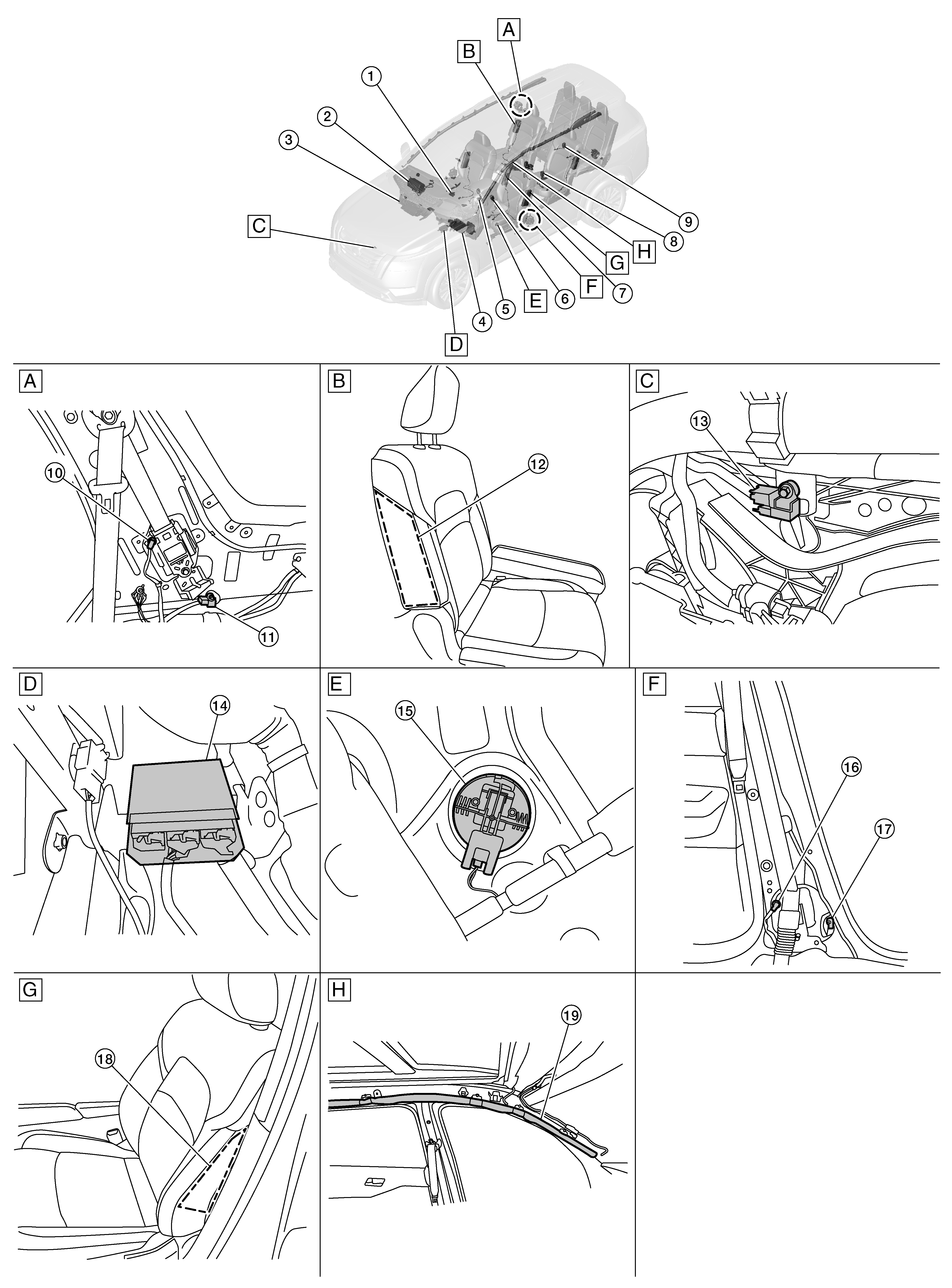

Component Location
|
A. |
Right rear seat area |
B. |
Right rear seat area |
C. |
Core support |
|
D. |
Center console area |
E. |
Driver door |
F. |
B-pillar area |
|
G. |
Driver seat |
H. |
Roof area |
|
No. |
Component |
Function |
|
1. |
Occupant classification system control unit |
Refer to System Description . |
|
2. |
Front passenger air bag module |
Refer to Front Passenger Air Bag Module . |
|
3. |
Knee airbag module RH (if equipped) |
Knee air bag module RH is built into instrument panel assembly. Knee air bag module RH mainly consists of air bag and inflator. Knee air bag RH inflates by breaking lid surface. |
|
4. |
Knee airbag module LH |
Knee air bag module LH is built into instrument panel assembly. Knee air bag module LH mainly consists of air bag and inflator. Knee air bag LH inflates by breaking lid surface. |
|
5. |
Driver air bag module |
Refer to Driver Air Bag Module . |
|
6. |
Seat belt buckle switch LH (RH similar) |
The seat belt buckle switches (Front Row LH/RH, 2ND Row LH/CTR/RH, 3RD Row LH/CTR/RH) provide the seat belt buckle signals to the air bag diagnosis sensor unit and the combination meter. |
|
7. |
Front center air bag module (If equipped) |
Front center air bag module is built into seatback inside of driver seat. Front center air bag module mainly consists of air bag and inflator which inflates air bag. Front center air bag is installed to seatback inside stitch of driver seat indicating that front center air bag is equipped. Front center air bag inflates through seatback inside stitch of drivers seat. |
|
8. |
2nd row seat belt buckle switch LH (CTR and RH similar) |
The seat belt buckle switches (Front Row LH/RH, 2ND Row LH/CTR/RH, 3RD Row LH/CTR/RH) provide the seat belt buckle signals to the air bag diagnosis sensor unit and the combination meter. |
|
9. |
3rd row seat belt buckle switch CTR (LH and RH similar) |
The seat belt buckle switches (Front Row LH/RH, 2ND Row LH/CTR/RH, 3RD Row LH/CTR/RH) provide the seat belt buckle signals to the air bag diagnosis sensor unit and the combination meter. |
|
10. |
Rear RH seat belt pre-tensioner (view with rear side finisher removed) (If equipped) (LH similar) |
Refer to Rear Seat Belt Pre-tensioner . |
|
11. |
Rear side air bag satellite sensor RH (view with rear side finisher removed) (view with luggage side lower finisher LH removed) (RH similar) |
Refer to Rear Side Air Bag Satellite Sensor . |
|
12. |
Rear side air bag module RH (LH similar) |
Refer to Rear Side Air Bag Module . |
|
13. |
Crash zone sensor (view with air intake removed) |
Refer to Crash Zone Sensor . |
|
14. |
Air bag diagnosis sensor unit (view with center console assembly removed) |
Refer to Air Bag Diagnosis Sensor Unit . |
|
15. |
Front door satellite sensor LH (if equipped) (view with front door finisher LH removed) (RH similar) |
Refer to Front Door Satellite Sensor . |
|
16 |
Front LH seat belt pre-tensioner and lap pre-tensioner RH (view with lower center pillar cover removed) (LH similar) |
Refer to Front Seat Belt Pre-tensioner . |
|
17. |
Front side air bag satellite sensor LH (if equipped) (view with lower center pillar cover removed) (RH similar) |
Refer to Front Side Air Bag Satellite Sensor . |
|
18. |
Front side air bag module LH (RH similar) |
Refer to Front Side Air Bag Module . |
|
19. |
LH side curtain air bag module (view with headliner removed) (RH similar) |
Refer to Side Curtain Air Bag Module . |
