Removal and Installation: Removal

CAUTION: When replacing chassis control module, configuration of chassis control module is required. Refer to Description .

Remove the glove box. Refer to Removal and Installation .

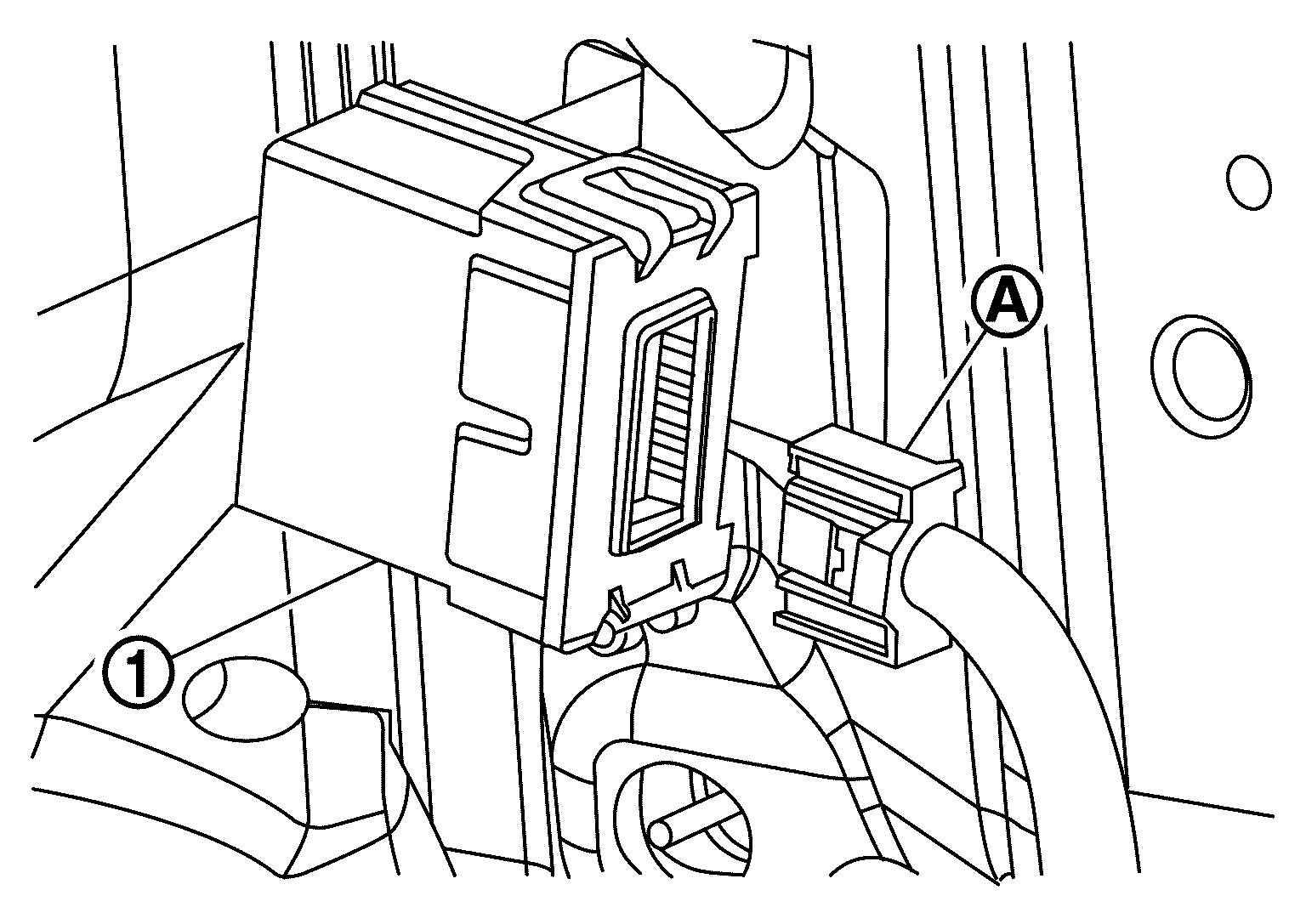

Remove the chassis control module harness connector from chassis control module .

Courtesy of NISSAN NORTH AMERICA, INC.

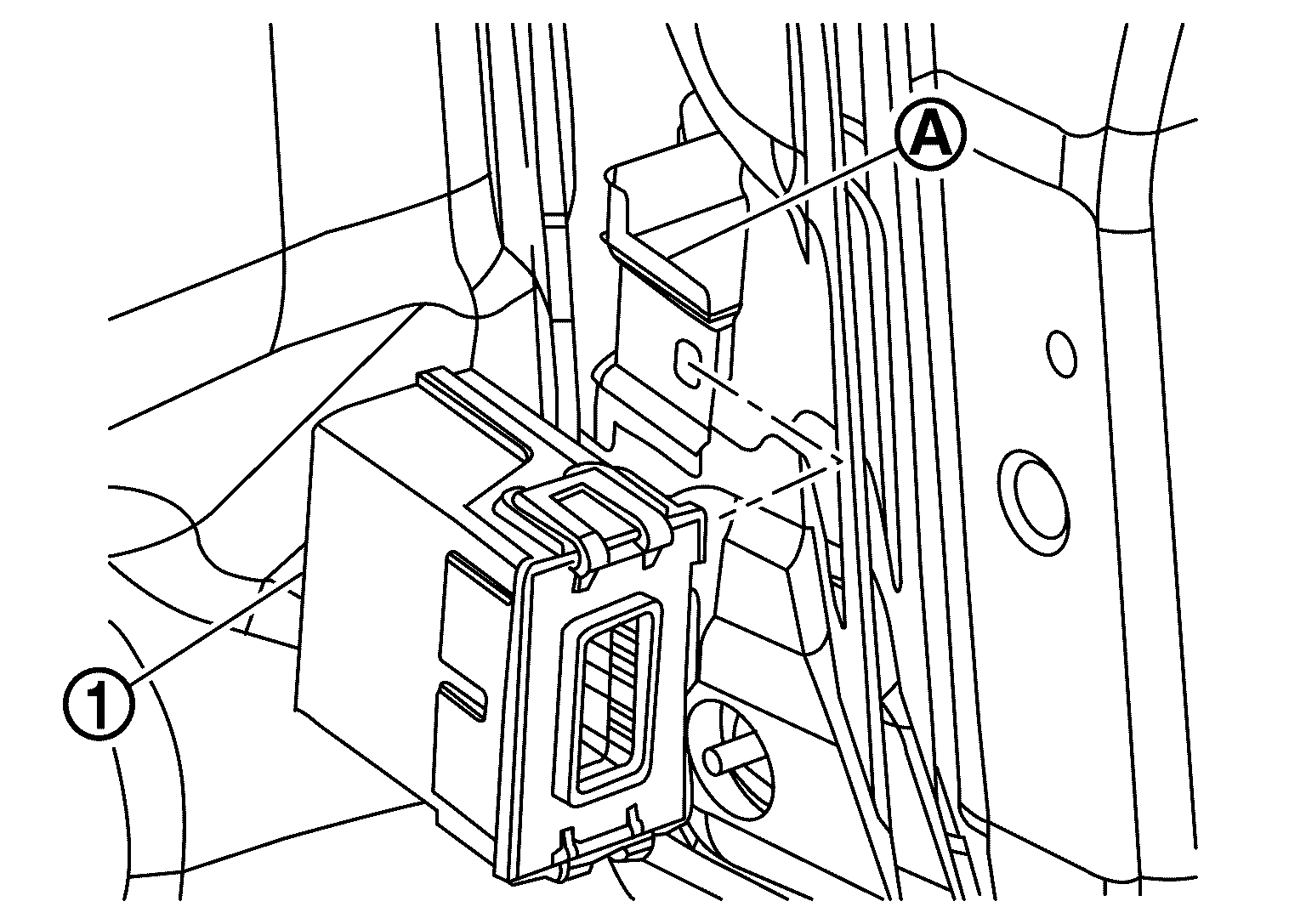

Remove the chassis control module from bracket .

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Never drop the chassis control module.
