Removal

  1. Remove console finisher. Refer to Removal and Installation .
  2. Remove parking brake switch. Refer to Removal and Installation .

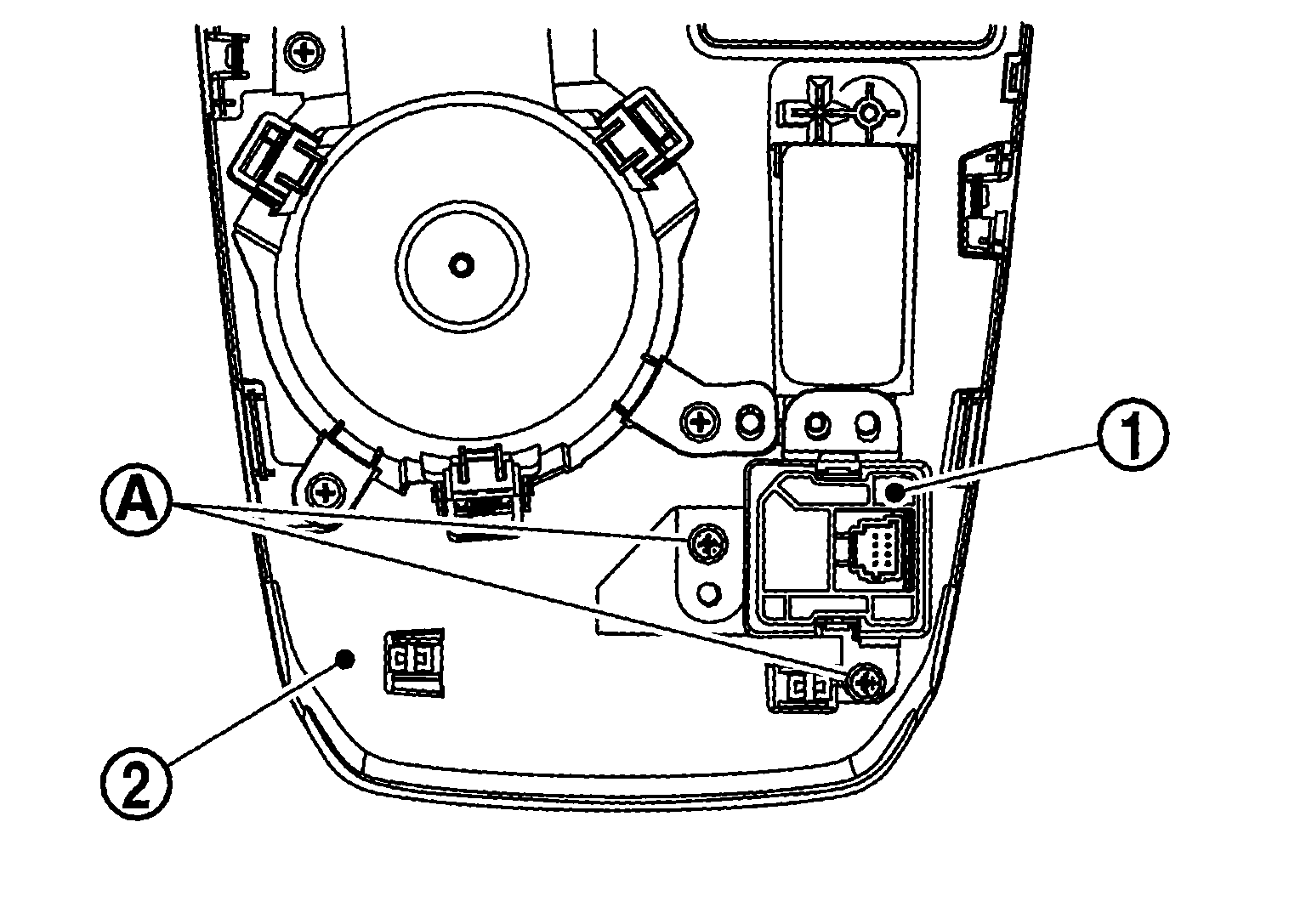

  3. Remove drive mode select switch fixing screws SYMBOL , and then remove drive mode select switch SYMBOL from console finisher SYMBOL . (2WD models)
    GNSILL0312274Courtesy of NISSAN NORTH AMERICA, INC.

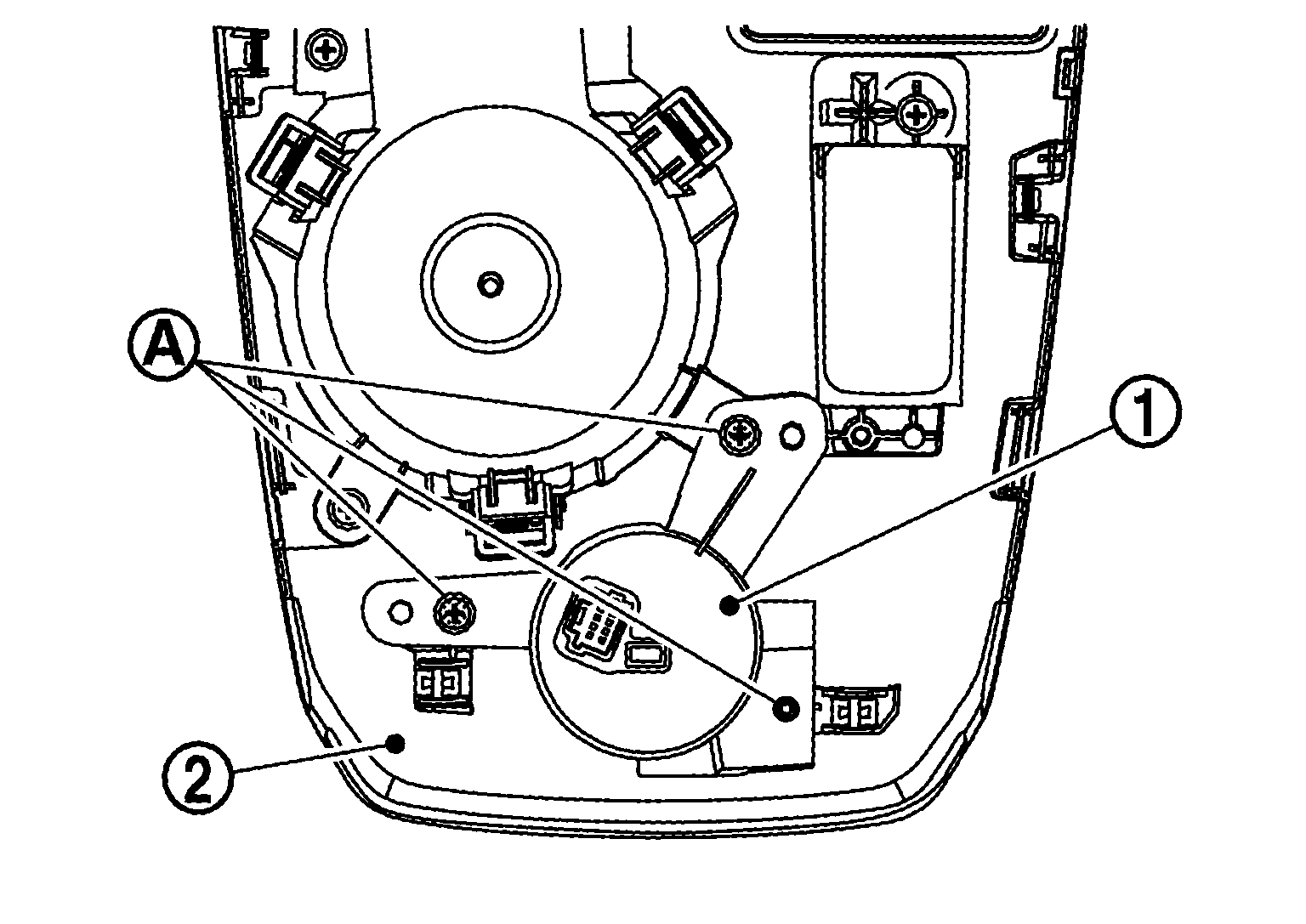

  4. Remove drive mode select switch fixing screws SYMBOL , and then remove drive mode select switch SYMBOL from console finisher SYMBOL . (AWD models)
    GNSILL0312277Courtesy of NISSAN NORTH AMERICA, INC.
