Exploded View

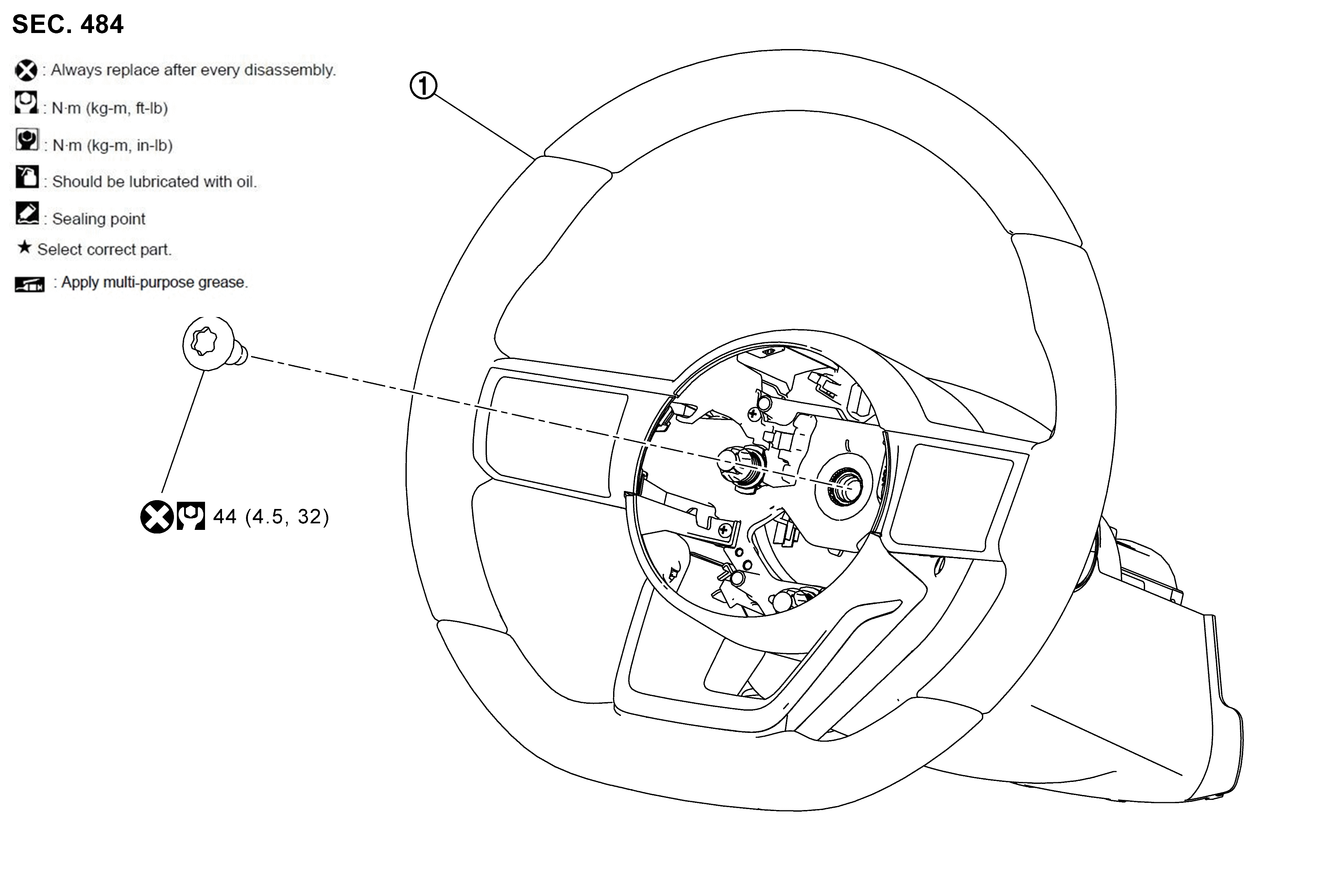

Fig 1: Steering Wheel With Torque Specifications
GNSILL0313240Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Steering wheel

SYMBOL

: N.m (kg-m, ft-lb)

SYMBOL

: Always replace after every disassembly.
