System Description
›
System
›
Combination Switch Reading System
›
System Description
›

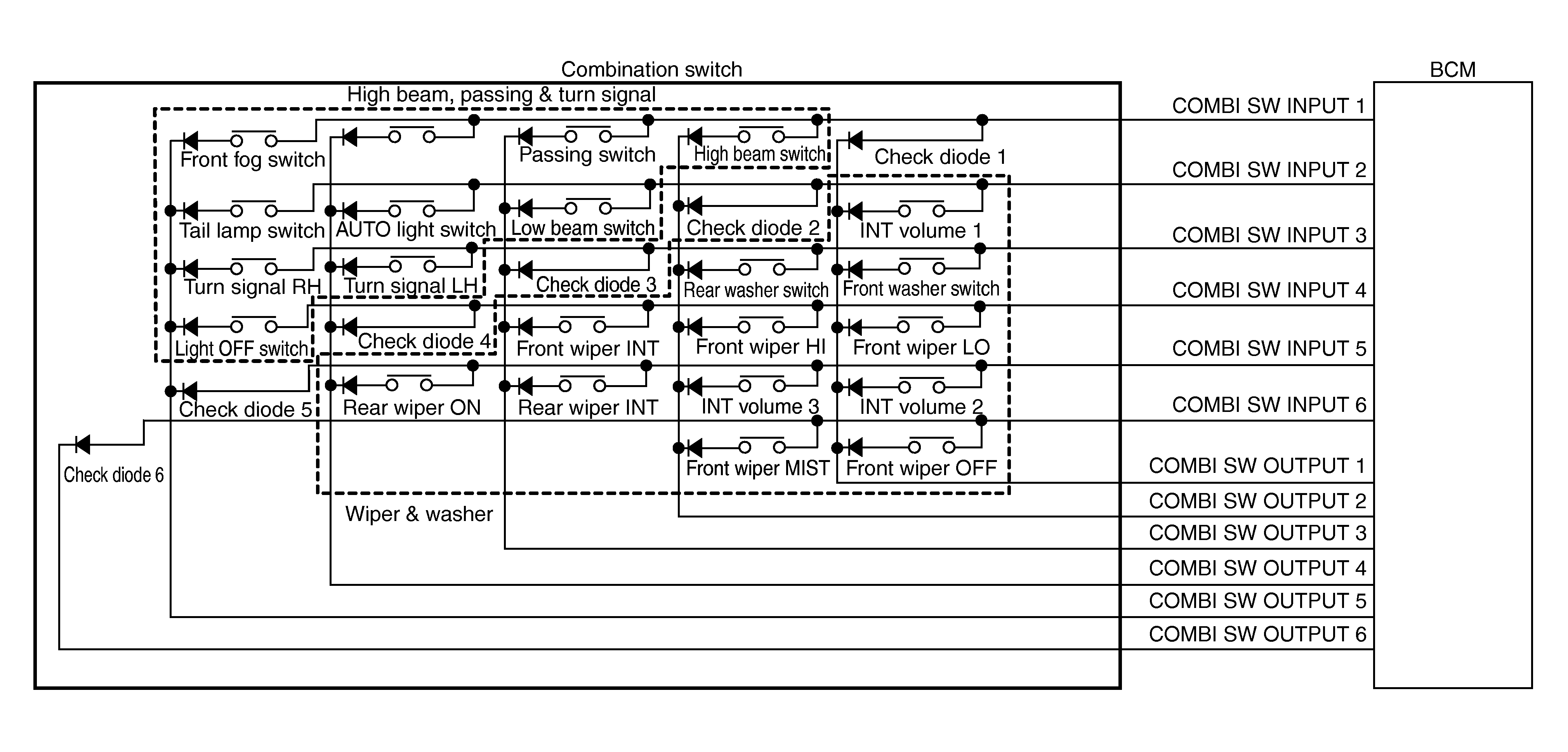

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
AUTO light switch is not applicable. (For Canada models)
Courtesy of NISSAN NORTH AMERICA, INC.
