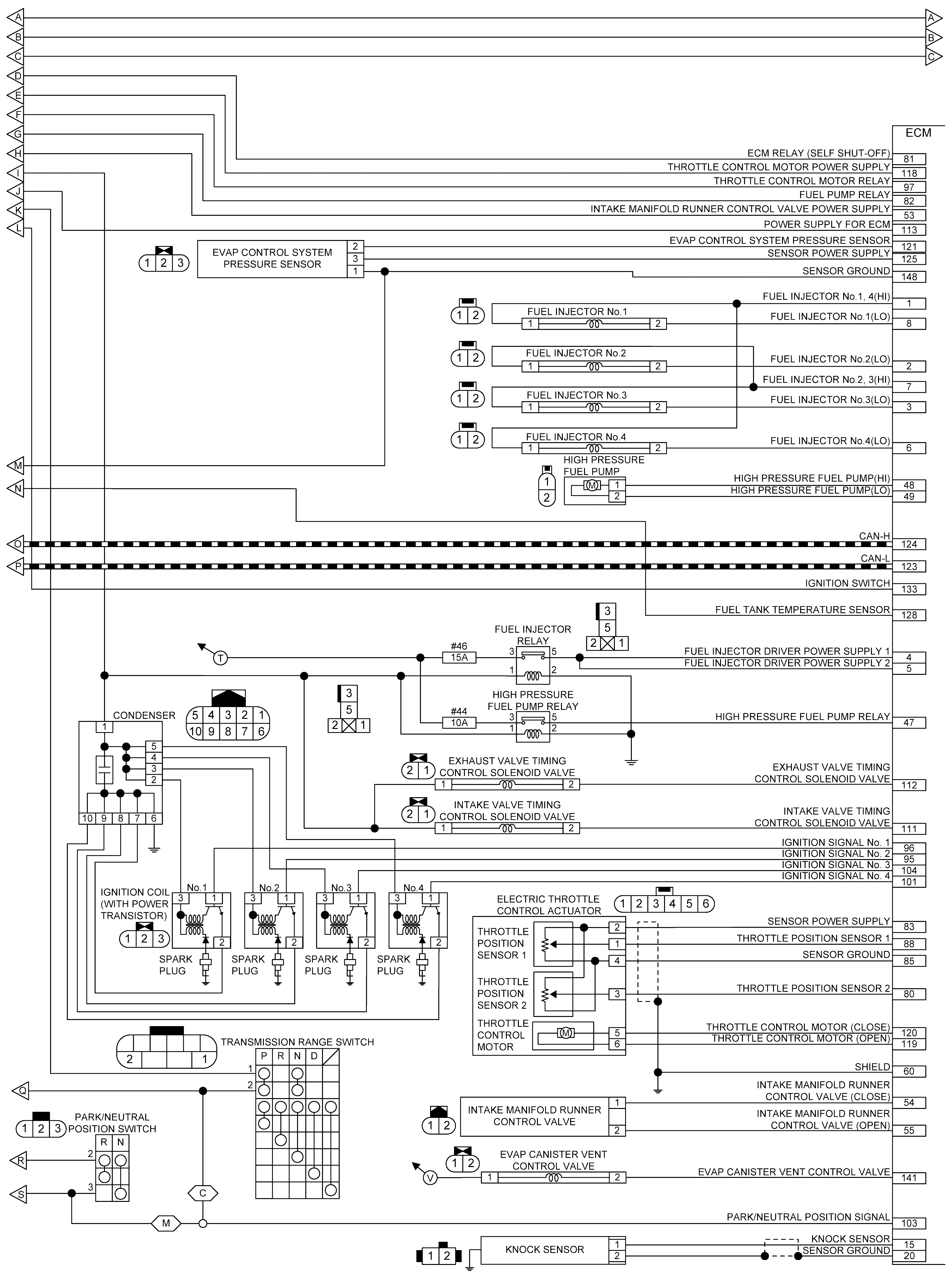

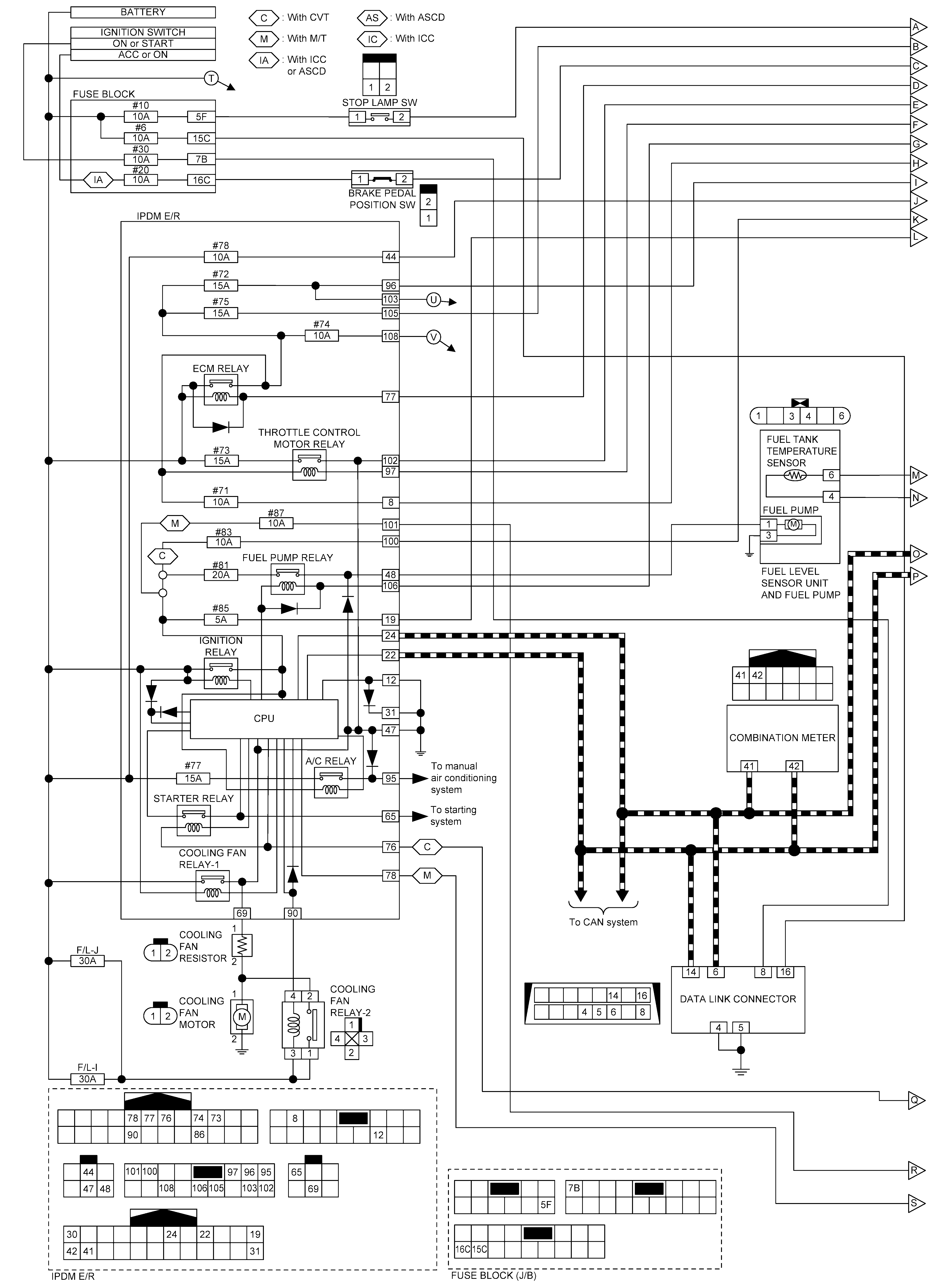

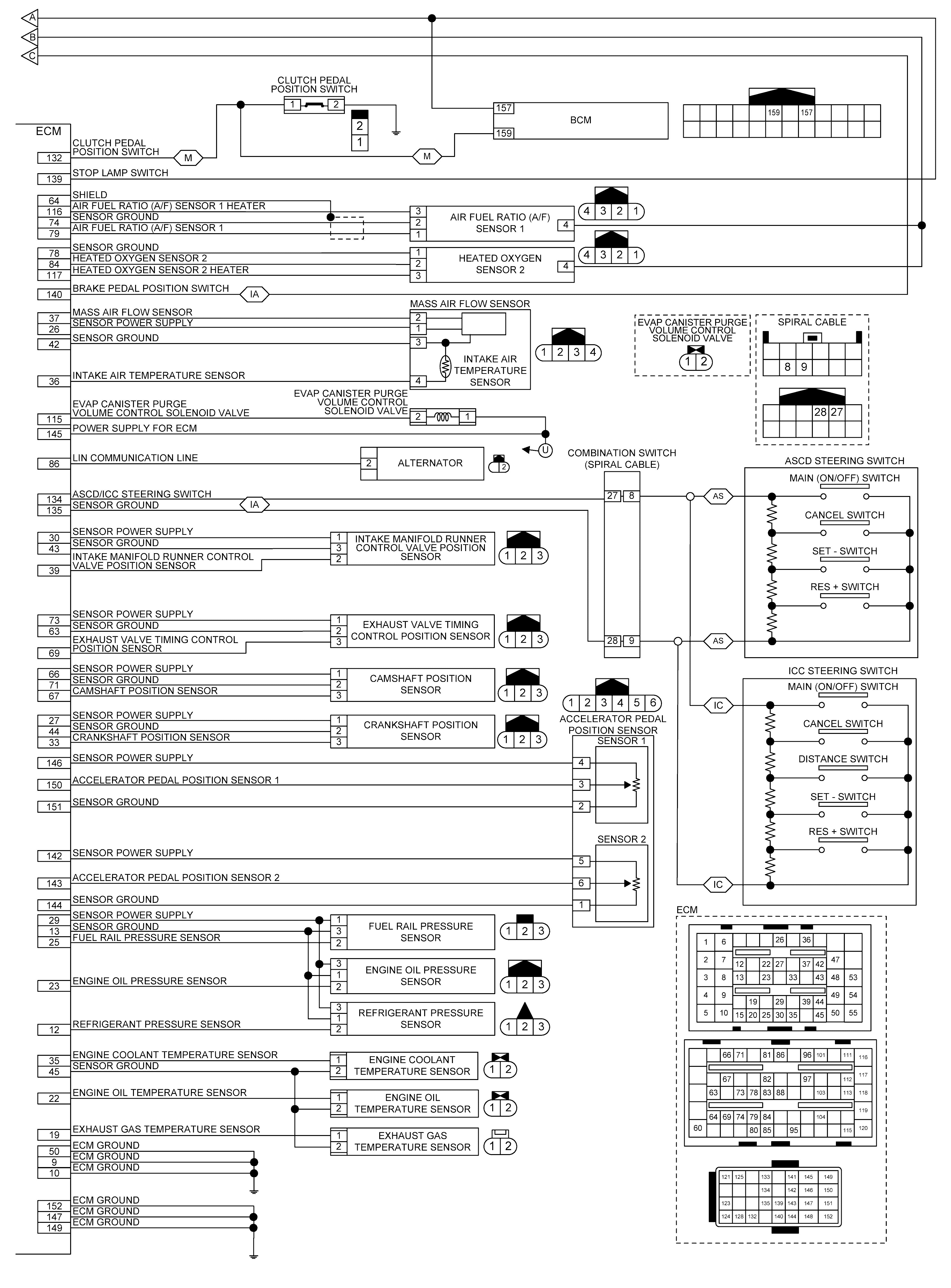

Home › Nissan-Datsun › 2022 › Rogue Sport SL, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Diagnostics) (1 Of 2) › Description › System › Engine Control System › Circuit Diagram
