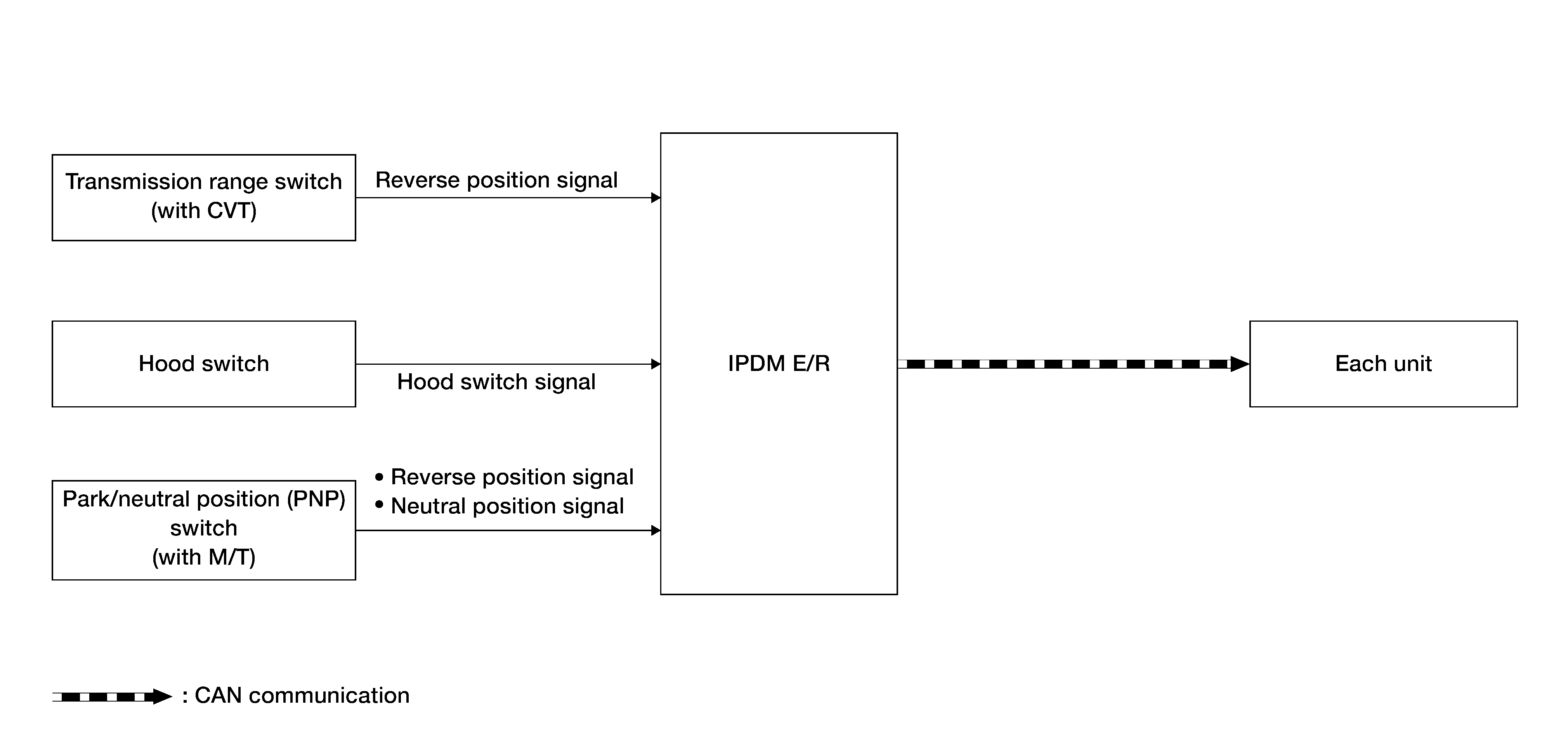

System Diagram
Description
|
Component |
Function |
|
Transmission range switch 1 |
Inputs the reverse position signal to the IPDM E/R. |
|
Park/neutral (PNP) switch. 2 |
Inputs the reverse position signal to the IPDM E/R. |
|
Hood switch |
Detects the hood condition (open or close), and inputs the hood switch signal to the IPDM E/R. |
|
IPDM E/R |
The IPDM E/R has the signal transmission function that transmits each input signal to each unit. |
