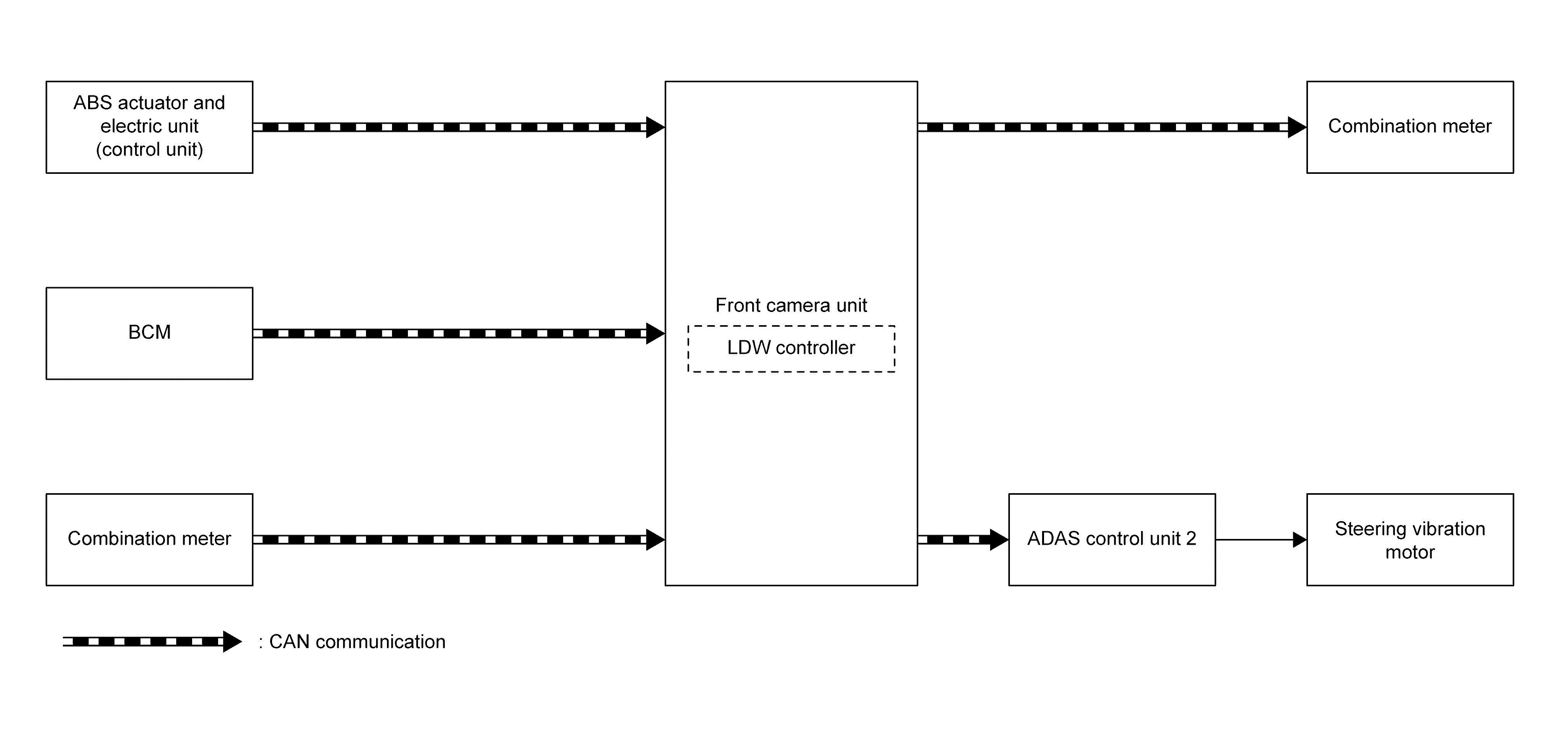

System Diagram
WARNING: This page is about a different car, the 2021 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
|
Component |
Description |
|
ABS actuator and electric unit (control unit) |
|
|
BCM |
|
|
Front camera unit |
|
|
ADAS control unit 2 |
|
|
Combination meter |
Combination Meter (4.2 inch Information Display) or Combination Meter (7 inch Information Display) |
|
Steering vibration motor |
