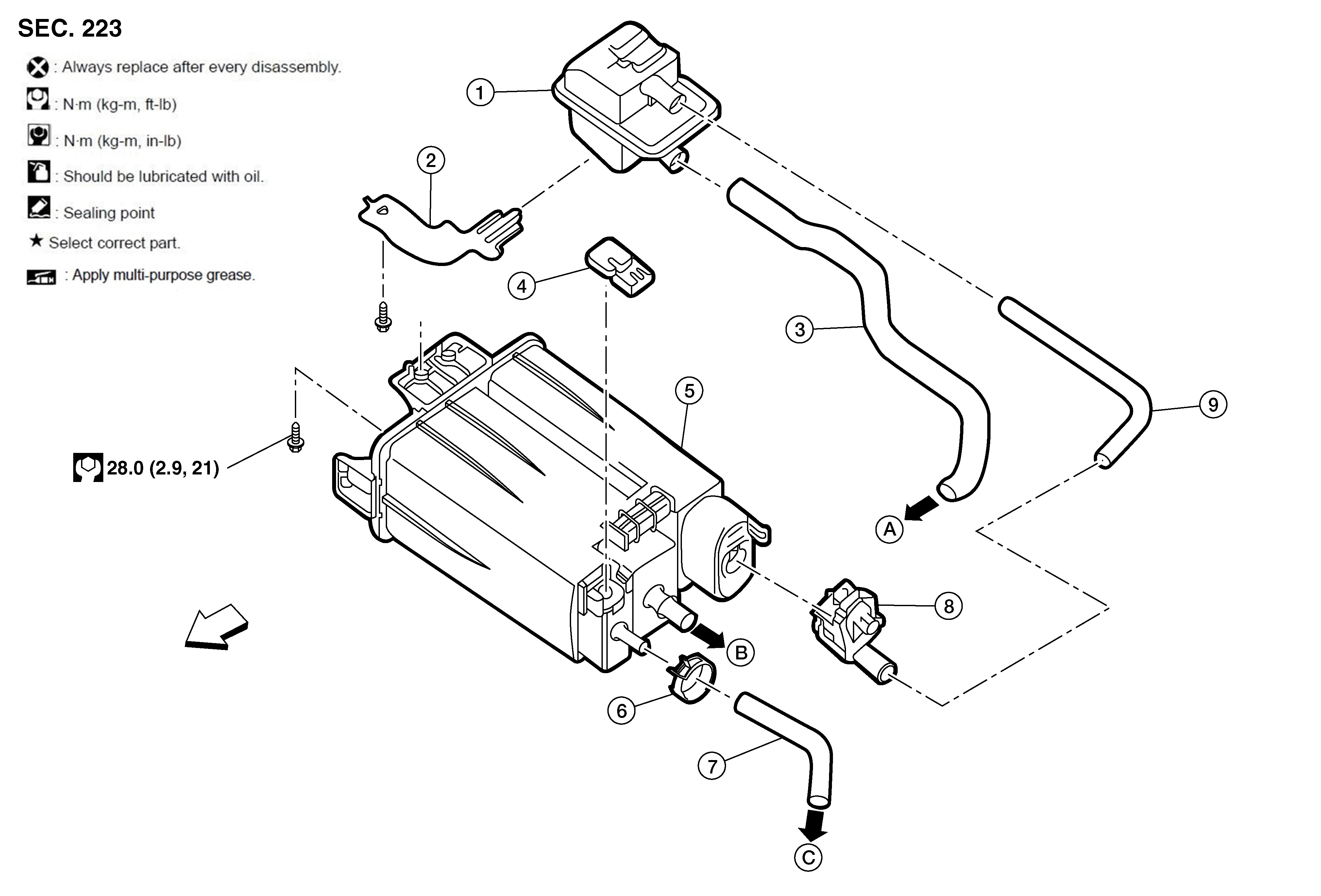

XD Models

1.

EVAP canister filter

2.

EVAP filter bracket

3.

EVAP canister filter vent hose

4.

EVAP control system pressure sensor (with O-ring)

5.

EVAP canister

6.

Clamp

7.

EVAP canister purge hose

8.

EVAP canister vent control valve

9.

EVAP canister vent control valve hose

A.

To vehicle body

B.

To fuel tank. Refer to Exploded View .

C.

To EVAP tube. Refer to Exploded View .

Front
